| Place of Origin: | China |
| Brand Name: | TOB PTFE Self-Lubrication Bearings |
| Certification: | ISO 16949 |
| Minimum Order Quantity: | negotiated |
|---|---|
| Price: | negotiated |
| Packaging Details: | Cartons and Pallets |
| Delivery Time: | negotiated |
| Payment Terms: | T/T |
| Supply Ability: | negotiated |
| Material: | Bronze Mesh Shell + Compounded PTFE Tape | Load Capacity: | 100N/mm2 |
|---|---|---|---|
| Friction Coef. μ: | 0.05~0.20 | Temperature Limit: | -40~280℃ |
| Max PV Value Limit: | 1.6N/mm2·m/s | Size: | Customized Size,Customized Request, All Standard, As Per Customer's Request |
| Lubricating: | Oilless | Packaging Details: | Export Standard Packing |
| High Light: | FR Flexible Graphite Plugged Bearing,FR Flexible Self Lubricating Bearings,PTFE Mixture Self Lubricating Bearings |
||

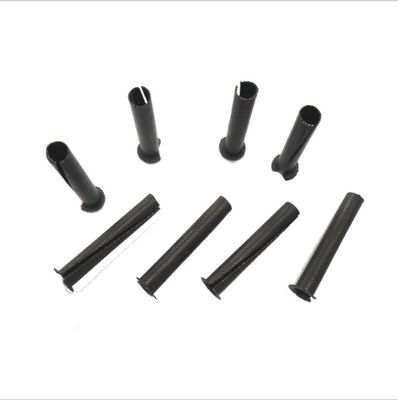

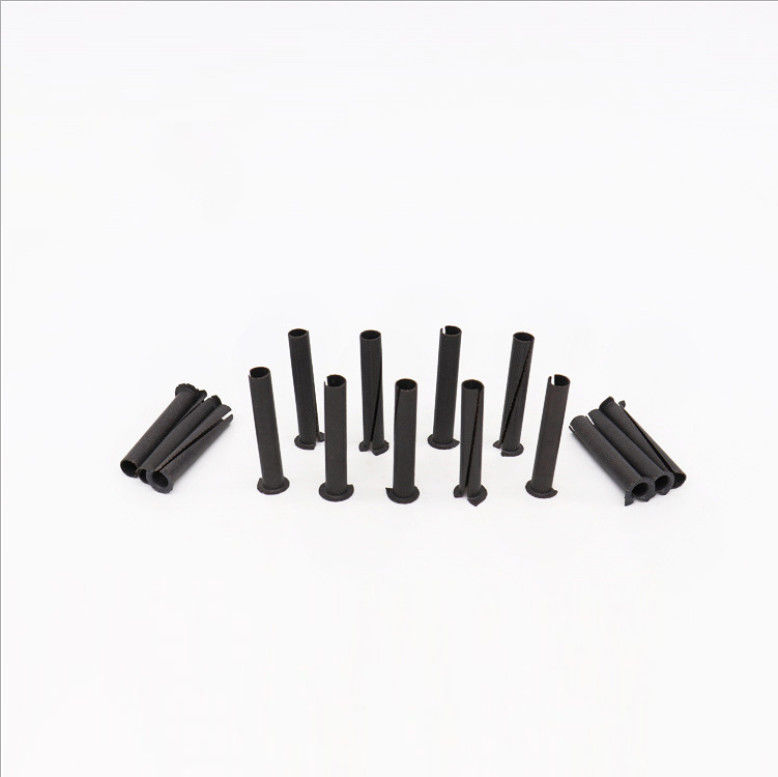

FR Flexible Self-Lubricating Bearing Bronze Wire Mesh As Frame And Cover The Mixture Of PTFE
TOBW- Oilless Rust-proof thrust washer bearings, dry slide washer, graphite plugged bushing
FR is a composite material, it is made of bronze wire mesh as frame and cover the mixture of PTFE and other anti-wear material by special sintering. It is of low friction coefficient and good performance in anti-wear. Due to its flexibility, it can act as segregation film between two steel friction surfaces, in this application, the superior performance of no clearance, no noise, no oil lubrication, no maintenance and no pollution will be appeared.
At present, it is widely used in textile machines, spherical bearings, automobile door hinge and so on.
Load capacity: 100N/mm2
Friction Coef. μ: 0.05~0.20
Temperature limit: -40~280℃
Speed limit: 1.0m/s
| Performance index | Data | |
| Max Load Capacity | Static load | 80N/mm2 |
| Dynamic load | 40N/mm2 | |
| Max Sliding Speed | Dry friction | 0.5m/s |
| Oil lubrication | 2.5m/s | |
| Max PV Value Limit | 1.6N/mm2·m/s | |
| Friction coefficient(μ) | 0.03~0.20 | |
| Working temperature | -50℃~+250℃ | |
About Us
FAQ
1.Can you give me discount?
Yes,of course.We will quote you lowest price at the beginning.
2.Will you send me free samples?
Yes.We can make some samples to you, please contact us for details.
3.How to get an accurate quotation?
A: If you are interested in our products, please provide us with below information:
♦ Drawings, photos or samples of products.
♦ Detailed sizes of products.
♦ Material of products.
♦ Surface treatment of products.
♦ Ordinary purchasing quantity.
4. What about the delivery time?
Normally the delivery time is about 20 Days, according to the quantity.
