Flanging Sleeve Shoulder Type Oil Free Bushing Self Lubricating

Product Details:

Place of Origin:	MADE IN CHINA
Brand Name:	TOB Brass Bronze Bearings
Certification:	ISO 16949

Payment & Shipping Terms:

Minimum Order Quantity:	Standard Size Bushing No Minimum Order Quantity
Price:	negotiated
Packaging Details:	Standard Export Cartons or Pallets
Delivery Time:	negotiated
Payment Terms:	T/T, Western Union
Supply Ability:	negotiated

Contact Now

Detailed Product Description

Supply Ability:	Plug Graphite Bearings, China, Manufacturers, Suppliers, Factory, Wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing	Application:	Engineering Machinery，mould Bronze Bushing
Certification:	DIN G-CuSn 7 ZnPb	Packaging Details:	STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
Bushing Material:	High Tensile With Graphite	Bushing Application:	Parts Repair And Fabrication Services (Heavy Equipments, Automotive, Shipping Industry, Machinery, Etc)
High Light:	Sleeve Type Oil Free Bushing , Sleeve Type Oilless Bushings , Oil Free Bushing Self Lubricating

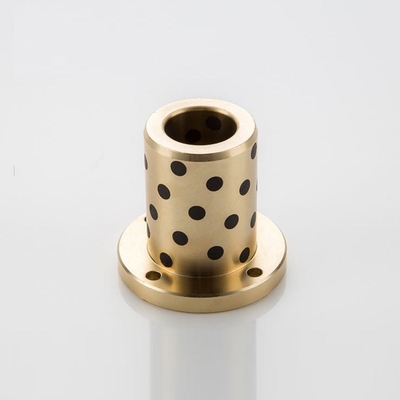

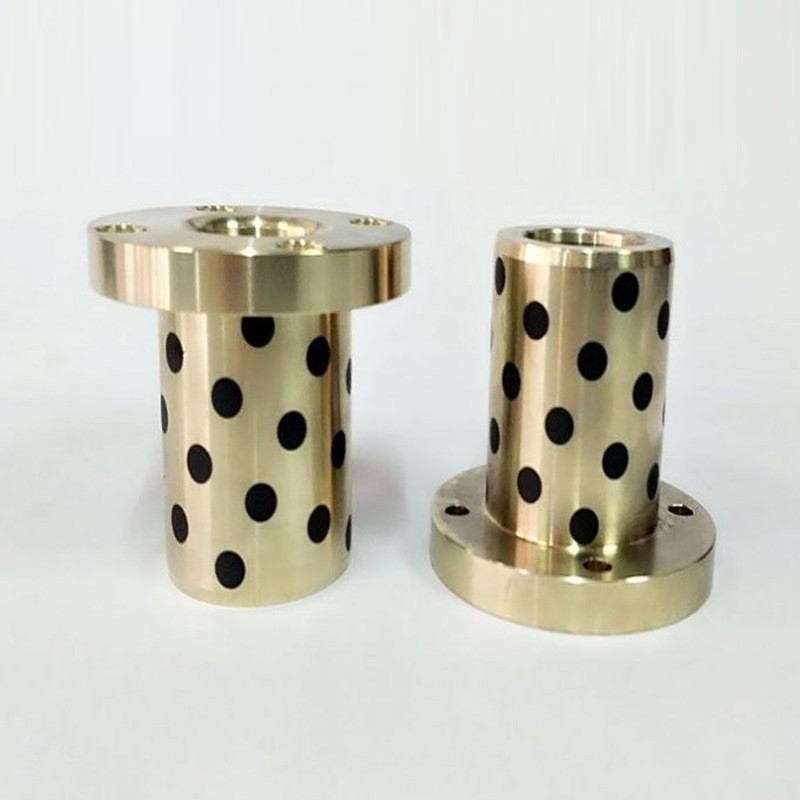

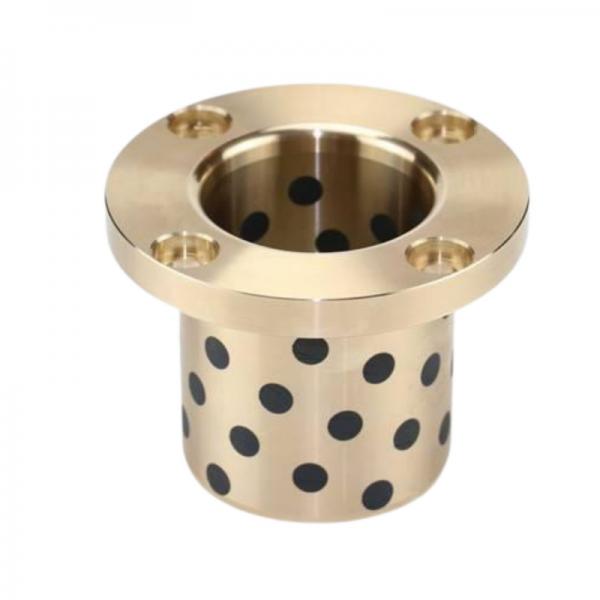

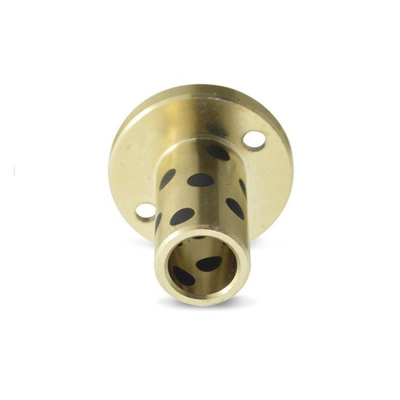

Flanging Sleeve Shoulder Type Oil Free Bushing Self Lubricating

JFB Self-Lubricating Flanging Sleeve/Shoulder Type Oil-Free Bushing

Bronze Oilless Bush MPFZ40/45/50 Equivalent

Solid Lubricant Inlaid Bearing,JFB self-lubricating flanging sleeve/shoulder type oil-free bushing wear-resistant guide sleeve graphite copper sleeve MPFZ40/45/50, Oilless Bronze bushing with graphite

Oilless Bushings Equivalent Bronze bearings, Flange Bushings

65*5/40*50*20【MPFZ4020】
65*5/40*50*25【MPFZ4025】
65*5/40*50*30【MPFZ4030】
65*5/40*50*35【MPFZ4035】
65*5/40*50*40【MPFZ4040】
65*5/40*50*45【MPFZ4045】
65*5/40*50*50【MPFZ4050】
65*5/40*50*60【MPFZ4060】
70*5/45*55*30【MPFZ4530】
70*5/45*55*35【MPFZ4535】
70*5/45*55*40【MPFZ4540】
70*5/45*55*50【MPFZ4550】
70*5/45*55*60【MPFZ4560】
75*5/50*60*30【MPFZ5030】
75*5/50*60*35【MPFZ5035】
75*5/50*60*40【MPFZ5040】
75*5/50*60*50【MPFZ5050】
75*5/50*60*60【MPFZ5060】
Introduction of material

1. The solid casting bronze material is ideally suited for highly demanding applications in tough environments. We offer a standard assortment of plain sleeve bushings, flanged bushings and sliding plates in accordance with ISO 4379 and DIN1850.
2. The solid bronze body can be drilled holes and filled solid graphite lubricant, in this way it can be used in oilless environments.
3. Also the solid bronze body can be machined oil grooves and holes, it can get better lubricating after filled with grease.

Bronze Oilless Bush SPB Sankyo Oilless Bushings Equivalent. Oilless Bush Catalog.

Manufacturer of Oilless Bush - Oilless Bronze Bushes, Oilless Guide Bushing, Oilless Bushing, and Brass Bushes offered by bronzegleitlager.com Graphite Bronze Bushes online.

oilless bushes material is made of strong cast bronze based metal with special solid lubricants graphite embedded. The base metal with stands high load and the solid lubricants provide for self-lubrication ...

Company Type	ZHEJIANG TOP BEARINGS CO., LIMITED
Material	Brass, Tin bronze, Lead bronze,Aluminum bronze,ect
Standard	ISO 2008,SGS,CE
Fearture	1. High load capacity Cood anti-wearing 2. Low coefficients of friction 3. Good heat conductivity 4. High corrosion resistance 5. Long life and maintenance-free 6. No contaminant by oil or grease
Process	Centrifugal casting,sand casting,Machining,Injection
Quality assurance	2D Projector, Height Gague,Micrometer,Roughness Tester, CCD Autimatic Testing Machine CCD,Callipers
Tolerance	Roundness::+/- 0.01mm. Flatness:+/- 0.005mm. Height and length:+/- 0.01mm.
Payment	L/c ,T/T,Paypal,Western Union,Ali Credit insurance
Port	CHINESE
Drawing	Yes
Sample	Available
MOQ	50KG
Lead time	According to required time

Bronze with lubricating pins - maintenance-free.Get Best Deals For Sleeve Bronze Bushings graphite bronze bearings Recommendations For You

Looking for Sleeve Bushings? Find the Best Price Quote! | MADE TO ORDER

The solid lubricants are embedded in a macroscopic distribution, which guarantees a permanent selflubricating effect without any additional lubricants.

Specifications Dimensions

Characteristics
– Suitable for high loads
– Multiple areas of us (universal bearing)
– Long life
– Wide temperature range

Areas of use
Forest machinery, pump housing parts, cylinder bearings, shipping & container industry etc.

Shapes & forms
Cylindrical bearings, flange bearing

Bronze Bushing Technology
Type	JDB-1	JDB-2	JDB-3	JDB-4	JDB-5
Base material	CuZn24Al6	CuSn6Zn6Pb3	CuSn6Zn6Pb3	HT-250	CuCr15
Base Hardness	Hb230	HB 90	HB 80	HB 210	HB 60
Base Hardness	(Hb270)	HB 90	HB 80	HB 210	HB 60
Friction coef(u)	<0.16	<0.15s	<0.14	<0.17	<0.17
Temperature limit	300℃	350℃	300℃	400℃	350℃
Dynamic Load Limit	100 N/mm2	60 N/mm2	70 N/mm2	60 N/mm2	250 N/mm2
Load LImit Under 1m/min	25 N/mm2	15 N/mm2	20 N/mm2	15 N/mm2	70 N/mm2
Speed limit	0.40 m/s 5 m/s	2 m/s	2 m/s	0.5 m/s	0.1 m/s
PV Limt	3.8 N/mm2·m/s	0.5 N/mm2·m/s	0.6 N/mm2·m/s	0.8 N/mm2·m/s	2.5 N/mm2·m/s
bronze bushingWear Performance
Load Applied		62N/mm2		24.5N/mm2		14.7N/mm2
Item		Wear Depth	Time	Wear Depth	Time	Wear Depth	Time
Type	Lubrication	(mm)	(hrs)	(mm)	(hrs)	(mm)	(hrs)
CuSn6Zn6Sn3	Oil	0.098	10	0.125	100	0.1	100
JDB-1	dry friction	0.075	100	0.015	100	0.012	100
JDB-2	dry friction	0.025	30	0.065	100	0.025	100
JDB-3	dry friction	0.03	30	0.12	100	0.015	100
JDB-4	dry friction	0.03	10	0.25	20	0.011	100
JDB-5	dry friction	0.022	100	.0.13	100	0.01	100
