Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

    • Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine
    • Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine
  • Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

    Product Details:

    Place of Origin: China
    Brand Name: TOB Casting Bronze Bearings
    Certification: ISO 16949

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiated
    Price: negotiated
    Packaging Details: Cartons or Pallets
    Delivery Time: negotiated
    Payment Terms: T/T
    Supply Ability: negotiated
    Detailed Product Description
    Material: Tin-Bronze With Solid Lubricant Application: On The Anti-abrasion And Anti-erosion Parts, Which Work In Conditions With Heavier Load And Mediate Running Velocity. For Instance, On Light Industrial Machines, Machine Tools, Moving Belt In The Drying Machine, Door Of The Fireplace, On No Oil Parts On Th
    Types: Slide Block Name: JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings
    Hardness: ≥60 HB Working Temperature Limits: -40~+300℃

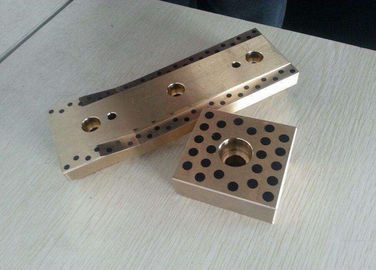

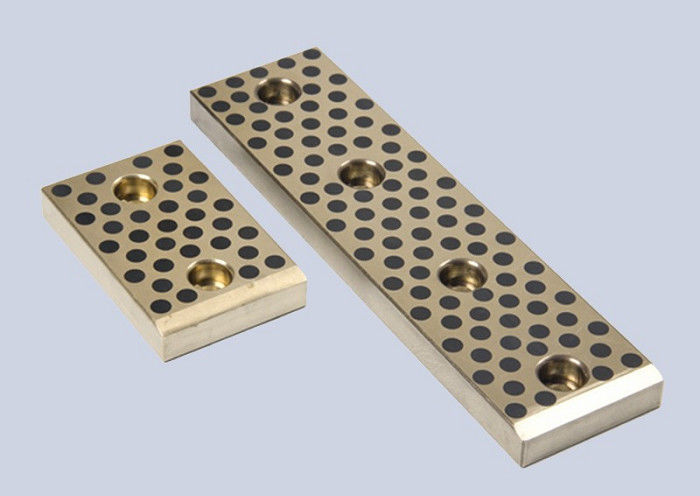

    Tin-Bronze With Solid Lubricant Casting Bronze Slide Block

    JDB Bronze Slide Block is backed with Tin-Bronze. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. OILES 500# Bronze Slide Block is widely used on the anti-abrasion and anti-erosion parts, which work in conditions with heavier load and mediate running velocity.

    By made mid-sized holes in order and then insert the solid lubricant into the holes in the bronze bushing to apply the bushings under oil-free conditions.

    For instance, on light industrial machines, machine tools, moving belt in the drying machine, door of the fireplace, on no oil parts on the building, metallurgy and transportation machines, etc.



    Chemical Compositions

    Product NO. Chemical Compositions
    TOB 052 Cu Sn Pb Zn Al Si S Fe P Ni Sb
    83~88 4.0~6.0 4.0~6.0 4.0~6.0 <0.01 <1.0 <0.3 <0.1 <2.0 <0.2





















    Physical and Mechanical Performance

    Performance Index Data Performance Index Data
    Density g/cm³ 8.7 Hardness HB ≥60
    Linear Expansion Coefficient 10^-5/℃ 1.6-1.8 Flexibility Coefficient KN/mm² 85-115
    Heat-conducting Coefficient W/(m·k) 46-63 Tensility % ≥15
    Tensile Strength N/mm² ≥240 Friction Oil Lubrication μ 0.03
    Anti-compact Tenacity ≥KJ/m^3 100-200 Dry Friction 0.16



    Application Condition Limits

    Lubrication Conditions Non- Lubrication Periodical Lubrication Consecutive Lubrication
    Working Temperature Limits -40~+300 -40~+150 -40~+150
    Max. Load pressure N/mm² 40 40 40
    Max. Linear Velocity m/s 0.40 0.85 1.00
    Max. PV Value N/mm²·m/s 1.00 1.65 2.00







    Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine





    Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying MachineMetric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying MachineMetric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine
