Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red PTFE

Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red PTFE

    • Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red PTFE
    • Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red PTFE
  • Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red PTFE

    Product Details:

    Place of Origin: China
    Brand Name: TOB PTFE Self-Lubrication Bearings
    Certification: ISO 16949

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiated
    Price: negotiated
    Packaging Details: Cartons and Pallets
    Delivery Time: negotiated
    Payment Terms: T/T
    Supply Ability: negotiated
    Detailed Product Description

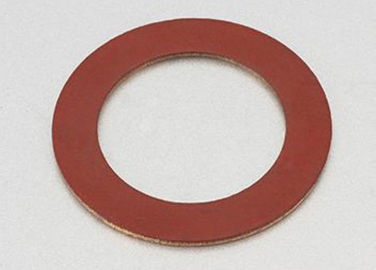

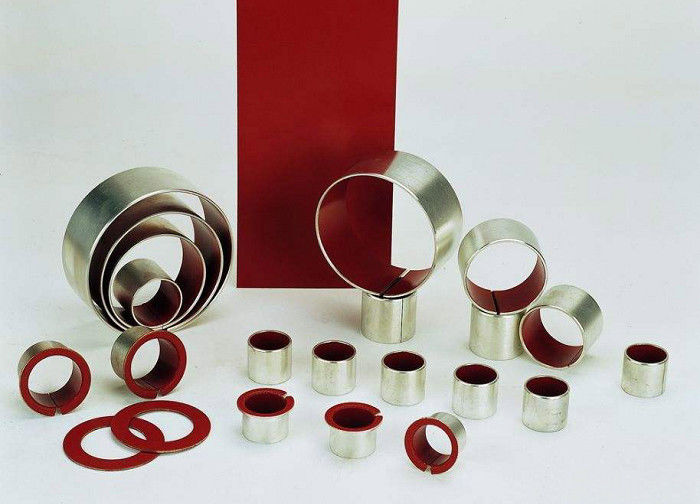

    Material: Low-Carbon Steel + Porous Bronze + PTFE Types: Wrapped Bushes, Thrust Washer
    Application: Printing, Weaving And Tobacco Producing Machines, Gymnastic Equipment, Shock Absorbers, Etc. Working Temperature: -200~+280℃
    Hardness: >120 HB Max. Load: Static 250N/mm², Dynamic 140N/mm²

    Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red PTFE

    It is backed with low-carbon steel with porous bronze sintered on the steel and polymers imbedded into the bores of the bronze. The steel back provides the bush with stronger mechanic strength and load capability. By combining the metals and the polymers together, the products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication. Moreover, it is a lead-free and environment protection product. This series are widely applied in printing, weaving and tobacco producing machines, gymnastic equipment, shock absorbers, etc.



    Physical and Mechanical Performance

    Performance Index Data Performance Index Data
    Max. Load Static Load 250N/mm² Friction Coefficient Grease Lubrication 0.08~0.20
    Dynamic Load 140N/mm² Oil Lubrication 0.02~0.07
    Oscillation Load 60N/mm² Mating Axis Hardness >120 HB
    Linear Velocity Grease Lubrication 2 m/s Roughness Ra=0.4~1.25
    Oil Lubrication 5 m/s Working Temperature -200~+280℃
    Max. PV value Grease Lubrication 3.6 N/mm²·m/s Heat-conducting Coefficient 40 W/(m*k)
    Oil Lubrication 50 N/mm²·m/s Heat-expansion Coefficient (Axial) 11*10^-6k



    Physical and Mechanical Performance

    Normally, the surface polymer is chemical-erosion resistant quality. However it can be eroded by fused alkali metal and high temperature fluorine compounds. Therefore its erosion-prevention quality is primarily decided by the quality of the steel back and its plating layer. Air-erosion could be effectively prevented if the steel back is bronze or tin-plated. If the bush is to be used in corrosive environment, the steel back needs to be plated with lead, zinc, nickel or nickel-chrome ally, etc.



    Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red PTFESelf Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red PTFESelf Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red PTFE
