ZrO2 Ceramic Plain Bearings Ball Anti-Canker No Magnetism Isolation For Electricity

ZrO2 Ceramic Plain Bearings Ball Anti-Canker No Magnetism Isolation For Electricity

    • ZrO2 Ceramic Plain Bearings Ball Anti-Canker No Magnetism  Isolation For Electricity
    • ZrO2 Ceramic Plain Bearings Ball Anti-Canker No Magnetism  Isolation For Electricity
    • ZrO2 Ceramic Plain Bearings Ball Anti-Canker No Magnetism  Isolation For Electricity
  • ZrO2 Ceramic Plain Bearings Ball Anti-Canker No Magnetism  Isolation For Electricity

    Product Details:

    Place of Origin: China
    Brand Name: TOB Ceramic Bearings
    Certification: ISO 16949

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiated
    Price: negotiated
    Packaging Details: Cartons or Pallets
    Delivery Time: negotiated
    Payment Terms: T/T
    Supply Ability: negotiated
    Contact Now
    Detailed Product Description
    Material: ZrO2 Ceramic Density: 6.0 G/cm3
    Grad: G5-G200 HV Hardness: 1300 HRC
    Coefficient Of Expansion: 10.5 10^-6/℃ The Highest Temperature: 800℃
    High Light:

    full ceramic bearings

    ,

    ceramic ball bearings

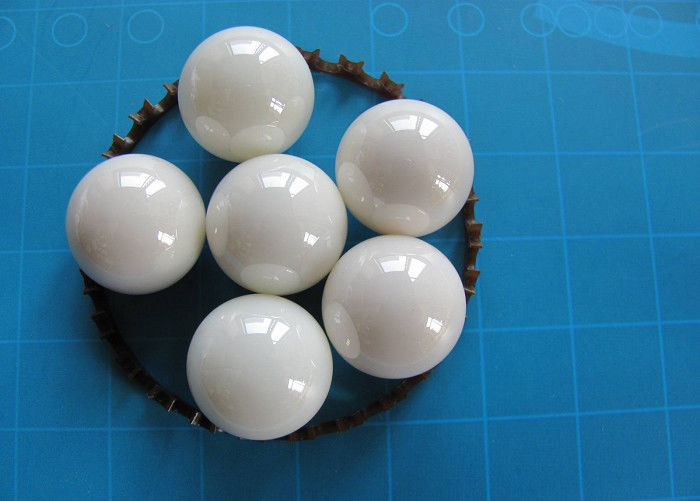

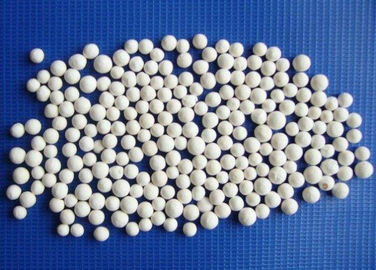

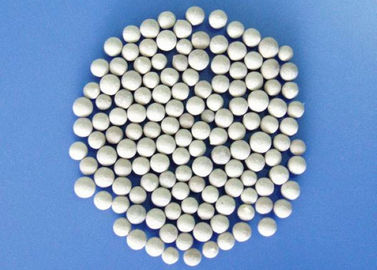

    ZrO2 Ceramic Ball



    ZrO2 Ceramic Ball at routine temperature has high intension and tenacity, good wearing resistance, high temperature resistance, anti-canker, high rigidity, no magnetism, isolation for electricity. At 600℃, the intension and rigidity almost could not be changed, whose density is 6.00g/cm3, ZrO2 Ceramic Ball’s thermal expansion rate is close to metal expansion rate, and could be used in the joint with metal.

    ZrO2 Ceramic Ball at routine temperature has high intension and tenacity, good wearing resistance, high temperature resistance, anti-canker, high rigidity, no magnetism, isolation for electricity. At 600℃, the intension and rigidity almost could not be changed, whose density is 6.00g/cm3, ZrO2 Ceramic Ball’s thermal expansion rate is close to metal expansion rate, and could be used in the joint wi





    Staple Material and Manufacturing Presision
      Ceramic Balls Plastic balls Glass Balls Stainless Balls
    meterial ZrO2,Si3N4,SiC,Al2O3 POM,PE,PP,PA,UPE,PEEK GLASS 440C,304,316,316L
    grad G5-G200 G100-G1000 G100-G1000 G10-G200



    Staple size of the balls
    Size(inch) Size(mm)   Size(inch) Size(mm)
      1.5   1/16" 1.588
      2   3/32 2.381
    1/8" 3.175   5/32" 3.969
    3/16" 4.763   7/32" 5.556
    1/4" 6.35   17/64" 6.747
      7   9/32" 7.144
    5/16" 7.938   11/32" 8.731
    3/8" 9.525   13/32" 10.319
    7/16" 11.112   29/64" 11.509
    15/32" 11.906     12
    31/64" 12.303   1/2" 12.7
    17/32" 13.494     14
    9/16" 14.288   19/32" 15.081
    5/8" 15.875   21/32" 16.669
    11/16" 17.463   23/32" 18.256
    3/4" 19.05   25/32" 19.844
      20   13/16" 20.638
    7/8" 22.225   15/16" 23.812
    1" 25.4   1-1/16" 26.988
    1-1/8" 28.575   1-3/16" 30.163
    1-1/4" 31.75   1-3/8" 34.925
      35   1-1/2" 38.1
    1-5/8" 41.275   1-11/16" 42.863
    1-7/8" 47.625   2" 50.8






    Tolerance and surface roughness of the balls
    Grade Variation of ball diameter Deviation from ( △ Sph) Surface roughness spherical from(Ra)
    not over μ m
    3 0.08 0.08 0.012
    5 0.13 0.13 0.02
    10 0.25 0.25 0.025
    16 0.4 0.4 0.032
    20 0.5 0.5 0.04
    28 0.7 0.7 0.05
    40 1 1 0.08
    60 1.5 1.5 0.1
    100 2.5 2.5 0.125
    200 5 5 0.2



    ZrO2 Ceramic Plain Bearings Ball Anti-Canker No Magnetism  Isolation For Electricity 0
