High Strength Bronze Alloy Flanged Sleeve Bearing For Injection Molders

High Strength Bronze Alloy Flanged Sleeve Bearing For Injection Molders

    • High Strength Bronze Alloy Flanged Sleeve Bearing For Injection Molders
    • High Strength Bronze Alloy Flanged Sleeve Bearing For Injection Molders
  • High Strength Bronze Alloy Flanged Sleeve Bearing For Injection Molders

    Product Details:

    Place of Origin: China
    Brand Name: TOB Casting Bronze Bearings
    Certification: ISO 16949

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiated
    Price: negotiated
    Packaging Details: Cartons or Pallets
    Delivery Time: negotiated
    Payment Terms: T/T
    Supply Ability: negotiated
    Contact Now
    Detailed Product Description
    Material: High Strength Bronze With Solid Lubricant Application: Consecutive Casting And Rolling Machines, Mine-exploiting Equipment, Ships, Steam Engine, Injection Molders And Auto Molds, Etc.
    Types: Cylinder Bearings With Flange Name: JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings
    Hardness: ≥260 HB Working Temperature Limits: -40~+300℃
    High Light:

    aluminum bronze bearings

    ,

    flanged bronze bearings



    High Strength Bronze Alloy With Solid Lubricant Casting Bronze Flanged Bearings

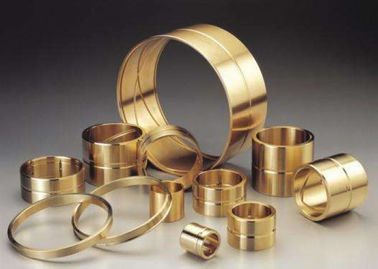

    JDB Bearing is backed with high strength bronze alloy. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled.

    Avoid use in seawater.

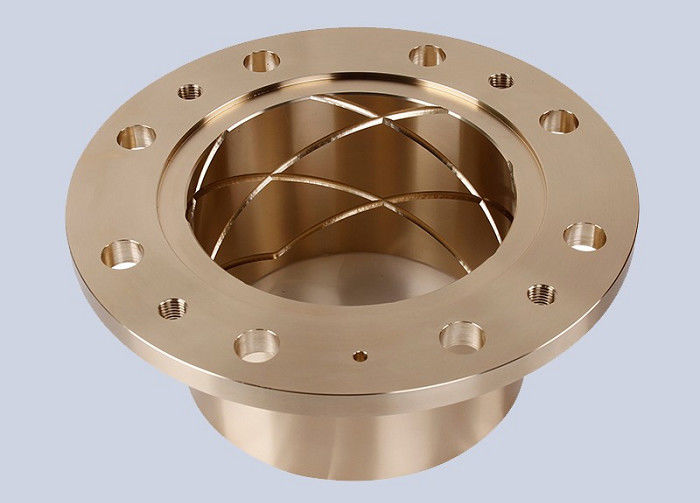

    JDB Bearing Bronze based and processed by turning technics. JDB Bearing can be made oil grooves on the inner surface and outside surface to reach a better lubricating effect. By made mid-sized holes in order and then insert the solid lubricant into the holes in the bronze bushing to apply the bushings under oil-free conditions.

    JDB Bearing can be used with rotary, reciprocating shaking motion and movement.



    Diamater 31.5mm-63mm hydraulic cylinder is put on the intermediate shaft using fresh products.



    JDB Bearing is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, injection molders and auto molds, etc.



    High Strength Bronze Alloy Flanged Sleeve Bearing For Injection Molders 0



    Chemical Compositions

    Product NO. Chemical Compositions
    TOB 051 Cu Zn Al Fe Mn Si Ni Sn Pb
    60~65 22~28 5.0~8.0 2.0~4.0 2.5~5.0 <0.1 <0.5 <0.2 <0.2





















    Physical and Mechanical Performance

    Performance Index Data Performance Index Data
    Density g/cm³ 8.2 Hardness HB ≥260
    Linear Expansion Coefficient 10^-5/℃ 1.6-2.0 Flexibility Coefficient KN/mm² 80-120
    Heat-conducting Coefficient W/(m·k) 38-55 Tensility % ≥2
    Tensile Strength N/mm² ≥850 Friction Oil Lubrication μ 0.03
    Anti-compact Tenacity ≥KJ/m^3 300-400 Dry Friction 0.16



    Application Condition Limits

    Lubrication Conditions Non- Lubrication Periodical Lubrication Consecutive Lubrication
    Working Temperature Limits -40~+300 -40~+150 -40~+150
    Max. Load pressure N/mm² 130 130 130
    Max. Linear Velocity m/s 0.30 0.80 1.25
    Max. PV Value N/mm²·m/s 1.65 3.25 3.25







    High Strength Bronze Alloy Flanged Sleeve Bearing For Injection Molders 1







    High Strength Bronze Alloy Flanged Sleeve Bearing For Injection Molders 2



    High Strength Bronze Alloy Flanged Sleeve Bearing For Injection Molders 3
