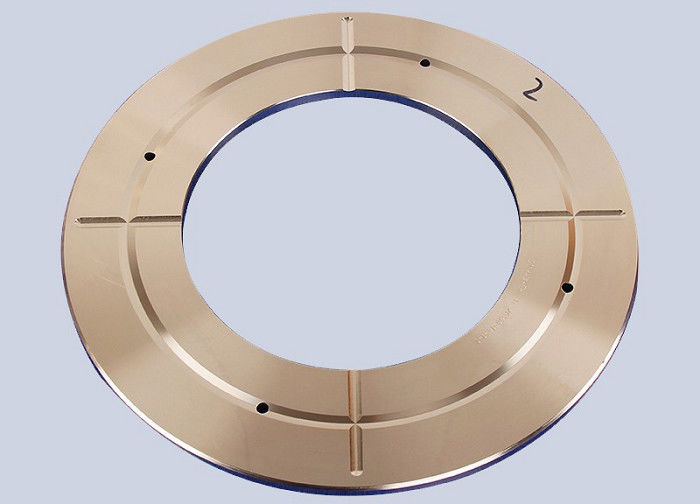

High Strength Bronze Alloy Bronze Thrust Washer / Bronze Thrust Bearing

High Strength Bronze Alloy Bronze Thrust Washer / Bronze Thrust Bearing

    • High Strength Bronze Alloy Bronze Thrust Washer / Bronze Thrust Bearing
    • High Strength Bronze Alloy Bronze Thrust Washer / Bronze Thrust Bearing
  • High Strength Bronze Alloy Bronze Thrust Washer / Bronze Thrust Bearing

    Product Details:

    Place of Origin: China
    Brand Name: TOB Casting Bronze Bearings
    Certification: ISO 16949

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiated
    Price: negotiated
    Packaging Details: Cartons or Pallets
    Delivery Time: negotiated
    Payment Terms: T/T
    Supply Ability: negotiated
    Contact Now
    Detailed Product Description
    Material: High Strength Bronze Alloy With Solid Lubricant Plugs Application: Consecutive Casting And Rolling Machines, Mine-exploiting Equipment, Ships, Steam Engine, Injection Molders And Auto Molds, Etc.
    Types: Thrust Washer Name: JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings
    Hardness: ≥260 HB Working Temperature Limits: -40~+300℃
    High Light:

    solid lubricant bearings

    ,

    aluminum bronze bearings



    High Strength Bronze Alloy With Solid Lubricant Plugs Casting Bronze Thrust Washer

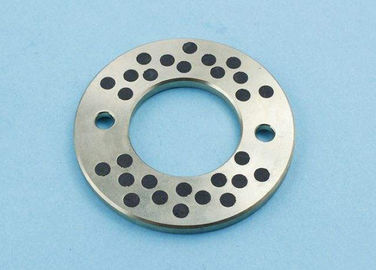

    OILES 500# Thrust Washer is backed with high strength bronze alloy. The surface is regularly and finely machined with sockets in which particular solid lubricant plugs is filled.

    By made mid-sized holes in order and then insert the solid lubricant plugs into the holes in the bronze bushing to apply the bushings under oil-free conditions.



    OILES 500# Bronze based and processed by turning technics. There can be made oil grooves on the inner surface and outside surface to reach a better lubricating effect.



    OILES 500# Thrust Washer is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, injection molders and auto molds, etc.



    High Strength Bronze Alloy Bronze Thrust Washer / Bronze Thrust Bearing 0



    Chemical Compositions

    Product NO. Chemical Compositions
    TOB 051 Cu Zn Al Fe Mn Si Ni Sn Pb
    60~65 22~28 5.0~8.0 2.0~4.0 2.5~5.0 <0.1 <0.5 <0.2 <0.2





















    Physical and Mechanical Performance

    Performance Index Data Performance Index Data
    Density g/cm³ 8.2 Hardness HB ≥260
    Linear Expansion Coefficient 10^-5/℃ 1.6-2.0 Flexibility Coefficient KN/mm² 80-120
    Heat-conducting Coefficient W/(m·k) 38-55 Tensility % ≥2
    Tensile Strength N/mm² ≥850 Friction Oil Lubrication μ 0.03
    Anti-compact Tenacity ≥KJ/m^3 300-400 Dry Friction 0.16



    Application Condition Limits

    Lubrication Conditions Non- Lubrication Periodical Lubrication Consecutive Lubrication
    Working Temperature Limits -40~+300 -40~+150 -40~+150
    Max. Load pressure N/mm² 130 130 130
    Max. Linear Velocity m/s 0.30 0.80 1.25
    Max. PV Value N/mm²·m/s 1.65 3.25 3.25







    High Strength Bronze Alloy Bronze Thrust Washer / Bronze Thrust Bearing 1





    High Strength Bronze Alloy Bronze Thrust Washer / Bronze Thrust Bearing 2
