Casting Bronze Bearing Thrust Washer OILES 500# For Light Industrial Machines

Casting Bronze Bearing Thrust Washer OILES 500# For Light Industrial Machines

    • Casting Bronze Bearing Thrust Washer OILES 500# For Light Industrial Machines
    • Casting Bronze Bearing Thrust Washer OILES 500# For Light Industrial Machines
  • Casting Bronze Bearing Thrust Washer OILES 500# For Light Industrial Machines

    Product Details:

    Place of Origin: China
    Brand Name: TOB Casting Bronze Bearings
    Certification: ISO 16949

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiated
    Price: negotiated
    Packaging Details: Cartons or Pallets
    Delivery Time: negotiated
    Payment Terms: T/T
    Supply Ability: negotiated
    Contact Now
    Detailed Product Description
    Material: Tin-Bronze With Solid Lubricant Application: On The Anti-abrasion And Anti-erosion Parts, Which Work In Conditions With Heavier Load And Mediate Running Velocity. For Instance, On Light Industrial Machines, Machine Tools, Moving Belt In The Drying Machine, Door Of The Fireplace, On No Oil Parts On Th
    Types: Thrust Washer Name: JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings
    Hardness: ≥60 HB Working Temperature Limits: -40~+300℃
    High Light:

    solid lubricant bearings

    ,

    flanged bronze bearings



    Tin-Bronze With Solid Lubricant Casting Bronze Thrust Washer

    OILES 500# Thrust Washer is backed with Tin-Bronze. OILES 500# Thrust Washer surface is regularly and finely machined with sockets in which particular solid lubricant is filled.



    OILES 500# Thrust Washer Bronze based and processed by turning technics. OILES 500# Thrust Washer can be made oil grooves on the inner surface and outside surface to reach a better lubricating effect.



    For instance, on light industrial machines, machine tools, moving belt in the drying machine, door of the fireplace, on no oil parts on the building, metallurgy and transportation machines, etc.



    Chemical Compositions

    Product NO. Chemical Compositions
    TOB 052 Cu Sn Pb Zn Al Si S Fe P Ni Sb
    83~88 4.0~6.0 4.0~6.0 4.0~6.0 <0.01 <1.0 <0.3 <0.1 <2.0 <0.2





















    Physical and Mechanical Performance

    Performance Index Data Performance Index Data
    Density g/cm³ 8.7 Hardness HB ≥60
    Linear Expansion Coefficient 10^-5/℃ 1.6-1.8 Flexibility Coefficient KN/mm² 85-115
    Heat-conducting Coefficient W/(m·k) 46-63 Tensility % ≥15
    Tensile Strength N/mm² ≥240 Friction Oil Lubrication μ 0.03
    Anti-compact Tenacity ≥KJ/m^3 100-200 Dry Friction 0.16



    Application Condition Limits

    Lubrication Conditions Non- Lubrication Periodical Lubrication Consecutive Lubrication
    Working Temperature Limits -40~+300 -40~+150 -40~+150
    Max. Load pressure N/mm² 40 40 40
    Max. Linear Velocity m/s 0.40 0.85 1.00
    Max. PV Value N/mm²·m/s 1.00 1.65 2.00

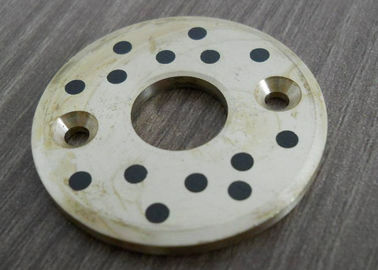

    Casting Bronze Bearing Thrust Washer OILES 500# For Light Industrial Machines 0

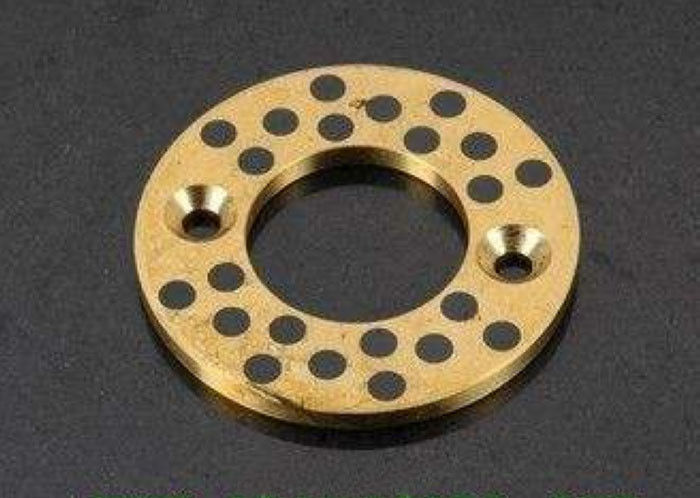

    Casting Bronze Bearing Thrust Washer OILES 500# For Light Industrial Machines 1
