| Place of Origin: | China |
| Brand Name: | TOB Casting Bronze Bearings |
| Certification: | ISO 16949 |
| Minimum Order Quantity: | negotiated |
|---|---|
| Price: | negotiated |
| Packaging Details: | Cartons or Pallets |
| Delivery Time: | negotiated |
| Payment Terms: | T/T |
| Supply Ability: | negotiated |
| Material: | Tin-Copper With Solid Lubricant Plugs | Application: | On The Anti-abrasion And Anti-erosion Parts, Which Work In Conditions With Heavier Load And Mediate Running Velocity. For Instance, On Light Industrial Machines, Machine Tools, Moving Belt In The Drying Machine, Door Of The Fireplace, On No Oil Parts On Th |
|---|---|---|---|
| Types: | Cylinder Bearings With Flange | Name: | JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings |
| Hardness: | ≥60 HB | Working Temperature Limits: | -40~+300℃ |
| High Light: | solid lubricant bearings,flanged bronze bearings |
||

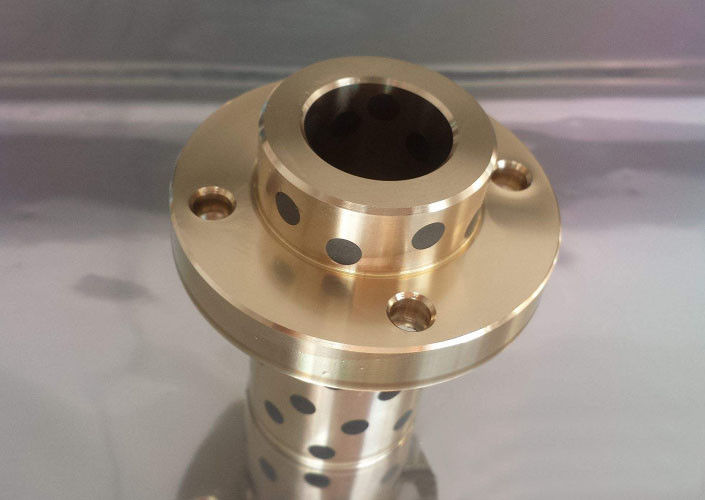

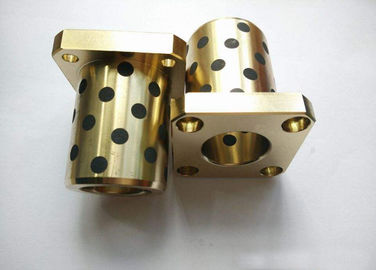

Tin-Copper With Solid Lubricant Casting Plugs Bronze Bearings with Flange
Tin-Copper With Solid Lubricant Plugs Casting Bronze Bearings with Flange is backed with Tin-Copper. The surface is regularly and finely machined with sockets in which particular solid lubricant plugs is filled.
Embedded in the falnge part because there is no lubricant, not axial load.
JDB Bearings Copper based and processed by turning technics. There can be made oil grooves on the inner surface and outside surface to reach a better lubricating effect.
Diamater 31.5mm-63mm hydraulic cylinder is put on the intermediate shaft using fresh products.
JDB Bearings with Flange is widely used on the anti-abrasion and anti-erosion parts, which work in conditions with heavier load and mediate running velocity.
For instance, on light industrial machines, machine tools, moving belt in the drying machine, door of the fireplace, on no oil parts on the building, metallurgy and transportation machines, etc.
Avoid use in seawater.
Chemical Compositions
| Product NO. | Chemical Compositions | |||||||||
| TOB 052 | Cu | Sn | Pb | Zn | Al Si | S | Fe | P | Ni | Sb |
| 83~88 | 4.0~6.0 | 4.0~6.0 | 4.0~6.0 | <0.01 | <1.0 | <0.3 | <0.1 | <2.0 | <0.2 | |
Physical and Mechanical Performance
| Performance Index | Data | Performance Index | Data | |||
| Density | g/cm³ | 8.7 | Hardness | HB | ≥60 | |
| Linear Expansion Coefficient | 10^-5/℃ | 1.6-1.8 | Flexibility Coefficient | KN/mm² | 85-115 | |
| Heat-conducting Coefficient | W/(m·k) | 46-63 | Tensility | % | ≥15 | |
| Tensile Strength | N/mm² | ≥240 | Friction | Oil Lubrication | μ | 0.03 |
| Anti-compact Tenacity | ≥KJ/m^3 | 100-200 | Dry Friction | 0.16 | ||
Application Condition Limits
| Lubrication Conditions | Non- Lubrication | Periodical Lubrication | Consecutive Lubrication | |
| Working Temperature Limits | ℃ | -40~+300 | -40~+150 | -40~+150 |
| Max. Load pressure | N/mm² | 40 | 40 | 40 |
| Max. Linear Velocity | m/s | 0.40 | 0.85 | 1.00 |
| Max. PV Value | N/mm²·m/s | 1.00 | 1.65 | 2.00 |
