| Place of Origin: | China |
| Brand Name: | TOB Casting Bronze Bearings |
| Certification: | ISO 16949 |
| Minimum Order Quantity: | negotiated |
|---|---|
| Price: | negotiated |
| Packaging Details: | Cartons or Pallets |
| Delivery Time: | negotiated |
| Payment Terms: | T/T |
| Supply Ability: | negotiated |
| Material: | Tin-Copper With Solid Lubricant Plugs | Application: | On The Anti-abrasion And Anti-erosion Parts, Which Work In Conditions With Heavier Load And Mediate Running Velocity. For Instance, On Light Industrial Machines, Machine Tools, Moving Belt In The Drying Machine, Door Of The Fireplace, On No Oil Parts On Th |
|---|---|---|---|
| Types: | Slide Block | Name: | JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings |
| Hardness: | ≥60 HB | Working Temperature Limits: | -40~+300℃ |
| High Light: | aluminum bronze bearings,flanged bronze bearings |
||

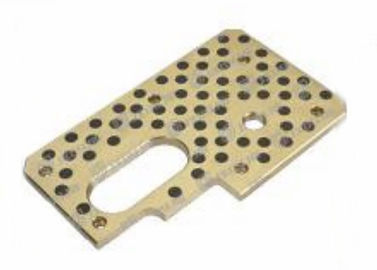

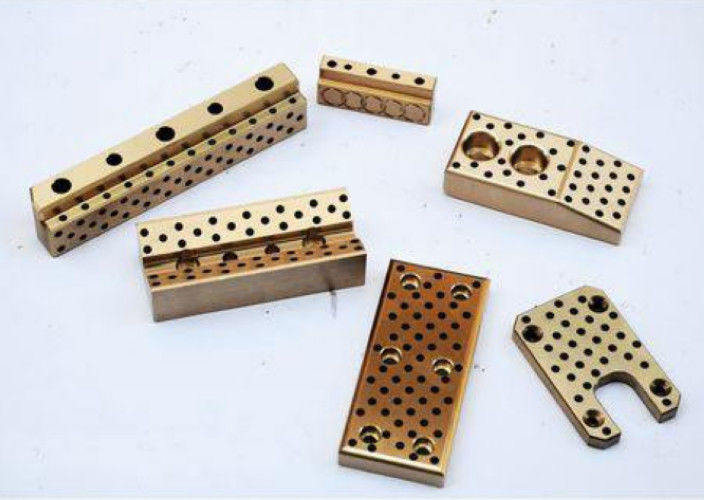

Tin-Copper With Solid Lubricant Plugs Casting Bronze Slide Block
JDB Copper Slide Block is backed with Tin-Copper. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. OILES 500# Copper Slide Block is widely used on the anti-abrasion and anti-erosion parts, which work in conditions with heavier load and mediate running velocity.
JDB Copper Bearings is a special formulation of Tin-Copper based body surface at a certain angle and density of embedded solid lubricant specially formulated by precision machining.
By made mid-sized holes in order and then insert the solid lubricant Plugs into the holes in the Copper bushing to apply the bushings under oil-free conditions.
For instance, on light industrial machines, machine tools, moving belt in the drying machine, door of the fireplace, on no oil parts on the building, metallurgy and transportation machines, etc.
Chemical Compositions
| Product NO. | Chemical Compositions | |||||||||
| TOB 052 | Cu | Sn | Pb | Zn | Al Si | S | Fe | P | Ni | Sb |
| 83~88 | 4.0~6.0 | 4.0~6.0 | 4.0~6.0 | <0.01 | <1.0 | <0.3 | <0.1 | <2.0 | <0.2 | |
Physical and Mechanical Performance
| Performance Index | Data | Performance Index | Data | |||
| Density | g/cm³ | 8.7 | Hardness | HB | ≥60 | |
| Linear Expansion Coefficient | 10^-5/℃ | 1.6-1.8 | Flexibility Coefficient | KN/mm² | 85-115 | |
| Heat-conducting Coefficient | W/(m·k) | 46-63 | Tensility | % | ≥15 | |
| Tensile Strength | N/mm² | ≥240 | Friction | Oil Lubrication | μ | 0.03 |
| Anti-compact Tenacity | ≥KJ/m^3 | 100-200 | Dry Friction | 0.16 | ||
Application Condition Limits
| Lubrication Conditions | Non- Lubrication | Periodical Lubrication | Consecutive Lubrication | |
| Working Temperature Limits | ℃ | -40~+300 | -40~+150 | -40~+150 |
| Max. Load pressure | N/mm² | 40 | 40 | 40 |
| Max. Linear Velocity | m/s | 0.40 | 0.85 | 1.00 |
| Max. PV Value | N/mm²·m/s | 1.00 | 1.65 | 2.00 |
