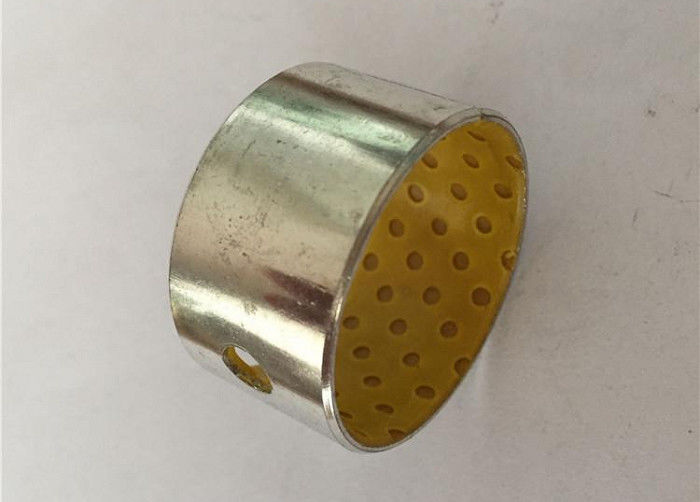

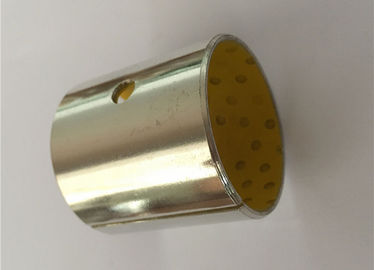

Yellow POM Boundary Lubricating Bearings / Sliding Bearings 270 HB

Yellow POM Boundary Lubricating Bearings / Sliding Bearings 270 HB

  • Yellow POM Boundary Lubricating Bearings / Sliding Bearings 270 HB
  • Yellow POM Boundary Lubricating Bearings / Sliding Bearings 270 HB
Yellow POM Boundary Lubricating Bearings / Sliding Bearings 270 HB
Product Details:
Place of Origin: China
Brand Name: TOB POM Boundary Lubricating Bearings
Certification: ISO 16949
Payment & Shipping Terms:
Minimum Order Quantity: negotiated
Price: negotiated
Packaging Details: Cartons and Pallets
Delivery Time: negotiated
Payment Terms: T/T
Supply Ability: negotiated
Contact Now
Detailed Product Description
Material: Low-Carbon Steel + Porous Bronze + Yellow POM Types: Wrapped Bushes, Thrust Washer
Application: Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc. Hardness: >270 HB
Working Temperature: -40~+120℃ Max. PV Value: Grease 2.8 N/mm²·m/s, Oil 50 N/mm²·m/s
High Light:

pom bearing

,

sleeve bearing bushing

Sliding Bearings Boundary Lubricating Bearings

TOB020B self-lubricating bearing is a type of lead free DX bushing. This type plain dry bushing has common structure with other DX bushes.



Material structure:

Characteristics:

Low friction, anticorrosion and long life

Suitable for marginally lubricated and dry operating conditions

Performance is similar to DS in foreign country



Availability:

Standard cylindrical bushings, thrust washers and strips are available.

Special designs can be made according to your design



Applications:

TOB020BDX bushing is widely used in vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc.



· Details

>> Boundary Lubricating Bearings
The product is made of high quality low-carbon steel with sintering porous bronze as its interlayer, and the compound of polyoxymethylene (POM)
& Pb as its surface. It can offer the good load capacity and wear-resistant. The product is applied to vehicle chassis, forging and pressing machine, metallurgical machinery, mining machinery, hydraulic and rolling steel industry, etc.
Available Mode:
Available Mode: Cylinder bushing, flange, thrust washer, sliding plates and other non-standardized product components.
Tolerance: The common recommended tolerance of a saddle bore is H7, and the journal tolerance is f7 or h8.
Technical Parameters:
Maximum Bearing Static Bearing 250N/m Use Temperature -150℃~+250℃
Dynamic Bearing 140N/m Maximum Speed Dry Running 2m/s
Rotary Bearing 60N/m Wet Running 2m/s
Maximum PV (Dry) 3.6N/mm/s Heat Conductivity 4W(mK)1
Coefficient of Thermal Expansion 11106K1 Friction Coefficient 0.05~0.20
Products used to tie in with the first oil.
