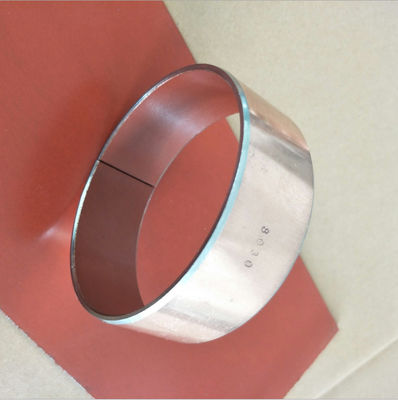

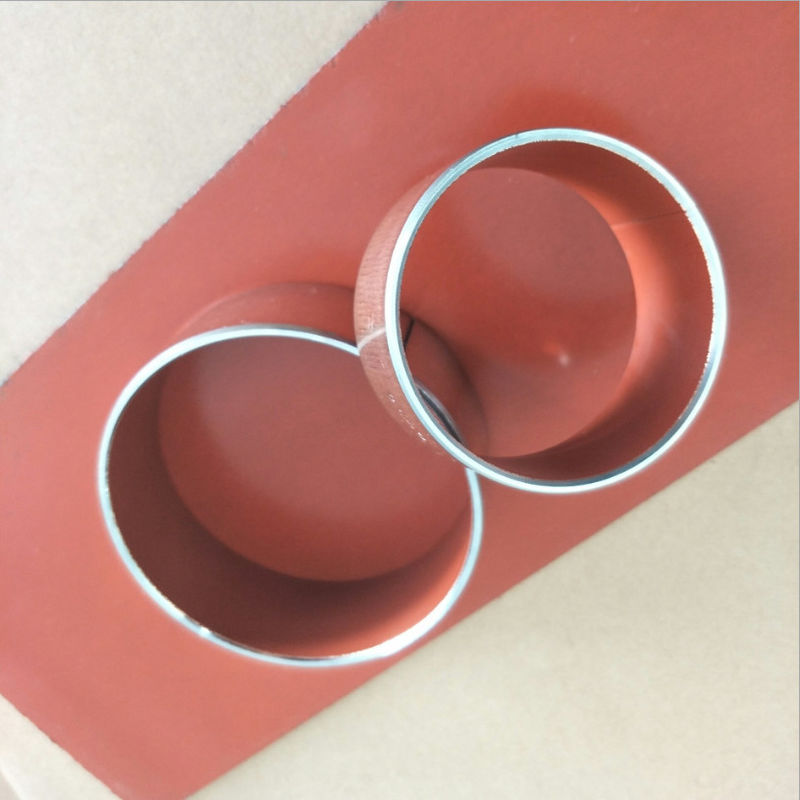

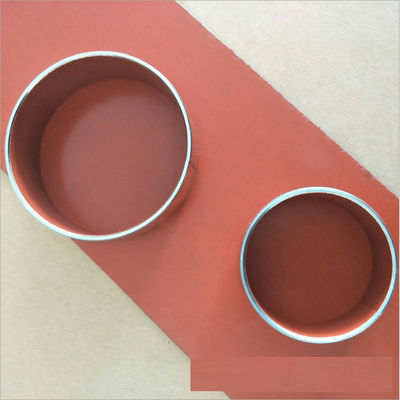

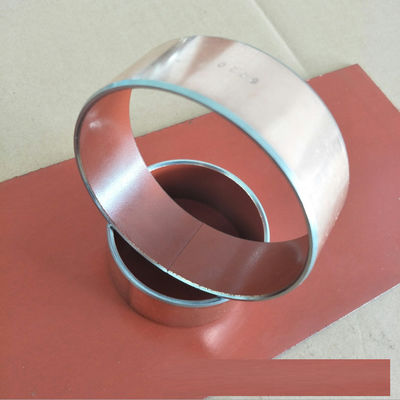

PTFE Copper Plated Self Lubricating Plain Bearing DIN 1494 ISO 3547

PTFE Copper Plated Self Lubricating Plain Bearing DIN 1494 ISO 3547

  • PTFE Copper Plated Self Lubricating Plain Bearing DIN 1494 ISO 3547
  • PTFE Copper Plated Self Lubricating Plain Bearing DIN 1494 ISO 3547
  • PTFE Copper Plated Self Lubricating Plain Bearing DIN 1494 ISO 3547
  • PTFE Copper Plated Self Lubricating Plain Bearing DIN 1494 ISO 3547
PTFE Copper Plated Self Lubricating Plain Bearing DIN 1494 ISO 3547
Product Details:
Place of Origin: China
Brand Name: TOB PTFE Self-Lubrication Bearings
Certification: ISO 16949
Payment & Shipping Terms:
Minimum Order Quantity: negotiated
Price: negotiated
Packaging Details: Cartons and Pallets
Delivery Time: negotiated
Payment Terms: T/T
Supply Ability: negotiated
Contact Now
Detailed Product Description
Material: Carbon Steel + Bronze+ Ptfe Supply Ability: Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings
Characteristic: Low-maintenance And Maintenance-free Plain Bearings Production Feature: Bushes, Collar Bushes, Washers, Strips Or Special Designs
Plating: Tin Or Copper Plated Size: Customized Size,Customized Request, All Standard, As Per Customer's Request
Lubricating: Oilless Packaging Details: Export Standard Packing
High Light:

PTFE Selflubricating Plain Bearing


Tin Plated Self Lubricating Bearings


Copper Plated Plain Bearing

Self Lubricating Bushing Plain Bearings



TOP BEARING is a professional supplier of self-lubricating bearings in China.Set good quality and service as one.Size customizable.


Product introduction

- 1 d hydraulic bearing. Is on the basis of - 1 p combined with the oil cylinder and the working principle of the shock absorber and design a new type of material, under the condition of no oil is more wear-resisting, in addition to the product has the advantages of - 1 p, especially suitable for reciprocating force frequent tendency of big occasions. Its performance is similar to DP4, at present the product gradually replace - 1 p products, suitable for car, motorcycle shock absorber and a variety of hydraulic cylinder, etc.


-1D Self Lubricating Plain Bearings'Technical data

Performance indicators data
Maximum load(P) Static load 250N/mm²
Dynamic load 140N/mm²
The highest line speed(V) Dry friction 2.5m/s
Oil lubrication 5.0m/s
High PV value Dry friction 3.8N/mm²・m/s
Oil lubrication 50N/mm²・m/s
The coefficient of friction(μ) 0.04~0.20
The use of temperature
Coefficient of thermal conductivity


Metallographic image

Note: figure in the product can also according to different working condition choose different substrate materials, such as: bronze substrates ( - 1 b), stainless steel substrate ( - 1 s), and lead-free (1W), and other products.


Self Lubricating Bushing Plain Bearings



Application field

Agricultural machinery, tractors, combine harvesters, crop sprayers, bulldozer, grader, etc;Auto industry: the power steering pump, steering thrust pads, brake disc, shock absorber, door hinge, wiper, chairs, illustrates, air valve and electromagnetic pavilion, etc.;Office business machines, photocopiers, fax machines, printers, E-mail processor, etc.;Hydraulic components and valves, gear pump, ram pump, vane pump, ball valve, butterfly valve, cylinder, cylinder and other hydraulic components, etc.;Household appliances: refrigerators, air conditioners, vacuum cleaners, sewing machine, washing machine, microwave oven and fitness equipment, etc.And other logistics machinery, packaging machinery, textile machinery, port machinery, mining machinery, forest machinery and all kinds of engineering machinery and equipment.


Chemical properties

- 1 d polymer surface resistance to chemical corrosion, so its corrosion resistance mainly depends on the steel back of plating and appearance. The steel back of tin or copper plated surface, can effectively prevent atmospheric corrosion; If you work in the corrosive medium, the steel back can be galvanized, etc.






Self Lubricating Bushing Plain Bearings






Wear-resisting performance

1) "running-in stage: PTFE surface layer mixture to dual surface fill the dual surface depressions, and formation of transfer film, at this point, the friction coefficient is bigger, material wear faster.
2) "stable" wear stage: after running-in friction into PTFE, the friction between the low and stable friction coefficient, low wear rate of materials smoothly.
3) a "dramatic" wear stage: porous PTFE lubricant consumption of pore, the friction interface can't get enough amount of lubricant. Bad lubrication between friction surface, the friction coefficient rising rapidly, material grinding rate dramatically fast, until 70% bronze exposed, 1 life close to the end.


The main factors influencing the life span


1) the influence of PV value
PV value is to determine the wear life of- 1 effective index. If required longevity, PV value must be reduced.
2) the influence of ambient temperature
The higher the temperature, - 1 the shorter service life.
3) dual effects
Dual USES alloy steel or hard chromium plated shaft, surface roughness Ra - 0.4-0.63 range, - 1 bearing service life can be improved significantly.In addition to standard products show in the catalogue, you can also provide non-standard products according to customer's requirement or order.



-1series normal metric bushing





Self Lubricating Bushing Plain Bearings






Material Stainless Steel Base+Bronze Powder +PTFE
Typical Application the corrosion resistant part in dyeing machinery and ocean industry, etc.
Max Static Load 250N/mm²
Max Dynamic Load 140N/mm²
Max Oscoillation Load 60N/mm²
Max Line Speed Dry 2.5m/s, Oil > 5m/s
PV Value Limit Dry 1.8N/mm².m/s,Oil 3.6N/mm².m/s
Friction Coefficient Dry 0.08~0.20, Oil 0.02~0.12
Mating Axis Hardness >220, Roughness 0.4~1.25
Working Temperature -200~+280℃
Thermal Conductivity 40W/mk
Coefficient Of Linear Expansion 11×10-6/K
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.
