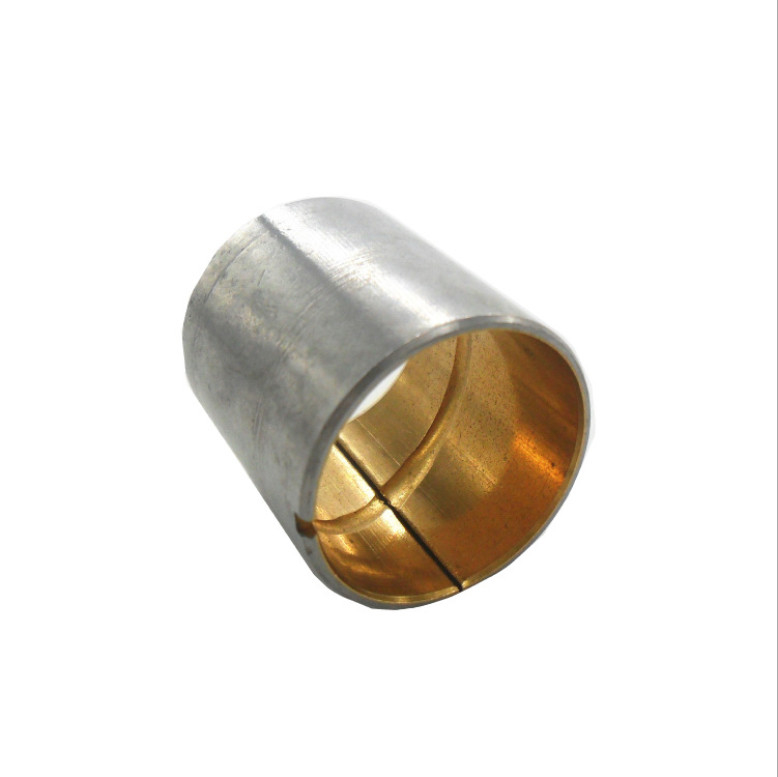

Bi-Metal Bearings Varies Inner Outer Diameter Precision

Bi-Metal Bearings Varies Inner Outer Diameter Precision

  • Bi-Metal Bearings Varies Inner Outer Diameter Precision
Bi-Metal Bearings Varies Inner Outer Diameter Precision
Product Details:
Place of Origin: China
Certification: ISO 16949
Payment & Shipping Terms:
Minimum Order Quantity: negotiated
Price: negotiated
Packaging Details: Cartons or Pallets
Delivery Time: negotiated
Payment Terms: T/T
Supply Ability: negotiated
Contact Now
Detailed Product Description
Features: Dry, Harden, Wear, Maintenance Free, Low Resistance Type: Sleeve, Ball, Flanged, Drill Bit, Strip
Material: Copper, Brass, Stainless Steel, Bronze, Aluminum Finishing: Rust-proof, Tin Plated, Brass Plated, Other, Straight Sets Sleeve/Flange Plain/Thrust Pads/Skateboard/customized
Standard: DIN1494, ISO3547, EN, JIS, ANSI/ASME Feature: Impact, Good Corrosion Resistance, Load Capacity, High Capacity And Good Fatigue Properties, High Fatigue Strength

Product Description:

Bimetal Lead-Free Plain Bearings Imperial & Metric Sizes Bush With Grooves

The bimetal bushing is steel backed with high-quality with tin-lead-bronze alloy sintered on its surface. Bimetal Bushing are widely used in various past of automobile industries such as engine, transmission cases, vehicle Support wheel Bushings, guide wheel bushing, bushing replacement parts - Con Rod Bearing Bush, Sleeve Bush for Rocker Arm, and Cam Shaft Bearing Bush.

Bimetal bearing bushes have high-performance environmentally friendly dual metal bearings that are customer-specified products. bimetal bearing bushes use low-carbon steel plate as supporting base and powder metallurgy sintering and rolling processes to form a leadless CuSn8Ni steel-copper alloy product. The materials in this product meet RoHS directory/regulation/rule, under certain circumstances can substitute for JF800 products. bimetal bearing bushes have a high load-bearing capacity and good wear-resistance. Its shortcoming is that it cannot be used without oil lubrication. In places where oil lubrication is sufficient, bimetal bearing bushes have superior performance.

Our sales assistant team will provide bronze bushings service for each of your needs. Quick Response. Once we receive your request, we will contact you, and the sliding bushings qualified type will be recommended to you within 24 hours.

Bimetal Lead-Free Plain Bearings Imperial & Metric Sizes Bush With Grooves.Thin-walled bearing Metal, Bimetal & Steel Bearings, Sintered Bronze Bushings made-to-order from china. TOP BEARING Bimetal Plain Bearings to Standard alternatives.Bimetal Bushing Bearing Manufacturer | Cylindrical Steel Bronze Bushing Series.Cylindrical Bushes Thrust washers, Strips, Or Special Designs. Specialized Bi-Metal Sintered Bushings (steel-backed bronze bushings) sliding bearing materials with the various configurations have been assembled as a free service guide for engineering support. The online website of Bi-metal bushing information will assist you in choosing the correct Bi-metal bushing and sliding bearings for your applications along with helpful design tips.

Bearing forms made to order: Cylindrical bushes and sliding plates with non-standard dimensions, RoHS customized bearing designs. OEM Manufacturing Partner for Custom Parts, Components & Bimetal Bushings Products.

Bimetal bearings are able to handle heavy loads and shock-loading conditions. Our bimetal bearings have anti-corrosion capabilities and are easy to install, making them ideal for emergency replacements. Metal and Bimetal Guide Bushings carbon steel or bronze backing.

BIMETAL BEARINGS Normal cylindrical bushes, grooves, oil holes, slots, etc. Bimetal Wrapped Steel with Bronze Series - Metric Sliding Bearings. Click here to go to our online Bimetal Wrapped Steel Bushing catalog BIMETAL PLAIN BEARINGS AND SLEEVE BEARINGS MADE IN...and sleeve split bearing specifier for the bimetal Series Bushings with inch size products including material bushing downloads.



Applications:

Bi-Metallic Bearings is a kind of bearings which is made of two different metals. It is widely used in automotive, aerospace, agricultural, mining, and industrial applications. Its unique design ensures reliable performance even under extreme conditions. It offers low friction, high performance, and low maintenance operation. Bi-Metallic Bearings can be used in a variety of applications, such as high speed applications, high load applications, and vibration reduction applications. Its exceptional strength and stiffness make it suitable for use in heavy duty applications. It can also be used in high temperature applications, and is able to withstand high loads and temperatures. The Bi-Metallic Bearing Assembly has a Place of Origin in China and is certified by ISO 16949. Its Packaging Details can be either Cartons or Pallets, and it comes with a variety of Finish, Lubricant, Width, and Outer Diameter. It also has a variety of Cage options available for use. The Bi-Metallic Bearings are designed to provide superior bearing performance, and are able to withstand extreme operating conditions. Its low friction and high performance make it suitable for use in both automotive and industrial applications. Its easy installation and maintenance make it an ideal choice for any application.

Customization:

Bi Metal Bearings

Bi-Metallic Bearings System, Bi-Metallic Bearing Assembly, Bi-Metallic Bearing Unit are available with customizations.

  • Place of Origin: China
  • Certification: ISO 16949
  • Packaging Details: Cartons or Pallets
  • Max Speed: Varies
  • Dynamic Load Rating: Varies
  • Precision: Varies
  • Lubricant: Varies
  • Retainer: Varies

Contact us to customize the Bi-Metallic Bearings according to your needs.



Support and Services:



Bi Metal Bearings Technical Support and Service

At , we offer comprehensive technical support and after-sale service for our Bi Metal Bearings. Our experienced technical support team is available to answer any of your questions relating to installation, maintenance, and operation of our Bi Metal Bearings.

We provide a wide range of services, including:

  • On-site installation and setup
  • Troubleshooting and repair
  • Technical advice and guidance
  • Consultation on product selection and application
  • Periodic maintenance and inspection

If you require any assistance with your Bi Metal Bearings, please don't hesitate to contact our technical support team.



Packing and Shipping:



Bi Metal Bearings Packaging and Shipping
Bi Metal Bearings are packaged in cardboard boxes with dividers to ensure safe transport. Depending on the size and quantity of the order, the boxes are secured with bubble wrap or other suitable packing materials. All packages are then shipped with a reliable courier service, with insurance and tracking services provided.



FAQ:



Q: What is a Bi Metal Bearing?
A: A Bi Metal Bearing is a special type of bearing made with two different metals combined together to provide high strength and wear resistance.
Q: Where are Bi Metal Bearings made?
A: Our Bi Metal Bearings are made in China and certified with ISO 16949.
Q: What is the packaging for Bi Metal Bearings?
A: Our Bi Metal Bearings are packaged in cartons or pallets.
Q: What are the advantages of using Bi Metal Bearings?
A: Bi Metal Bearings offer high strength, wear resistance, as well as excellent corrosion and fatigue resistance.
Q: Are Bi Metal Bearings suitable for high temperature applications?
A: Yes, Bi Metal Bearings are suitable for high temperature applications and can withstand temperatures up to 550°C.


The designing of oil indentations
In order to fully lubricate the bush when in the performance, the indentations with size as following are recommended. They should be manufactured according to the standard below if without special requirements.
Bush O.D More than to 14~22 22!44 40~50 50~100 100~180
Lubricating hole 3 3 3 6 7
The lubricating hole should be away from the butt joint and loading area and designed to be easy-oil-feeding as well.



Normal thickness of the JF bimetal and their tolerances
Tolerance Thickness 1 1.5 2 2.5 3 3.5 4 5
Thickness of steel
backing
0.6 1 1.4 1.9 2.3 2.8 3.2 4
Thickness of bronze
layer
0.4 0.5 0.6 0.6 0.7 0.7 0.8 1.0
Manufacturable wall
thickness
1+0.25
+0.15
1.5+0.25
+0.15
2+0.25
+0.15
2.5+0.25
+0.15
3+0.25
+0.15
3.5+0.25
+0.15
4+0.25
+0.15
4+0.25
+0.15
Manufactured wall
thickness
1-0.025 1.5-0.03 2-0.035 2.5-0.04 3-0.045 3.5-0.05 4-0.055 4-0.06



JF JF Bimetal Bushing chemical composition
Tolerance Thickness JF-800 JF-720 JF-700 JF-20
Cu Remainder Remainder Remainder 0.7~1.3
Pb 9.0~11.0 21.0~27.0 26.0~33.0 -
Sn 9.0~11.0 3.0~4.5 0.5 17.5~22.5
Zn 0.5 0.5 0.5 -
P 0.1 0.1 0.1
Fe 0.7 0.7 0.7 0.7
Ni 0.5 0.5 0.5 0.1
Sb 0.2 0.2 0.2 -
Ai - - -
Si - - - 0.7
Mn - - - 0.7
Ti - - - 0.2
Other 0.5 0.5 0.5 0.5



Product Tags:

bimetal bush

bimetal bearings

Lead Free Bimetal Bearing Bushes

JFBimetel Bushing Physical properties
Physical properties JF-800 JF-720 JF-700 JF-20
Max. static load pressure
N/mm2
150 130 120 100
Tensile strength
N/mm2
150 150 200 200
Max. speed(oil) m/s 5 10 15 25
Friction coef(Oill) 0.06~0.14 0.06~0.16 0.08~0.16 0.08~0.17
PV limit
N/mm2 m/s
Grease 2.8 2.8 2.5 -
Oil 10 10 8 6
Sapphire Fatigue Calss Mpa 125 115 105   <td align="center" 100%"="" style="font-style: inherit; font-weight: inherit; margin: 0px; outline: none 0px; padding: 0px 0px 0px 5px; border: 1px solid rgb(238, 238, 238); box-sizing: border-box; width: auto !important;">
