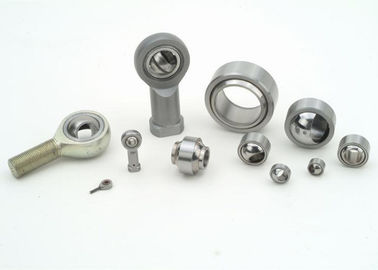

    Spherical Plain Bearings Rod End Bearing Maintenance-free Type



    Rod end is composed of a standard spherical plain bearing and a rod body,

    it’s available with left or right-hand female (internal) or male (external) threads.

    BRS maintenance-free rod ends have special sliding layers of modern dry sliding

    materials characterised by low friction. They are particular suitable for applications

    where long service lives are required without maintenance.



    Specifications & Features

    1. Materials: chrome steel, stainless steel and carbon steel

    2. Surface treatment: zinc-plated, chrome-plated, nickel and copper-plated

    3. Production range (d): 5 to 35mm in metric or inch sizes both

    4. Corrosion-resistant, self-lubricating and high load capacity



    Applications:

    Engineering hydraulic cylinder, forming machine tools, engineering machinery,

    automation equipment, automobile shock absorber, water conservancy machinery industry,

    textile machinery, military machinery, etc.



    Spherical Plain Bearings Rod End Bearing Maintenance Free Type 0

    Model Dimension (mm) Loading Rating
    (KN)
    Weight (kg)
    d d2 B C1 W d3 d4 d5 L1 L2 L L3 d1 α°
    Dynamic Static
    SI5T/K 5 18 8 6 9 M5X0.8 9 11 27 10 36 4.5 7.7 13 6 7.5 0.018
    SI6T/K 6 20 9 6.75 11 M6X1 10 13 30 12 40 5 8.9 13 7.2 9.3 0.027
    SI8T/K 8 24 12 9 13 M8X1.25 12.5 16 36 16 48 5 10.4 14 11.6 16.7 0.046
    SI10T/K 10 28 14 10.5 17 M10X1.5 15 19 43 20 57 6.5 12.9 13 14.5 23.4 0.076
    SI12T/K 12 32 16 12 19 M12X1.75 17.5 22 50 22 66 6.5 15.4 13 17 32 0.115
    SI14T/K 14 36 19 13.5 22 M14X2 20 25 57 25 75 8 16.8 16 24 41.9 0.170
    SI16T/K 16 42 21 15 22 M16X2 22 27 64 28 85 8 19.3 15 28.5 52.7 0.230
    SI18T/K 18 46 23 16.5 27 M18X5 25 31 71 32 94 10 21.8 15 35 63.8 0.320
    SI20T/K 20 50 25 18 32 M20X1.5 27.5 34 77 33 102 10 24.3 14 40 78.1 0.415
    SI22T/K 22 54 28 20 32 M22X5 30 37 84 37 111 10 25.8 15 52 97.2 0.540
    SI25T/K 25 60 31 22 36 M24X2 33.5 42 94 42 124 12 29.6 15 60 122.1 0.750
    SI30T/K 30 70 37 25 41 M30X2 40 51 110 51 145 15 34.8 15 81 168.4 1.130
    SI35T/K 35 80 43 28 50 M36X2 46 56 125 56 165 15 37.7 17 100 205.7 1.600


    Spherical Plain Bearings Rod End Bearing Maintenance Free Type 1

    Model Dimension (mm) Loading Rating
    (KN)
    Weight (kg)
    d d2 B C1 d3 h L1 L2 L d1 α°
    Dynamic Static
    SA5T/K 5 18 8 6 M5X0.8 33 33 19 42 7.7 13 4 7.5 0.013
    SA6T/K 6 20 9 6.75 M6X1 36 36 22 46 8.9 13 4.4 9.3 0.020
    SA8T/K 8 24 12 9 M8X1.25 42 42 25 54 10.4 14 8 16.7 0.033
    SA10T/K 10 28 14 10.5 M10X1.5 48 48 29 62 12.9 13 12.9 23.4 0.056
    SA12T/K 12 32 16 12 M12X1.75 54 54 33 70 15.4 13 17 32 0.087
    SA14T/K 14 36 19 13.5 M14X2 60 60 38 78 16.8 16 24 41.9 0.129
    SA16T/K 16 42 21 15 M16X2 66 66 40 87 19.3 15 28.5 52.7 0.189
    SA18T/K 18 46 23 16.5 M18X1.5 72 72 44 95 21.8 15 35 63.8 0.267
    SA20T/K 20 50 25 18 M20X1.5 78 78 47 103 24.3 14 40 78.1 0.348
    SA22T/K 22 54 28 20 M22X1.5 84 84 51 111 25.8 15 52 97.2 0.443
    SA25T/K 25 60 31 22 M24X2 94 94 58 124 29.6 15 60 122.1 0.600
    SA30T/K 30 70 37 25 M30X2 110 110 71 145 34.8 15 81 168.4 1.030
    SA35T/K 35 80 43 28 M36X2 125 125 77 165 37.7 17 100 205.7 1.600
