Place of Origin: | MADE IN CHINA |
Brand Name: | TOB Bronze + Graphite Cam Plate |
Certification: | ISO 16949 |

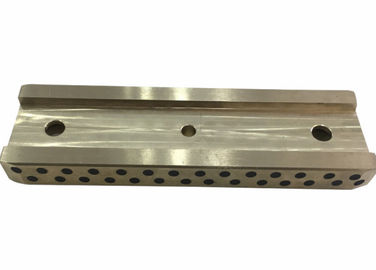

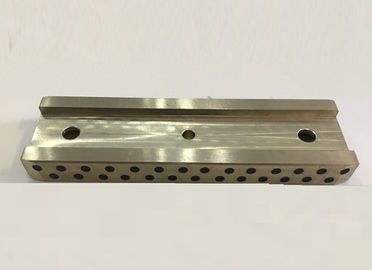

Model Number: | Can Units,cam slide guide, L-shaped, bronze with graphite |
Minimum Order Quantity: | Standard Size Bushing No Minimum Order Quantity |
---|---|
Price: | negotiated |
Packaging Details: | Standard Export Cartons or Pallets |
Delivery Time: | negotiated |
Payment Terms: | T/T, Western Union |
Supply Ability: | negotiated |
Bronze Bearings Material: | Bronze + Graphite | Application: | Die & Mould Cam Slide |
---|---|---|---|
Size: | According Part No# And Drawings | Types: | Can Units,cam Slide Guide, L-shaped, Bronze With Graphite |
Highlight: | aluminum bronze bearings,flanged bronze bearings |
There is also a good range of Wear strips - Graphite Plug on the Small Parts and Bearings.

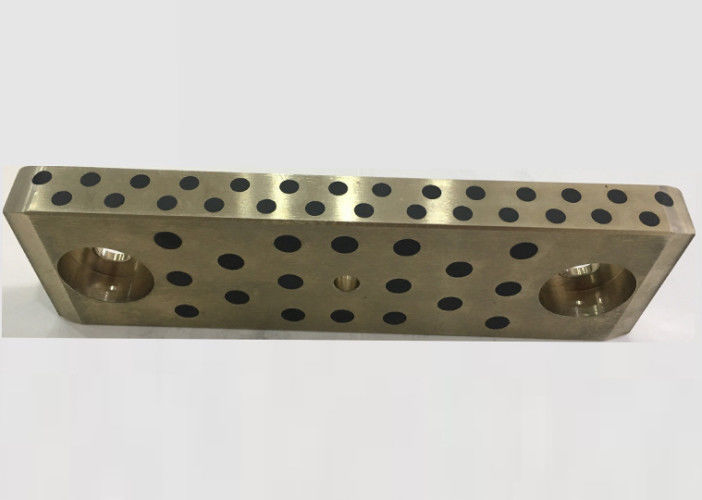

ZHEJIANG TOP BEARINGS CO., LIMITED is a leading company dedicated to the industrial supply of standard mould and die elements. Our work is focused on selling and distributing standardized elements, such as guide pillars, guide bushes, die plates or punches, offering the best global solution to the most challenging automotive needs, die-making and mould sectors. Self Lubricating Bronze Wear Plate Many of the fully machined bronze wear plates that we manufacture are self lubricating. This is acheived by a process of plugging the bronze plate with plugs of graphite.
Mould DME standard elements Made to order from china
We are the official distributors in China for DME standard elements. This manufacturer, china factory for the supply of articles related to the mould, offers a complete range for the mould bushing bearing and plate sector, which allows us to offer a global service to mould makers and injectors.
ZHEJIANG TOP BEARINGS CO., LIMITED offers an extensive range of standard DME elements, including everything that is necessary for the manufacture of a mould and its subsequent use. Thus, we offer items for injection, surface finishing, cooling, ejection, guiding and demoulding products, among others. In addition, our wide range of DME plates and mould bronze bushing & thrust washer offers specific solutions to any need.
CHINA guide components
--Guiding elements with graphite
--Die Bushing Cams Plate
--Other Bronze Bearing elements
--Mould Bushing
They are made of either steel or aluminum bronze with self-lubricating graphite and are available in a variety of inch and metric (NAAMS) sizes.
Guide Components - designed for small and medium parts processing plants butt stamping orders
Each slider and copper sleeve stamping processing parts have real drawings, contact us for free quotation and contact with the buyer to confirm the order according to your drawings, saving time and eliminating screening. For more information and quotations, contact us.
MATERIAL | BRONZE/HARDNESS |
/BODY | |
Bronze + Graphite | HB > 190 |
W1 | S | L1 | W2 | L1 | L3 |
100 | 30 | 125 | 60 | 50 | 132.8 |
125 | 30 | 125 | 85 | 50 | 132.8 |
160 | 30 | 125 | 120 | 50 | 132.8 |
100 | 45 | 150 | 60 | 45 | 127.9 |
125 | 45 | 150 | 85 | 45 | 127.9 |
160 | 45 | 150 | 120 | 45 | 127.9 |
100 | 60 | 170 | 60 | 45 | 127.9 |
125 | 60 | 170 | 85 | 45 | 127.9 |
160 | 60 | 170 | 120 | 45 | 127.9 |
To know more about Cam Units Full Range
Over the years, ZHEJIANG TOP BEARINGS CO., LIMITED has become the world's leading partner in standard parts for cutting, stamping and large-scale mold production, as well as launching projects in plastic molds and casting molds.
You may also be interested in Bushes Bronze. Bushes - C95400 Aluminium Bronze - Graphite Plug - Flanged
APPLICATION
Used for dies, moulds and heavy machinery.
