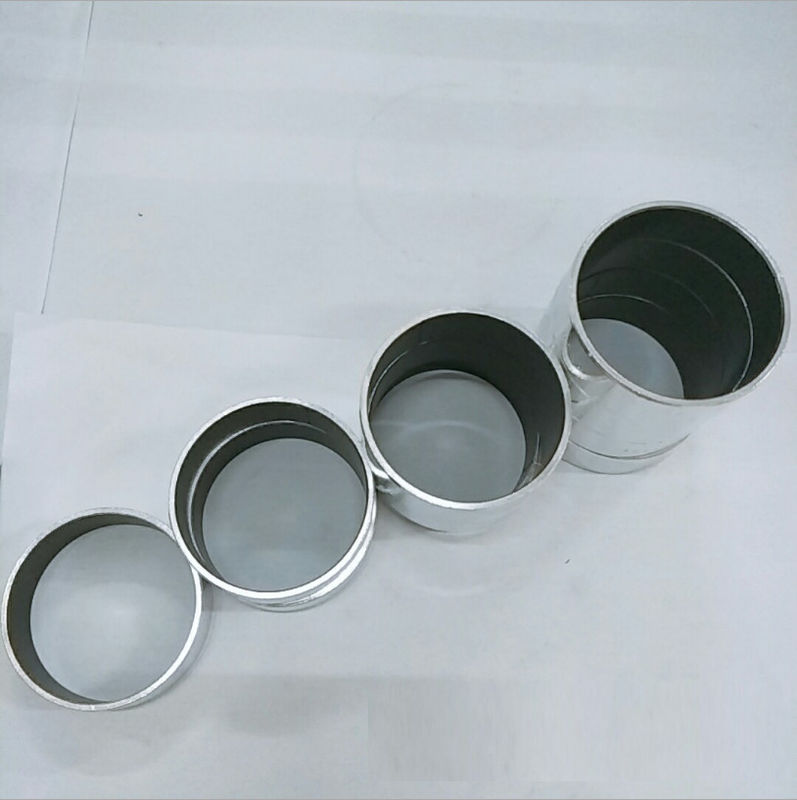

ISO 16949 Steel Backed PTFE Self Lubricating Bearings Oilless

ISO 16949 Steel Backed PTFE Self Lubricating Bearings Oilless

  • ISO 16949 Steel Backed PTFE Self Lubricating Bearings Oilless
  • ISO 16949 Steel Backed PTFE Self Lubricating Bearings Oilless
ISO 16949 Steel Backed PTFE Self Lubricating Bearings Oilless
Product Details:
Place of Origin: China
Brand Name: TOB PTFE Self-Lubrication Bearings
Certification: ISO 16949
Payment & Shipping Terms:
Minimum Order Quantity: negotiated
Price: negotiated
Packaging Details: Cartons and Pallets
Delivery Time: negotiated
Payment Terms: T/T
Supply Ability: negotiated
Contact Now
Detailed Product Description
Material: Carbon Steel + Bronze+ Ptfe Supply Ability: Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings
Characteristic: Low-maintenance And Maintenance-free Plain Bearings Production Feature: Bushes, Collar Bushes, Washers, Strips Or Special Designs
Plating: Tin Or Copper Plated Size: Customized Size,Customized Request, All Standard, As Per Customer's Request
Lubricating: Oilless Packaging Details: Export Standard Packing
High Light:

Oilless Self Lubricating Bearings


ISO 16949 Self Lubricating Bearings


PTFE Self Lubricating Bronze Bushings

Steel-Sintered-Bronze-PTFE Composite Material - maintenance-free

No minimum on steel backed ptfe bushing & sliding Bearings. Metric Size or inch size, Custom Lubricating Parts Available. Types: PTFE Bushing, POM Bushes,Cast Bronze Bearings, Oil Impregnated Bearings, Plug Graphite Bearings, Vehicle Bushings, Wear Plate.

Material - Characteristics


Steel with porous sintered tin bronze layer, which is coated with PTFE as sliding layer.

  • DU self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions

  • Bushing material suitable for lubricated applications

  • Anti-friction bearing suitable for linear, oscillating and rotating movements

  • Approved to standard FAR 25.853 and FAR 25.855 - Federal Aviation Regulations – making it suitable for interior aircraft applications

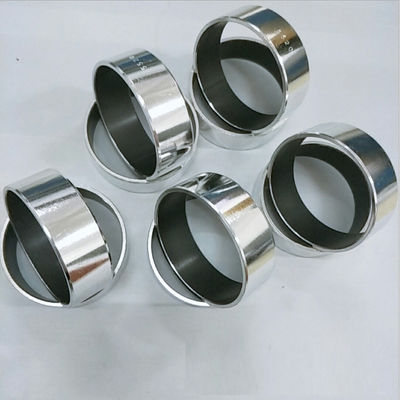

PTFE coated bushings

Application Data


temperature range -200 up to +280 °C
max. PV value
dry 3,6 MPa m/s
oil lubricated 10 MPa m/s
max. sliding velocity
dry 2,5 m/s
oil lubricated 5 m/s
max. surface pressure stat. 250 MPa - dyn. 140 MPa


thermal expansion 11 x 10-6 °C-1
solid lubricant PTFE



Suitable for dry running with a low coefficient of friction, low wear rate, good sliding characteristics, the transfer film created will protect the mating metal surface. Suitable for rotary and oscillating movement, high chemical resistance, lower absorption of water and reduced swelling. Also performs well with lubrication.



1. PTFE/Fibre mixture thickness 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides Max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE-Fibre mixture.
3. Low-carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.

Frictional coefficient:



For Bearing Design


Recommended fitting


shaft f7
housing H7
bearing according to DIN ISO 3547-1 (formerly DIN 1494)

Thermal expansion has to be taken into account at temperatures above 80 °C.


Mating Material


surface roughness Ra = 0,4 μm
minimum hardness > 200 HB


Product Description


Product Name

High Quality Hardened Stainless Steel Sleeve PTFE DU Bushing


1)Metal:Stainless steel,Steel(Iron,)Brass,Copper,Aluminum
3)OEM according to your request

Surface treatment

Anodized different color,Mini polishing&brushing,Electronplating(zinc plated,nickel plated,chrome plated),Power coating & PVD coating,Laser marking&Silk screen,Printing,Welding,Harden etc.




CNC machining,Auto lathing/turning,Milling,Grindin, Tapping Drilling,Bending,Casting,Laser cutting


ISO9001:2008,SGS, ROHS

Delivery Time
