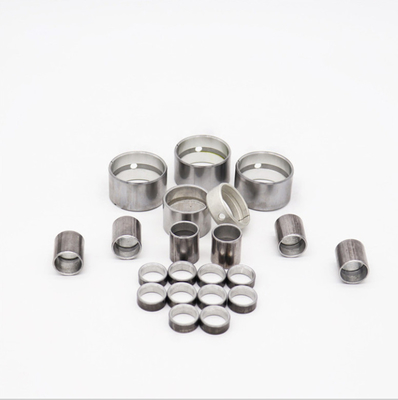

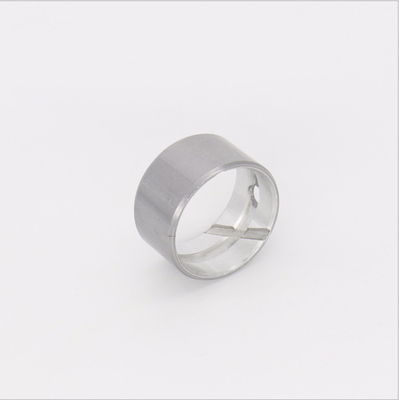

Oilless Bronze Engine Bimetal Bearing Bushes AISn20Cu Steel

Oilless Bronze Engine Bimetal Bearing Bushes AISn20Cu Steel

  • Oilless Bronze Engine Bimetal Bearing Bushes AISn20Cu Steel
  • Oilless Bronze Engine Bimetal Bearing Bushes AISn20Cu Steel
  • Oilless Bronze Engine Bimetal Bearing Bushes AISn20Cu Steel
Oilless Bronze Engine Bimetal Bearing Bushes AISn20Cu Steel
Product Details:
Place of Origin: China
Brand Name: TOB Bimetal Bearings
Certification: ISO 16949
Payment & Shipping Terms:
Minimum Order Quantity: negotiated
Price: negotiated
Packaging Details: Cartons or Pallets
Delivery Time: negotiated
Payment Terms: T/T
Supply Ability: negotiated
Contact Now
Detailed Product Description
Material: Steel + AISn20Cu Certification: Engine Bushings
Application: Track Rollers, Truck Brakes And Agriculture Machinery, Agricultural, Mechanical Handling And Lifting Applications Characteristic: Thin Walled Bearing,Low-maintenance And Maintenance-free Plain Bearings
Type: Sleeve Bushing Packing: Export & Import Bimetal Bushings International Carton Standard
High Light:

Oilless Bronze Bimetal Bearing Bushes

,

Oilless Bronze Engine Bushings

,

AISn20Cu Bimetal Steel Bearing

Oilless Bronze Engine Bushings Bimetal Bearing Bushes AISn20Cu Steel

Engine Bushings AISn20Cu Steel Bimetal Bushing

Engine Bushings AISn20Cu Steel Bimetal Bushing, AISn20Cu Bushes

Looking for bronze bushes factory direct sale? You can buy factory price bronze bushes from a great list of reliable China bronze bushes manufacturers, suppliers

Oilless Bronze Guide Bushes with Graphite - find quality bronze bushes, Sliding Bearings & bronze bushes from China.


JF-20 high tin aluminum base bearing is made of steel plate with AISN20Cu material rolled on the surface. The product has medium fatigue strength and bearing capacity, good corrosion resistance, good sliding performance and other characteristics.
The product is commonly used as bushing of medium and small power internal combustion engine, bushing of train engine and bushing of air compressor. It is a new product to replace Babbitt alloy.



Bimetal Bearing Bushes AISn20Cu Steel





bimetal bearings bushings

AISn20Cu Bushings



JF20 High Percentage Aluminum Alloy AISn20Cu Bushings Bitemal Bearings ​





JF-20 is a bearing with a high percentage of tin and aluminum composition.With stecl as back and press AISn20Cu as lining.the bushing is of fairly good performance in anti-fatigue, load capacity,anti-corrosion and smooth sliding movement.It is widely applied under high speed and low load.It can be made into bearing shells for internal combustion engine with mid or low power or bearing shells for trains,air compressor and coling machines.It is a good substitution for Babbit material.



Sliding layer can be machined with lubricating grooves and/or with grease indents

Aluminum-tin alloy for hydrodynam-ic applications

Steel+AlSn20Cu



JF-20 high percentage of tin with aluminum alloy bushing is backing on low carbon steel, pressed with AISn20Cu as liner. It has fairly good performance in anti-fatigue and good load capacity, anti-corrosion and smooth sliding movement.
It usually used as engine bearing with middle or low power, air compressor bushing. It is a good substitution for Babbit material.



Aluminum alloy AISn20Cu Temperature Max 150℃
Load capacity 30N/mm² Harderness alloy HB30~40

bimetal bushing



Product Introduction


High tin aluminum bearing, is based on steel matrix, the surface of roller AISn20Cu material products. This product has the secondary fatigue strength and bearing capacity, good corrosion resistance, good sliding properties, etc. This product is used for medium and small power of internal combustion engine bearing shell machine collar axis, the train engine bearings, air, is replacing babbitt novel products.



Technical Data



Maximum dynamic load 90P N/mm² The highest temperature(°C) Grease lubrication 150°C
Maximum linear velocity Grease lubrication —— Fluid lubrication 250°C
High PV value —— Match the diameter of axle hardness HRC ≥270
The coefficient of friction(μ) ——

roughness

Ra

0.16~0.63
Maximum linear velocity Fluid lubrication 15 Alloy layer hardness 30~40
High PV value 8 Coefficient of thermal conductivity 47W/mk
The coefficient of friction(μ) 0.04~0.12 Linear expansion coefficient (axial) 18×10-6/K





Thickness Tolerance Between Inner Hole Machining And Non-machining




Norminal Thiickness

Tolerances of Series B (non-machinable)

Tolerances of Series C (non-machinable)
1.0 -0.025 +0.25
+0.15
2.0 -0.030 +0.25
+0.15
2.5 -0.035 +0.25
+0.15
3.0 -0.040 +0.30
+0.15
3.5 -0.045 +0.30
+0.15
3.5 -0.050 +0.30
+0.15



Application Field


Engineering machinery: end of popular institutions supporting wheel shaft sleeve, towing axle sleeve, tensioning shaft sleeve; Auto industry: the balance shaft lining, steel pin bushing, steering knuckle main shaft sleeve shaw, connecting rod bushings, valve rocker arm shaft sleeve, CAM shaft collar, differential bushings, transmission shaft sleeve, the internal combustion engine spindle watts, thrust washers, And plunger pump side piece, such as piece of gear pump side.

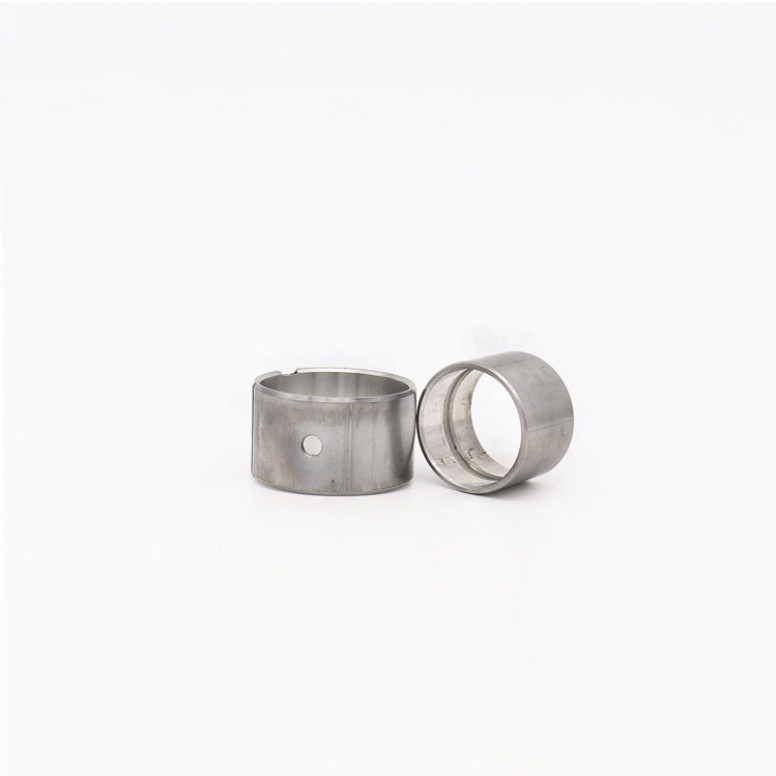

Oil Holes Form



bimetal bushing



Buckles Form











Size Customizable
Certification ISO9001, TS16949
Processing methods Cold-extrusion
Operating temperature 150℃(Grease lubrication),250℃(Oil lubrication)
Material Steel+AlSn20Cu
Surface treatment Copper Plating/Tin Plating
Typical Application High speed,heavy load engine main shaft and air compressor ,cooling machine ,etc.

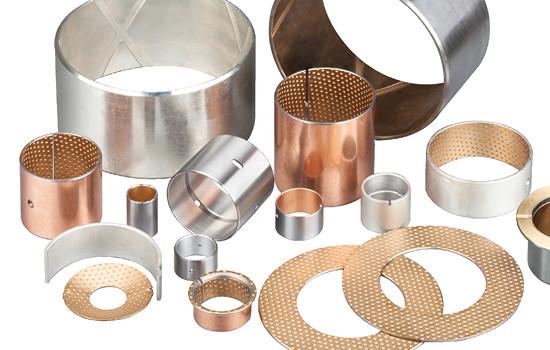

Other Bimetal Boundary Lubrication Bearings



1. It is a steel and copper alloy product with low carbon steel plate as the matrix material and surface sintered CuPb10Sn10 or CuSn6Zn6Pb3 material. The product is a kind of balance bridge bushing and gasket for heavy duty vehicles with the strongest bearing capacity among the double alloy bearings.The slave wheel of a bulldozer;Automotive steel bushing, all used in this product. It is a widely used high - load low - speed sliding bearing.



2. The product is made of CuPb24Sn4 alloy sintered on the surface of a steel plate.The product has good anti-fatigue strength and bearing capacity.Suitable for medium speed medium load.There are occasions for oil sliding.When the surface is plated with soft alloy, it can be used as bearing and connecting rod bushing for high speed internal combustion engine to achieve good wear resistance and fatigue resistance.



3. The product is made of CuPb30 material sintered on the surface with steel plate as the matrix.Due to the high lead content, the product has good bite resistance and foreign body embedding.If the working surface is plated with soft alloy material, it can be used as high speed, medium and low load internal combustion engine spindle, connecting rod bushing, rocker arm bushing;Oil mercury side friction sheet.



4. Lead-free bimetal bearing, is an environmentally friendly bimetal bearing, it is based on low carbon steel plate as the matrix, the surface of the sintered CuSn6.5P0.1 steel copper alloy products.The product has high fatigue strength and bearing capacity, good sliding performance, in many cases can replace the lead bimetal bearing or copper sleeve.
