CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets

CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets

  • CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets
  • CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets
  • CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets
CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets
Product Details:
Place of Origin: China
Brand Name: TOB Wrapped Bronze Bearings
Certification: ISO 16949
Payment & Shipping Terms:
Minimum Order Quantity: negotiated
Price: negotiated
Packaging Details: Cartons or Pallets
Delivery Time: negotiated
Payment Terms: T/T
Supply Ability: negotiated
Contact Now
Detailed Product Description
Material: Tin-Bronze CuSn8P Types: Wrapped Bushes, Flanged Bearing, Thrust Washer
Application: Agricultural, Building And Engineering Machines, Etc. Max. Load Pressure: 100 N/mm²
Max. Working Temperature: 150℃ Hardness: HB 90~150
High Light:

bronze thrust washer

,

bronze bearings



Tin-Bronze CuSn8P Wrapped Bearings

Tin-Bronze CuSn8P Wrapped Bearings is made of Tin-bronze CuSn8P with its surface punched with diamond or ball shape oil sockets which are preserved for oil saving. Tin-Bronze CuSn8P Wrapped Bearings has good anti-fatigue and load, anti-erosion and abrasion capacity. Tin-Bronze CuSn8P Wrapped Bearings are widely applied in conditions of heavier load but low running velocity, such as on agricultural, building and engineering machines, etc.



Tin-Bronze CuSn8P Wrapped Bearings is made of high density copper alloy with special formulations, rolled it is made of high quality low-carbon steel strip, rolled and sintered with lozenge or spherical oil indentations on surface. Tin-Bronze CuSn8P Wrapped Bearings is with high density, good load capacity and wear-resistance. It is used in lifting machinery, construction machinery and mining machinery etc.





Product NO. Chemical Compositions
TOB 090 Cu Sn P
91.3 8.3 0.2



Physical and Mechanical Performance

Performance Index Data Performance Index Data
Max. Load Pressure 100N/mm² Mating Axis Hardness ≥50 HRC
Max. Linear Velocity 2 m/s Roughness Ra=0.4~1.0
Max. PV value 2.8N/mm²·m/s Max. Working Temperature 150℃
Tensile Strength 460N/mm² Friction Coefficient μ 0.05~0.20
Yield Strength 260N/mm² Heat Conducting Coefficient 58 W/(m*k)
Hardness HB 90~150 Heat Expansion Coefficient 18.5 10^-6k^-

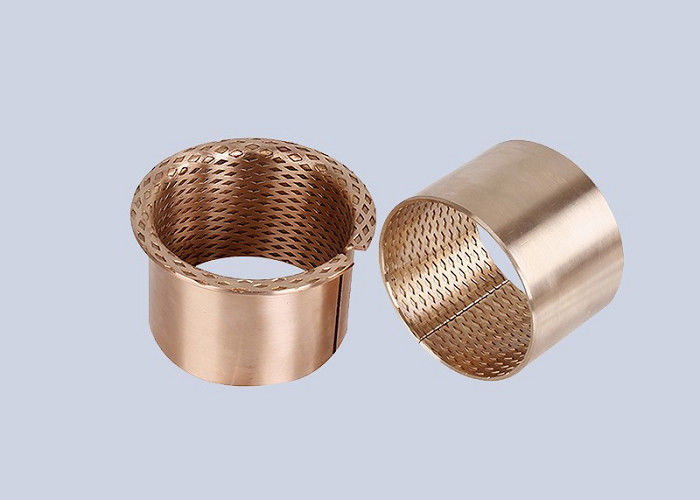

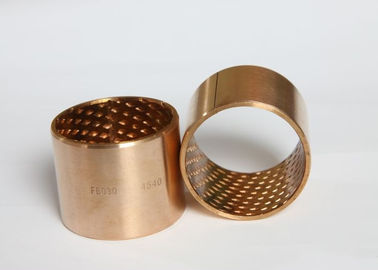

CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets 0CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets 1

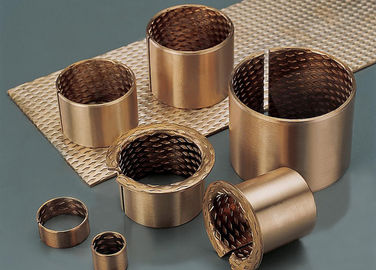

CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets 2
