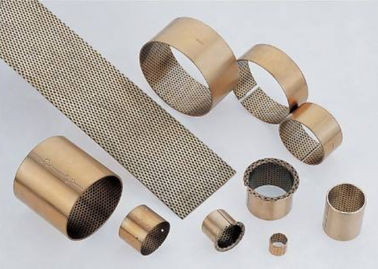

Gearbox Anti Erosion Wrapped Bronze Bearing With Special Solid Lubricant

Gearbox Anti Erosion Wrapped Bronze Bearing With Special Solid Lubricant

    • Gearbox Anti Erosion Wrapped Bronze Bearing With Special Solid Lubricant
    • Gearbox Anti Erosion Wrapped Bronze Bearing With Special Solid Lubricant
  • Gearbox Anti Erosion Wrapped Bronze Bearing With Special Solid Lubricant

    Product Details:

    Place of Origin: China
    Brand Name: TOB Wrapped Bronze Bearings
    Certification: ISO 16949

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiated
    Price: negotiated
    Packaging Details: Cartons or Pallets
    Delivery Time: negotiated
    Payment Terms: T/T
    Supply Ability: negotiated
    Contact Now
    Detailed Product Description
    Material: Tin-Bronze CuSn8Pfills With Special Solid Lubricant In The Sockets Types: Wrapped Bushes, Thrust Washer
    Application: In Conditions Of Heavier Load But Mediate Running Velocity, Such As On Engineering Machines, Gearbox, And Clutch On The Automotive Vehicles, Etc. Heat Conducting Coefficient: 58 W/(m*k)
    Max. PV Value: 2.8N/mm²·m/s Max. Load Pressure: 100N/mm²



    Gearbox Anti Erosion Wrapped Bronze Bearing With Special Solid Lubricant

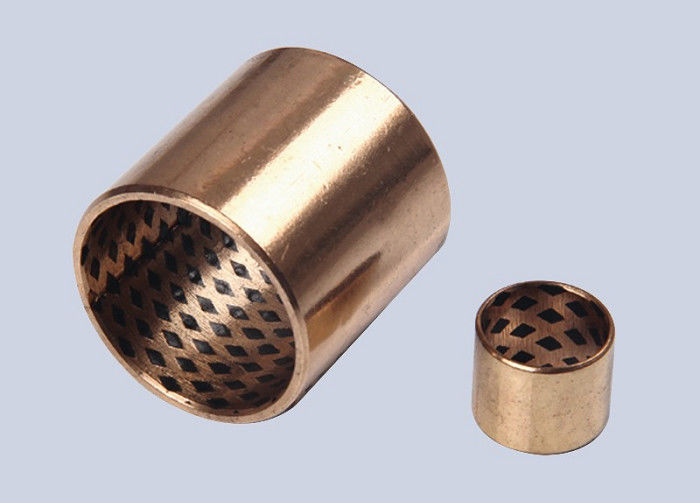

    It is made of Tin-bronze CuSn8P that is of high density. Its surface is punched with oil sockets by certain angle and density. There fills with special solid lubricant in the sockets, which endows the products with fairly small friction coefficient. Therefore, it can maintain a good lubrication capability when oil is temporarily run out. In addition, It has good anti-fatigue and load, anti-erosion and abrasion capacity. The products are widely applied in conditions of heavier load but mediate running velocity, such as on engineering machines, gearbox, and clutch on the automotive vehicles, etc.



    Product NO. Chemical Compositions
    TOB 093 Cu Sn P
    91.3 8.3 0.2



    Physical and Mechanical Performance

    Performance Index Data Performance Index Data
    Max. Load Pressure 100N/mm² Mating Axis Hardness ≥50 HRC
    Max. Linear Velocity 2 m/s Roughness Ra=0.4~1.0
    Max. PV value 2.8N/mm²·m/s Max. Working Temperature 150℃
    Tensile Strength 460N/mm² Friction Coefficient μ 0.05~0.20
    Yield Strength 260N/mm² Heat Conducting Coefficient 58 W/(m*k)
    Hardness HB 90~150 Heat Expansion Coefficient 18.5 10^-6k^-



    Gearbox Anti Erosion Wrapped Bronze Bearing With Special Solid LubricantGearbox Anti Erosion Wrapped Bronze Bearing With Special Solid Lubricant



    Gearbox Anti Erosion Wrapped Bronze Bearing With Special Solid Lubricant
