POM Boundary Lubricating Bearings Low Carbon Steel + Porous Bronze + Yellow POM

POM Boundary Lubricating Bearings Low Carbon Steel + Porous Bronze + Yellow POM

  • POM Boundary Lubricating Bearings Low Carbon Steel + Porous Bronze +  Yellow POM
  • POM Boundary Lubricating Bearings Low Carbon Steel + Porous Bronze +  Yellow POM
POM Boundary Lubricating Bearings Low Carbon Steel + Porous Bronze +  Yellow POM
Product Details:
Place of Origin: China
Brand Name: TOB POM Boundary Lubricating Bearings
Certification: ISO 16949
Payment & Shipping Terms:
Minimum Order Quantity: negotiated
Price: negotiated
Packaging Details: Cartons and Pallets
Delivery Time: negotiated
Payment Terms: T/T
Supply Ability: negotiated
Contact Now
Detailed Product Description
Material: Low-Carbon Steel + Porous Bronze + Yellow POM Types: Wrapped Bushes, Thrust Washer
Application: Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc. Hardness: >270 HB
Working Temperature: -40~+120℃ Max. PV Value: Grease 2.8 N/mm²·m/s, Oil 50 N/mm²·m/s
High Light:

boundary lubrication bearing

,

pom bearing

POM Boundary Lubricating Bearings Low Carbon Steel + Porous Bronze + Yellow POM

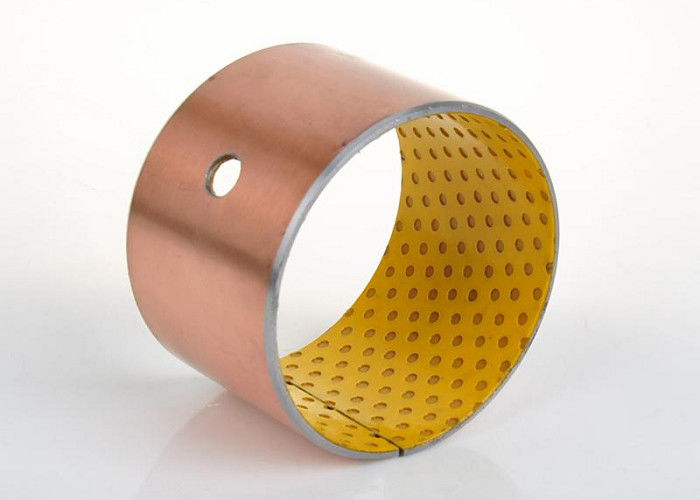

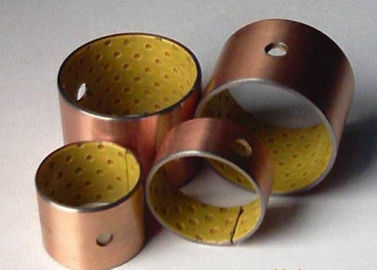

It is designed for marginal lubricating bearing, backed with copper-plated steel with porous bronze sintered on it and polymers (POM) imbedded into the bores of the bronze. The steel back provides the products with stronger mechanic strength and load capability. Oil dents stamped on the surface of the polymer can achieve good lubrication between the bearing and its mating axis. It is good of anti-abrasion and load capability. The plating coating on the surface is erosion protective. And it is environment protective as no lead includes in the surface polymer POM. This series are widely used on automotive chassis, forging machines, mine quarrying machines, metal melting and casing machines and in water irrigating and steel rolling industries, etc.



Physical and Mechanical Performance

Performance Index Data Performance Index Data
Max. Load Static Load 250N/mm² Friction Coefficient Grease Lubrication 0.15~0.25
Dynamic Load 140N/mm² Oil Lubrication 0.05~0.15
Oscillation Load 70N/mm² Mating Axis Hardness >270 HB
Linear Velocity Grease Lubrication 2.5 m/s Roughness Ra=0.4~1.25
Oil Lubrication >3 m/s Working Temperature -40~+120℃
Max. PV value Grease Lubrication 2.8 N/mm²·m/s Heat-conducting Coefficient 52 W/(m*k)
Oil Lubrication 50 N/mm²·m/s Heat-expansion Coefficient (Axial) 11*10^-6k



Physical and Mechanical Performance

Normally, the surface polymer is chemical-erosion resistant quality. So its erosion-prevention quality is primarily decided by the quality of the steel back and its plating layer. Air-erosion could be effectively prevented if the steel back is bronze or tin-plated. If the bush is to be used in erosive environment, the steel back needs to be plated with zinc, nickel or nickel-chrome ally, etc.



POM Boundary Lubricating Bearings Low Carbon Steel + Porous Bronze +  Yellow POM 0POM Boundary Lubricating Bearings Low Carbon Steel + Porous Bronze +  Yellow POM 1



POM Boundary Lubricating Bearings Low Carbon Steel + Porous Bronze +  Yellow POM 2
