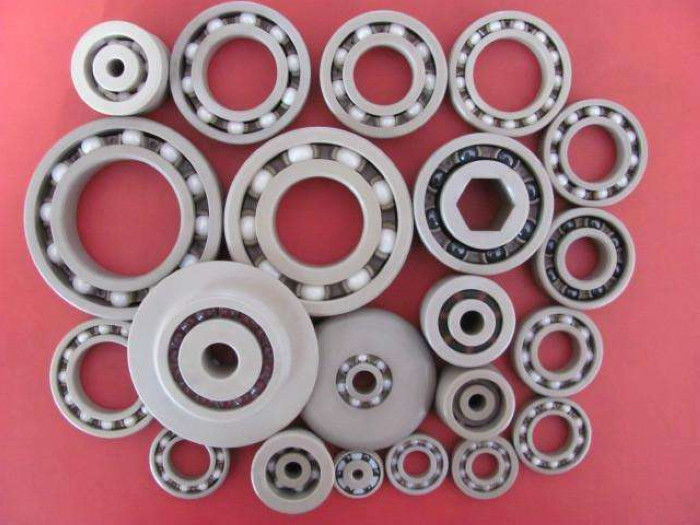

Plastic Plain Bearings 260℃ Working Temperature Peek Ball Bearings

Product Details:

Place of Origin:	China
Brand Name:	TOB Plastic Bearing
Certification:	ISO 16949

Payment & Shipping Terms:

Minimum Order Quantity:	negotiated
Price:	negotiated
Packaging Details:	Cartons or Pallets
Delivery Time:	negotiated
Payment Terms:	T/T
Supply Ability:	negotiated

Contact Now

Detailed Product Description

Material:	PEEK / PI	Basic Properties:	High Temperature Application
Working Temperature:	PEEK At 260℃ In Long Time	Material Of Rings:	PEEK Or PI
Material Of Cage:	PTFE, PEEK Or PI	Material Of Balls:	ZrO2 Or Si3N4
High Light:	plastic ball bearings , peek ball bearings

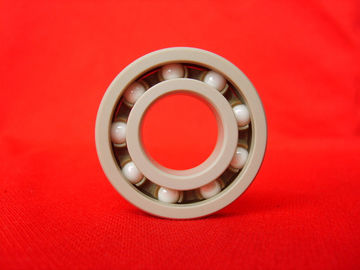

PEEK High Temperature Application Plastic Bearings

PEEK could work at 260℃ in long time. Moreover PEEK High Temperature Application Plastic Bearings have excellent anti-corrosion performance, could be used in strong acid and alkali environment. So generally PEEK High Temperature Application Plastic Bearings are used to manufacture bearings to realize precision running in rigor environment.

The Density of PEEK plastic bearings is 1.32 g/cm3, Sliding friction coefficient is 0.30-0.38, Short-time highest application temperature is 300℃.
Generally the rings made with PEEK or PI, Cage with PTFE, PEEK or PI, and ball with ZrO2 or Si3N4.
As newly developing engineering plastic material, PEEK have been approved have the strongest mechanical strength and could endure the highest temperature among all the plastic material. As the material is expensive, the costs are high.

Basic properties of staple engineer plastic
Material	HDPE	PP	POM	PA66	PVDF	PPS	PTFE	PEEK
Long-time working temp.	90	100	110	100	150	230	260	280
Density	g/cm3	0.91	1.42	1.14	1.77	1.35	2.18	1.32
Ball indentation hardness	50	80	170	170	80	190	30
Tensile stress	25	30	70	80	50	75	25	95
Sliding friction coefficient	0.29	0.3	0.34	0.35-0.42	0.3		0.08-0.1	0.3-0.38
Melted temperature	130	165	175	260	172	280	327	343
Short-time highest application temperature	90	140	150	170	150	260	260	300
Coet of Inear expansion (10^-5/K)	13-15	17	10	8	13	5	12	5
Dielectric constant at 1 Mhz(10^6HZ)	2.4	2.25	3.7	3.6-5	8		2.1	3.2-3.3
Volume resisrivity (Ω·cm)	>10^15	>10^24	>10^14	10^13	10^12	>10^13	10^14	10^13
flammability UL94	+	+	-	(+)	(+)	-	+	+
Anti-weathering	-	-	-	-	-	-	+	-
Note: + =resistant; (+) =partly resistant; - =non-resistant

Chemical properties of Engineer plastic
Chemical Composition	Material
Chemical Composition	PI	PEEK	PTFE	PVDF	PA66	POM	PP	HDPE	ABS
Acrtate	+	+	+	(+)	(+)	+	+	(+)	+
Formic acid (10% water)	+	+	+	+	-	-	+	+	+
Ammonia (10% water)	-	+	+	+	+	(+)	+	+	+
Aether	+		+	+	+	+	+	+
Petrol	+	+	+	+	+	+	(+)	(+)	(+)
Bori acid (10% water)		+	+	(+)	+	+	+	+	+
Aminoform	+	+	+		-	-	(+)	-	-
Aeti aid 100%	(+)	-	+		-	-	+	+	-
Aceti aid (10% water)	+	+	+		-	(+)	+	+	+
HF			+		-	-	+	+	(+)
Formaldehyde aqu (30% water)		+	+	+	+	-	+	+	+
Glycerin	+		+		+	+	+	+	+
Iodine, Glycol	+		+	(+)	-	(+)	+	+	(+)
K2Cr2O7 (10% water)			+	+	+	-	+	+	+
KMnO4 (1% water)	+	+	+	+	-	(+)	+	+	(+)
2-Hydronyprpionic 10%	+		+	+	-	-	+	+	-
2-Hydronyprpionic 90%	+	+	+	+	+	(+)	+	+	+
Nad (10% water)	+	+	+	+	+	+	+	+	+
NaNO3 (10% water)	+		+	+	+	+	+	+	+
NaOH (50% water)		+	+	+	+	-	+	+	+
NaOH (5% water)			+	+	+	-	+	+
Oxalic (10% water)	+	+	+	+	(+)	(+)	+	+	+
Tetracarp	+		+	+	(+)	+	-	-	(+)
H3PO3 100%		+	+		-			+	+
H3PO4 (10% water)		+	+	+	-	-	+		+
NHO3 (2% water)	+	+	+	+	-	-	+	+	+
HCL (2% water)	+	+	+	(+)	-	-	+	+	+
H2SO4 98%		-	+		-	-	+	(+)	-
Soap liquid			+	+	+	+	+	+
Alkaliliquid (10% water)			+	+	+	+	+	+	+
Toluene	+	+	+	+	+	+	+	(+)	-
Water, cold	+	+	+	+	+	+	+	+	+
Water, hot		+	+	+	(+)	-	+	+	+
H2O2 (30% water)		(+)	+	+	-	-	+	+	+
H2O2 (0.5% water)	+		+	+	-	(+)	+	+	+
Asphalt	+		+		(+)	+	(+)	(+)
Note: + =resistant; (+) =partly resistant; - =non-resistant
