Low Carbon Steel Bi Metal Bearings Tin - Lead - Bronze Alloy For Transmission Gear Box

Low Carbon Steel Bi Metal Bearings Tin - Lead - Bronze Alloy For Transmission Gear Box

    • Low Carbon Steel Bi Metal Bearings Tin - Lead - Bronze Alloy For Transmission Gear Box
    • Low Carbon Steel Bi Metal Bearings Tin - Lead - Bronze Alloy For Transmission Gear Box
  • Low Carbon Steel Bi Metal Bearings Tin - Lead - Bronze Alloy For Transmission Gear Box

    Product Details:

    Place of Origin: China
    Brand Name: TOB Bimetal Bearings
    Certification: ISO 16949

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiated
    Price: negotiated
    Packaging Details: Cartons or Pallets
    Delivery Time: negotiated
    Payment Terms: T/T
    Supply Ability: negotiated
    Contact Now
    Detailed Product Description
    Material: Low Carbon Steel Wth Tin-Lead-Bronze Alloy (CuSn10Pb10) Types: Wrapped Bushes With Flange
    Application: Con-rod Of Automobile Engines, Transmission Gear-box, Construction & Agriculture Machinery Etc. Alloy Hardness: HB 60~90
    Max. Load: 150N/mm² Max. Working Temperature: Grease Lubrication Is 150℃, Oil Lubrication Is 250℃

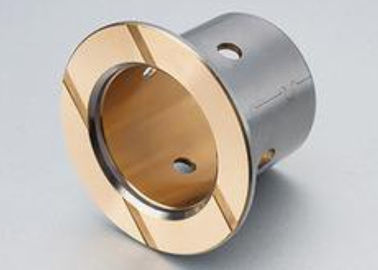

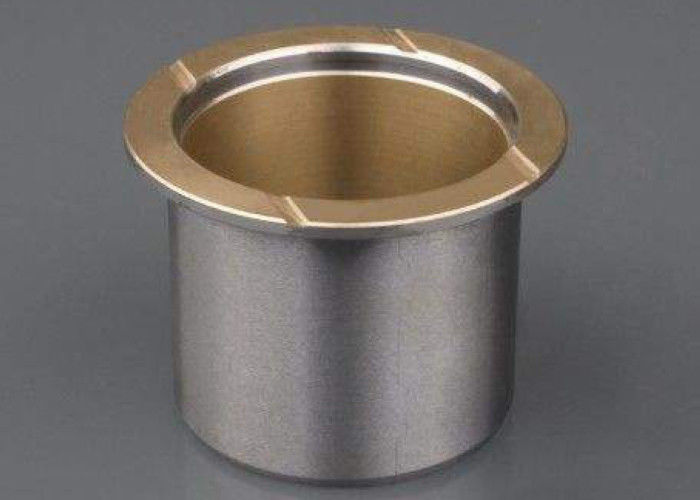

    Bimetal Flange Bearings , Low Carbon Steel Wth CuSn10Pb10

    CuSn10Pb10 Flange Bimetal Bearings is backed with high quality low carbon steel with Tin-Lead-Bronze alloy (CuSn10Pb10) sintered on its surface.

    CuSn10Pb10 Flange Bimetal Bearings is sintered several times under high temperature and then stick firmly onto the steel plate. CuSn10Pb10 Flange Bimetal Bearings has high fatigue strength, load capacity and shock resistance.

    CuSn10Pb10 Flange Bimetal Bearings is used to make wrapped bushes, thrust washer and bushes on connecting rod level of gas engine, etc.

    To effectively decrease abrasion, CuSn10Pb10 Flange Bimetal Bearings' alloy surface can be machined with ball oil sockets for easier oil storage. When necessary, an anti-erosive coating can be plated on the steel back. CuSn10Pb10 Flange Bimetal Bearings can be applied to conditions of mediate load with mediate or high running velocity and conditions with enormous impact load. In mechanical application,




    Physical and Mechanical Performance

    Performance Index Data Performance Index Data
    Max. Load 150N/mm² Mating Axis Hardness ≥53 HRC
    Linear Velocity Grease Lubrication 2.5 m/s Roughness Ra=0.13~0.63
    Oil Lubrication 5 m/s Max. Working Temperature Grease Lubrication 150℃
    Max. PV value Grease Lubrication 2.8N/mm²·m/s Oil Lubrication 250℃
    Oil Lubrication 10N/mm²·m/s Friction Coefficient 0.05~0.15
    Anti-tensile Strength 185 N/mm² Heat-conducting Coefficient 47 W/(m*k)
    Alloy hardness HB 60~90 Heat-expansion Coefficient 18*10^-6k


    Alloy Chemical Compositions

    Content Cu Pb Sn Zn P Fe Ni Sb Others
    Remainder 9-11 9-11 0.5 0.1 0.7 0.5 0.2 0.5




    Low Carbon Steel Bi Metal Bearings Tin - Lead - Bronze Alloy For Transmission Gear Box




    Low Carbon Steel Bi Metal Bearings Tin - Lead - Bronze Alloy For Transmission Gear Box
