Place of Origin: | China |
Brand Name: | TOB Steel Bearings |
Certification: | ISO 16949 |
Minimum Order Quantity: | negotiated |
---|---|
Price: | negotiated |
Packaging Details: | Cartons or Pallets |
Delivery Time: | negotiated |
Payment Terms: | T/T |
Supply Ability: | negotiated |
Material: | Stainless Steel Material + Solid Lubricant | Application: | Auto Molds And Frame Of The Injection Molders, Etc. |
---|---|---|---|
Types: | Slide Block | Hardness: | ≥150 HB |
Working Temperature Limits: | -100~+400 ℃ | Max. Load Pressure: | 70 N/mm² |
High Light: | flanged roller bearing,cylinder roller bearing |

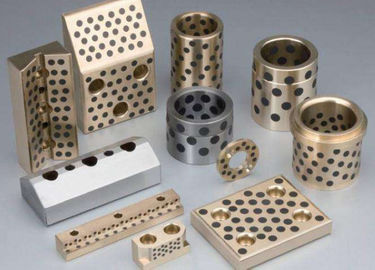

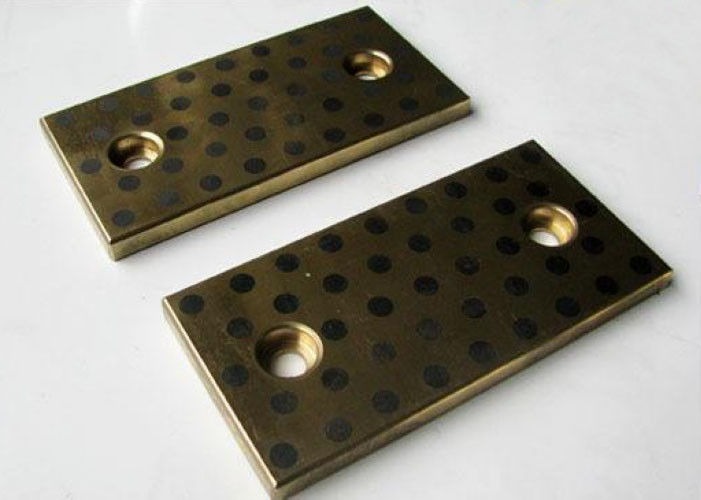

Stainless Steel OILES 500 # Slide Block
Stainless Steel OILES 500 # Slide Block is backed with stainless steel. The surface is regularly and finely machined with sockets in which solid lubricant is filled. Stainless Steel OILES 500 # Slide Block with Flange has much stronger anti-pressure ability, so Stainless Steel OILES 500 # Slide Block can be applied on the prop-up positions of the windlass or crane, etc.
Applicable conditions of C303T: Normal conditions (Atmosphere)
Primary compositions of C303T: Graphite
Besides the standard products displayed in the size list, we provide with the following non-standard product or specific products.
Chemical Compositions
Product NO. | Chemical Compositions | ||||||
TOB 057 | C | Si | Mn | S | P | Ni | Cr |
<0.07 | <1.00 | <2.00 | <0.030 | <0.035 | 8.00-11.00 | 17.00-19.00 |
Physical and Mechanical Performance
Performance Index | Data | Performance Index | Data | ||
Hardness | HRC | ≥150 | Max. PV Value | N/mm².m/s | 0.6 |
Max. Load | N/mm² | 70 | Working Temperature Limit | ℃ | -100~+400 |
Max. Linear Velocity | m/s | 0.3 |
