| Place of Origin: | China |
| Brand Name: | TOB Taper Roller Bearings |
| Certification: | ISO 16949 |
| Minimum Order Quantity: | negotiated |
|---|---|
| Price: | negotiated |
| Packaging Details: | Cartons or Pallets |
| Delivery Time: | negotiated |
| Payment Terms: | T/T |
| Supply Ability: | negotiated |
| Material: | GCr15 / AISI52100 / 100Cr6 | ID*OD*W (mm): | 40 X 68 X 19mm |
|---|---|---|---|
| Basic Dynamic Load Ratings/C: | 52.8 KN | Basic Static Load Ratings/C0: | 71 KN |
| Limiting Speed: | 9500 R/min | Clearance: | C2,C0,C3,C4,C5 |
| High Light: | tapered roller bearings single row,taper rolling bearing |
||
Description:
| Model | 32008 |
| Bearing material | GCr15/AISI52100/100Cr6 |
| ID*OD*W (mm) | 40 x 68 x 19mm |
| Seal type | double shields |
| Lead time | Stock or 15-30days |
| Weight(kg) | 0.278 |
| Basic dynamic load ratings/C | 52.8 kN |
| Basic static load ratings/C0 | 71 kN |
| Limiting speed | 9500 r/min |
| Clearance | C2,C0,C3,C4,C5 |
| Vibration Level | V1,V2,V3,V4 |
| Precision Rating | P0,P6,P5, |
| MOQ | No MOQ |
| Port | Shanghai |
| Grease | Mobil polyrex EM, Kyodo Yoshi SRL |
| Payment terms | T/T, L/C, Western Union, PayPal |

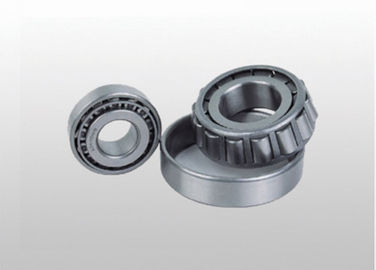

Descriptions of Taper Roller Bearing
Single row tapered roller bearing is the most basic and widely used tapered bearing. It consists of the cone assembly and the cup. It is usually fitted as one of an opposing pair. During equipment assembly, single row bearings can be set to the required clearance (endplay) or preload condition to optimize performance.
Other models
| Bearing No. | d (mm) | D (mm) | B (mm) | Bearing Type |
| 30308 | 40 | 90 | 25.25 | Tapered Roller Bearings |
| 30309 | 45 | 100 | 27.25 | Tapered Roller Bearings |
| 30310 | 50 | 110 | 29.25 | Tapered Roller Bearings |
| 30311 | 55 | 120 | 31.5 | Tapered Roller Bearings |
| 30312 | 60 | 130 | 33.5 | Tapered Roller Bearings |
| 30313 | 65 | 140 | 36 | Tapered Roller Bearings |
| 30314 | 70 | 150 | 38 | Tapered Roller Bearings |
| 31308 | 40 | 90 | 25.25 | Tapered Roller Bearings |
| 32006 | 30 | 55 | 17 | Tapered Roller Bearings |
| 32007 | 35 | 62 | 18 | Tapered Roller Bearings |
| 32008 | 40 | 68 | 19 | Tapered Roller Bearings |
| 32009 | 45 | 75 | 20 | Tapered Roller Bearings |
| 32010 | 50 | 80 | 20 | Tapered Roller Bearings |
| 32011 | 55 | 90 | 23 | Tapered Roller Bearings |
| 32012 | 60 | 95 | 23 | Tapered Roller Bearings |
| 32013 | 65 | 100 | 23 | Tapered Roller Bearings |
| 32014 | 70 | 110 | 25 | Tapered Roller Bearings |
| 32015 | 75 | 115 | 25 | Tapered Roller Bearings |
| 32016 | 80 | 125 | 29 | Tapered Roller Bearings |
| 32017 | 85 | 130 | 29 | Tapered Roller Bearings |
| 32018 | 90 | 140 | 32 | Tapered Roller Bearings |
| 32019 | 95 | 145 | 32 | Tapered Roller Bearings |
| 32020 | 100 | 150 | 32 | Tapered Roller Bearings |
| 32021 | 105 | 160 | 35 | Tapered Roller Bearings |
| 32022 | 110 | 170 | 38 | Tapered Roller Bearings |
