Oilless Self Lubricating Bearings Wrapped By Steel Backing Sinter Bronze Layer And PTFE Antiwar Surface

Oilless Self Lubricating Bearings Wrapped By Steel Backing Sinter Bronze Layer And PTFE Antiwar Surface

    • Oilless Self Lubricating Bearings Wrapped By Steel Backing  Sinter Bronze Layer And PTFE Antiwar Surface
    • Oilless Self Lubricating Bearings Wrapped By Steel Backing  Sinter Bronze Layer And PTFE Antiwar Surface
  • Oilless Self Lubricating Bearings Wrapped By Steel Backing  Sinter Bronze Layer And PTFE Antiwar Surface

    Product Details:

    Place of Origin: China
    Brand Name: TOB PTFE Self-Lubrication Bearings
    Certification: ISO 16949

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiated
    Price: negotiated
    Packaging Details: Cartons and Pallets
    Delivery Time: negotiated
    Payment Terms: T/T
    Supply Ability: negotiated
    Contact Now
    Detailed Product Description
    Material: Low-Carbon Steel + Porous Bronze + PTFE Types: Wrapped Bushes, Flanged Bearing, Thrust Washer
    Application: Printing, Weaving And Tobacco Producing Machines, Gymnastic Equipment, Rock Absorbers, Etc. Working Temperature: -200~+280℃
    Max. Load: Static Load 250N/mm², Dynamic Load 140N/mm² Max. PV Value: Grease 3.6 N/mm²·m/s, Oil 50 N/mm²·m/s
    High Light:

    self lubricating bushings

    ,

    metric sleeve bearings

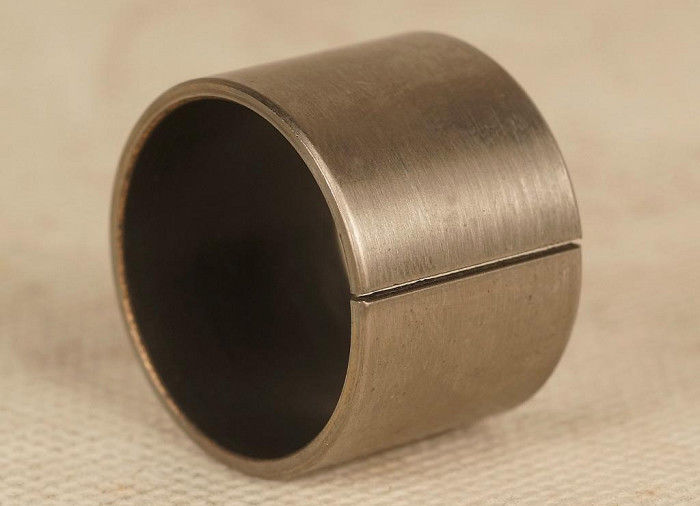

    DU Bushing is wrapped by steel backing, Sinter bronze layer and PTFE antiwar surface.



    Structure:


    1. PTFE with Pb 0.01~0.03mm
    2. Porous bronze 0.2~0.3mm
    3. Bronze backing 0.7~2.3mm



    Characteristics:

    DU bushing(PVB011) has good wear and friction performance over a wide range of load, speed and temperature conditions without lubrication

    This self-lubricating bearing also can perform well with lubrication

    Bronze backing provides improved corrosion resistance compared with PVB010 ollies bearing



    Availability:

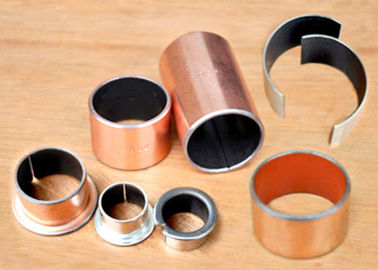

    Standard cylindrical bush, flanged bushing, thrust washers and strips are available.

    Following sizes are standard

    0606DU,0808DU,1010DU,1210DU,1415DU,1515DU,1615DU,1815DU,2020DU,2220DU, 2525DU,2825DU,3030DU,3530DU,3840DU,4030DU,4040DU,4530DU,5040DU,5550DU, 6050DU,6550DU,7060DU,7560DU,8050DU,8560DU,9060DU,9560DU,10080DU

    Special designs can be made according to your requirement

    Lead free type is also available



    Applications:

    Plain dry bushing (PVB011) is widely used in steel metallurgy industry, cement grouting pumps and scrow conveyers of machine, marine and offshore equipment, dyeing machinery and so on



    Technical Data:

    Specific load capacity (static) ≤ 250 [ N/mm² ]
    Specific load capacity (dynamic) ≤ 140 N/mm² at low speeds
    Specific load capacity(rotating oscillating) ≤60N/mŽ¡
    Friction value 0.03 to 0.25 µ
    Temperature -200 to +280 [ °C ]
    Max. dry running Pv (Short-term operation) 3.6N/mŽ¡ï¹¡m/s
    Max. dry running Pv (Continuous operation) 1.8N/mŽ¡ï¹¡m/s
    Max. speed (dry running) 2m/s
    Max. speed (Hydrodynamic operation) >2m/s

    To know more about other DU bearing, please contact us freely.



    Oilless Self Lubricating Bearings Wrapped By Steel Backing  Sinter Bronze Layer And PTFE Antiwar Surface 0
