| Place of Origin: | China |
| Brand Name: | TOB POM Boundary Lubricating Bearings |
| Certification: | ISO 16949 |
| Minimum Order Quantity: | negotiated |
|---|---|
| Price: | negotiated |
| Packaging Details: | Cartons and Pallets |
| Delivery Time: | negotiated |
| Payment Terms: | T/T |
| Supply Ability: | negotiated |
| Material: | Low-Carbon Steel + Porous Bronze + Yellow POM | Types: | Wrapped Bushes, Thrust Washer |
|---|---|---|---|
| Application: | Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc. | Hardness: | >270 HB |
| Working Temperature: | -40~+120℃ | Max. PV Value: | Grease 2.8 N/mm²·m/s, Oil 50 N/mm²·m/s |
| High Light: | boundary lubrication bearing,pom bearing |
||

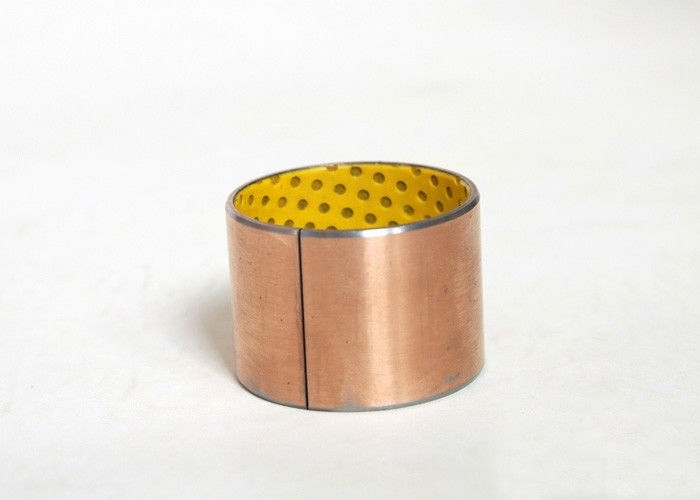

1.Part name: SF-2 bushing
2.Material:Steel backing + Sintered bronze + PTFE
3.Appearance:Tin or Copper plated

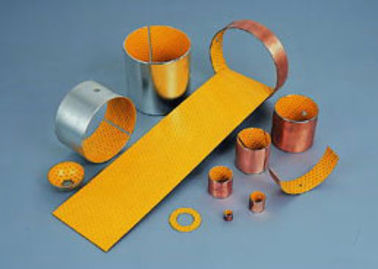

Boundary Lubrication Bushing SF-2 is composed of three layers: steel backing, sintered bronze layer and modified POM layer. It fits well for low speed, high load , normal temperature occasions with rotational , oscillating or frequent stop-start motion. It can works long time under boundary lubrication circumstances, if oil or grease is added, its working life can be prolonged further.
SF-2 It made of high quality low carbon steel backing with sintering porous bronze in the interlayer and rolled POM&PB compound on the surface. It can offer the good load capacity and wear-resistant. The product is applied to vehicle chassis, forging and pressing machine, metallurgical machinery, and hydraulic industry and rolling steel industry and so on.
SF-2H It made of high quality low carbon steel backing with sintering porous bronze in the interlayer and rolled POM compound on the surface. It can offer the good load capacity and wear-resistant. The product is applied to vehicle chassis, forging and pressing machine, metallurgical machinery, and hydraulic industry and rolling steel industry and so on.
SF-2S
SF-2L It made of high quality low carbon steel backing with sintering porous bronze in the interlayer and rolled POM compound on the surface. It can offer the good load capacity and wear-resistant. The product is applied to vehicle chassis, forging and pressing machine, metallurgical machinery, and hydraulic industry and rolling steel industry and so on. SF-2L is with blue PTFE and SF-2S is with orange PTFE.
1. Recommended for applications involving intermittent operation or boundary lubrication...
2. Automotive: suspension joints, kingpin assemblies and stub axles of tucks, automobile driving joint hinges, steering and other linkages, articulation joints, rear chassis hinges, fairleader rollers...
3. Machine tool building industry: spindles in drill, grinding, and milling machines, ram guide plates in multiram presses...
4. Agricultural equipment: gearbox, clutch, bale trips and wheel caster swivels for bale accumulators, front axle pivot bearings, steering idler box bearings and kingpin bearings for harvesters...
5. Be especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.
| Technical Data | ||
| Max. Load | Static | 250N/mm2 |
| Dynamic | 140N/mm2 | |
| Oscillating | 60N/mm2 | |
| PV limit | Dry | 2.8N/mm2. m/s |
| Oil | 22N/mm2. m/s | |
| Temp. limit | -40 ~ +130° C | |
| Friction Coeff. | 0.05 ~ 0.25μ | |
| Speed limit | 0.25m/s | |
| Thermal conductivity | 2.03Kcal/M. br. c | |
| Coeff. Of linear expansion | 51— 10-6per° C | |
| Initial pre-lubrication at assembly required | ||
