| Place of Origin: | China |
| Brand Name: | TOB POM Boundary Lubricating Bearings |
| Certification: | ISO 16949 |
| Minimum Order Quantity: | negotiated |
|---|---|
| Price: | negotiated |
| Packaging Details: | Cartons and Pallets |
| Delivery Time: | negotiated |
| Payment Terms: | T/T |
| Supply Ability: | negotiated |
| Material: | Low-Carbon Steel + Porous Bronze + Yellow POM | Types: | Wrapped Bushes, Thrust Washer |
|---|---|---|---|
| Application: | Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc. | Hardness: | >270 HB |
| Working Temperature: | -40~+120℃ | Max. PV Value: | Grease 2.8 N/mm²·m/s, Oil 50 N/mm²·m/s |
| High Light: | boundary lubrication bearing,pom bearing |
||
Product Category:SF-2 Boundary Lubricating Bearing
Name:SF-2 Boundary Lubricating Bearing
Model:
Detail:

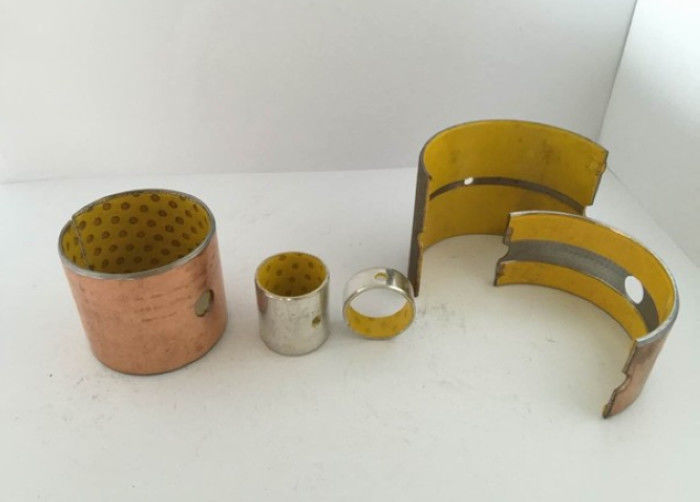

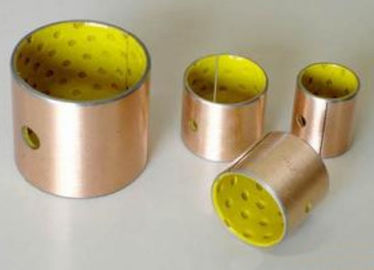

It is a rolling sliding bearing taking steel plate as matrix, sintered spherical bronze powder in the middle, and modified POM rolled and oil storage pits on the surface
Can be manufactured to customer’s requirements.
Application Features
1. Good bearing performance and wear resistance.
2. It is suitable for rotation, swaying in high load and low speed, and frequent stop-start motion as well.
3. It can work for long time in the condition of boundary lubrication; longer service life can be achieved under regular oiling maintenance.
4. It is machinable for the POM on the surface when the bearing is fixed, to achieve better matching accuracy.
5. It is mainly applied in automotive chassis, metallurgical, mining, water conservancy, and construction, and agricultural machinery, steel rolling equipment as well.
6. Transfer film formed on operation to protect the shaft from getting stuck.
7. Better lubricating effect for sufficient lubricants on oil storage pits for standard products.
8. It is lead-free to be widely applied in the situation lead free required
Technical Parameter
| Max Bearing capacity | 140N/mm2 |
| Temperature Range | -40oC~+130oC |
| Max Sliding Speed | 2.5m/s |
| Friction Coefficient | 0.05-0.25 |
| Max PV Value for dry friction | 2.8N/mm2m/s |
| Max PV Value for oil lubrication | 22N/mm2m/s |
