| Place of Origin: | China |
| Brand Name: | TOB POM Boundary Lubricating Bearings |
| Certification: | ISO 16949 |
| Minimum Order Quantity: | negotiated |
|---|---|
| Price: | negotiated |
| Packaging Details: | Cartons and Pallets |
| Delivery Time: | negotiated |
| Payment Terms: | T/T |
| Supply Ability: | negotiated |
| Material: | Low-Carbon Steel + Porous Bronze + Blue POM | Types: | Wrapped Bushes, Thrust Washer |
|---|---|---|---|
| Application: | Vehicle Chassis, Forming Machine Tools, Steel Metallurgical Machinery, Mineral Mountain Machinery, Hydraulic Industry And Rolling Steel Industry, Etc. | Heat-conducting Coefficient: | 52 W/(m*k) |
| Heat-expansion Coefficient (Axial): | 11*10^-6k | Working Temperature: | -40~+120℃ |
| High Light: | pom bearing,sleeve bearing bushing |
||

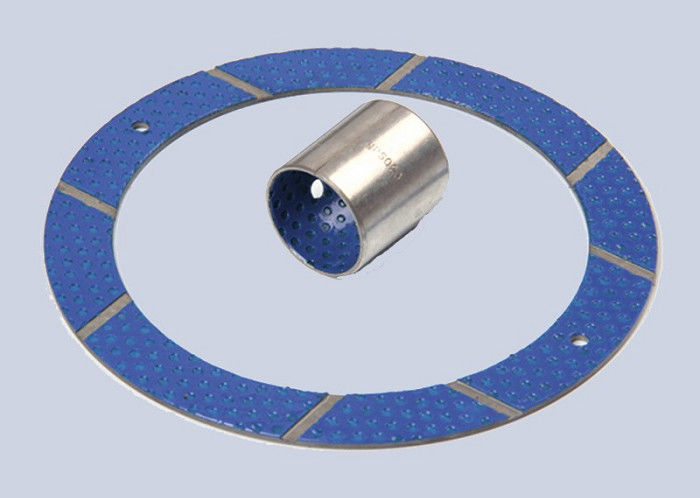

Lead - Free Boundary Self Lubricating DX Bushing , Blue POM Boundary Lubricating Bearings
Among those professional lead-free boundary self-lubricating dx bushing TOB-2y manufacturers in China, welcome to buy customized and low price lead-free dx bushing, boundary self-lubricating bushing, marginal lubrication bearings, marginal lubricated bushing or get its free sample from our factory.
Lead-free boundary self-lubricating DX bushing
STRUCTURE: Metal-Polymer Composite Bushing Material
COMPOSITION: Steel Back + Porous Bronze Sinter + POM with Lubrication Indents(without Pb)
MICROSECTION:
1. POM sliding layer with lubricant indents (without Lead)
2. Porous Bronze Sinter
3. Steel Backing
4. Tin/Copper coating
TECHNICAL DATA:
| Max.Load | Static | 140 N/mm2 |
| Dynamic | 70 N/mm2 | |
| Max line speed V(m/s) | Grease lubrication | 2.5 m/s |
| PV value limit (N/mm2.m/s) | 2.8 N/mm2.m/s | |
| Operating Temperature | -60°C~+120°C | |
| Friction Coeff. | 0.06~0.12 | |
| Hardness (HB) | > 270HB | |
| Roughness(Ra) | 0.4~1.25 | |
| Coeff. Of linear expansion | 11x10-6/K | |
CHARACTERISTICS:
1. Lead-free boundary self-lubricating DX bushing TOB-2Y for grease or oil lubricated applications.
2. Standard parts contain grease indents in the sliding layer, plain sliding layer available by request.
3. Optimum performance under relatively high loads and low speeds.
4. Suitable for linear, oscillating and rotating movements.
5. Wide range of parts available from stock.
TYPICAL APPLICATIONS: Lead-free boundary self-lubricating DX bushing TOB-2Y is widely used in Vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry etc.
