Home ProductsPOM Boundary Lubricating Bearings

General POM Boundary Lubricating Bearings , DX Sleeve Bearing Bushing

General POM Boundary Lubricating Bearings , DX Sleeve Bearing Bushing

  • General POM Boundary Lubricating Bearings , DX Sleeve Bearing Bushing
  • General POM Boundary Lubricating Bearings , DX Sleeve Bearing Bushing
General POM Boundary Lubricating Bearings , DX Sleeve Bearing Bushing
Product Details:
Place of Origin: China
Brand Name: TOB POM Boundary Lubricating Bearings
Certification: ISO 16949
Payment & Shipping Terms:
Minimum Order Quantity: negotiated
Price: negotiated
Packaging Details: Cartons and Pallets
Delivery Time: negotiated
Payment Terms: T/T
Supply Ability: negotiated
Contact Now
Detailed Product Description
Material: Low-Carbon Steel + Porous Bronze + Yellow POM Types: Wrapped Bushes, Thrust Washer
Application: Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc. Hardness: >270 HB
Working Temperature: -40~+120℃ Max. PV Value: Grease 2.8 N/mm²·m/s, Oil 50 N/mm²·m/s
High Light:

boundary lubrication bearing

,

sleeve bearing bushing



General Type Boundary Lubricating Bushing , Self-Lubricating Bearing , DX Bushing



1, Parameters:

1, Materials: Bronze(CuSn8Pb/ CuSn6.5Pb)/(CuZn31Si)

2, Pressure resistance strength: 470N/mm²

3, Elongation: 55%

4, Hardness: HB90 - 150
5, Temperature limit: -80 ~ 200oC
6, Load capacity: 75N/mm2
7, Speed limit: 5m/s

8, Linear expansion coefficient: 15.5*106/k

9. Application:

Wrapped bronze bearing is widely applied in hoisting machines and other construction machinery, automobiles, tractors, trucks, machine tools and some
mineral engines

10,certificates: ISO9001-2008



2,Products Description:

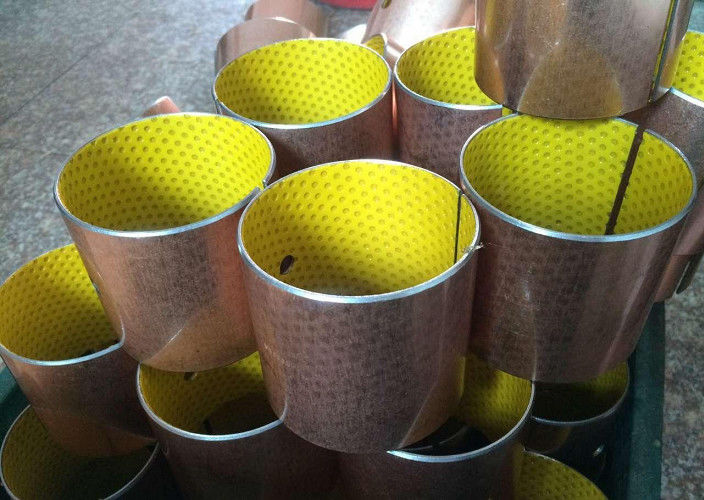

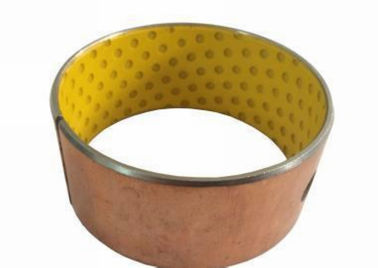

SF-2 pre-lubricating bushing, backed on mild steel sintered with bronze powder and coating with POM. The POM surface carries a pattern of regular indents for grease. The characteristics are: Suitable for rotary and oscillating movement, lower maintenance requirements, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good resistance to shock loads. Suggestion: add grease into the indents when assembling can make bushing maintenance free, add grease during working can increase bushing’s life time. Application: Automotive suspension joints, king pin assemblies and stub axles of tucks, automobile driving joint hinges, steering and other linkages, truck tail, tractor, harvest machine, and so on.



3,Our main products:

SF-1(du) oilless bearing bushing (PTFE Composite)
SF-2(dx) slide bearing bushing (POM Composite)
FB090(FB090G) bronze bushing
FB092 bronze bushing
JDB,JFB solid graphite lubricating bushing
JF bi-metal bushing
FU sintered bronze or iron bushing
FZ POM/Al/Cu ball cage retainer
FR metal mesh+PTFE Soft strips
JGB Graphite bearings



4,Our advantage:

  • Top quality and variety of bearings at preferential price
  • First-class and professional pre-sales and after- sales service.
  • 15 years’ experience in exporting bearings
  • We accept OEM, ODM, customization, customer’s logo
  • Certificate: SGS, ISO9001;GB/T 19001 - 2008
