Place of Origin: | MADE IN CHINA |
Brand Name: | TOB Brass Bronze Bearings |
Certification: | ISO 16949 |
Model Number: | C93200 SAE 660 Tin Bronze |
Minimum Order Quantity: | Standard Size Bushing No Minimum Order Quantity |
---|---|
Price: | negotiated |
Packaging Details: | Standard Export Cartons or Pallets |
Delivery Time: | negotiated |
Payment Terms: | T/T, Western Union |
Supply Ability: | negotiated |
Bronze Bearings Material: | SAE 660, SAE 660 Bronze, And SAE 660 Bearing Bronze | Application: | INDUSTRIAL: Thrust Washers, Pumps, Bushings, Machine Parts, |
---|---|---|---|
Name: | JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings | Types: | Cylinder Bearings, Thrust Washer, Slide Block, Etc. |

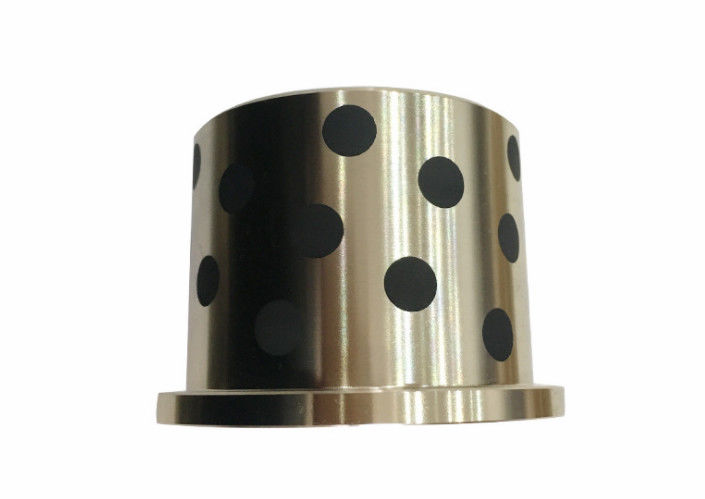

Highlight: | aluminum bronze bearings,flanged bronze bearings |
CDA Copper, Brass, and Bronze Alloys Bearing & Bushings. BRONZE BEARINGS COMPOSITION

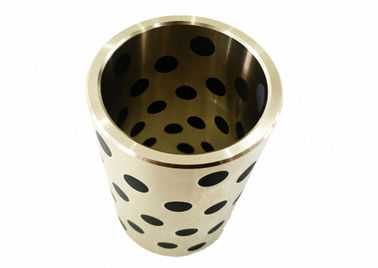

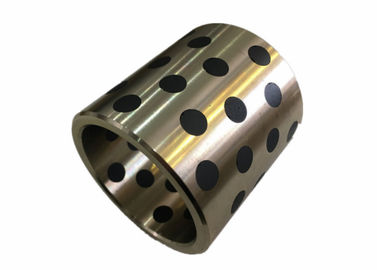

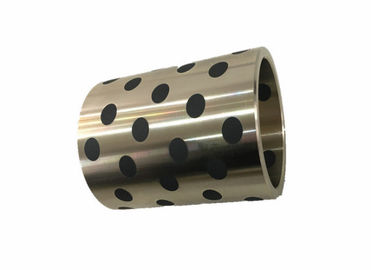

Bronze Bearing Wheel C93200 (SAE 660 RG7) Bronze Bushing & Spacer- Metal Graphite Bearing Plain Bearing Components PN RG7 DIN CuSn7Zn4Pb7
SAE 660 Bushing ISO CuSn7Pb7Zn4 CuSn7 DIN 1705 RG 7 Bronze Bearing Cast Bronze Sleeve Bushing
C93200 Leaded Tin bronzes C93200 (SAE 660 RG7) Leaded Tin Bronze is considered the "standard" bearing material for light duty. The alloy has excellent machining properties, good hardness, strength and wear resistance with excellent antifriction qualities.
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE SPECIFIED.INCH SIZE ALSO AVAILABLE.
2. REMOVE SHARP EDGES.
3. AVOID WELDING SPATTERS, REMOVE IF ANY
4.MACHINING TOLERANCE
Cu%1 |
Pb% |
Sn% |
Zn% |
Fe% |
P%2 |
Ni%3 |
Al% |
S% |
Sb% |
Si% |
|
---|---|---|---|---|---|---|---|---|---|---|---|
Chemical Composition according to ASTM B505/B505M-18 | |||||||||||
81.00- 85.00 |
6.00- 8.00 |
6.30- 7.50 |
1.00- 4.00 |
0.20 |
0.15 |
1.00 |
0.005 |
0.08 |
0.35 |
0.005 |
CDA |
ASTM |
Asarcon |
SAE |
AMS |
Federal |
Military |
Other |
---|---|---|---|---|---|---|---|
C93200 | B505 B505M B144-3B |
77 | 660 J461 J462 |
QQ-C-390, E7; QQ-B-1005, COMP 12 |
MIL-B-11553, COMP 12 | Bearing Bronze |
C93200 (SAE660) Bearing Bronze / C932 Bearing Bronze
Typical Uses
AUTOMOTIVE: automotive fittings
FASTENERS: washers
INDUSTRIAL: thrust washers, pumps, bushings, machine parts, sliding bearings, pump bushings, hydraulic bushes, insert bearings, bearings.
ZHEJIANG TOP BEARINGS CO., LIMITED one of the professional sae 660 bushing iso cusn7pb7zn4 cusn7 din 1705 rg 7 bronze bearing cast bronze sleeve bushing manufacturers, is also known as an excellent supplier in China. We now bring you the best quality sae 660 bushing iso cusn7pb7zn4 cusn7 din 1705 rg 7 bronze bearing cast bronze sleeve bushing with high precision and reliable performance. Should you are interested in it, please feel free to get in touch with our factory.
