Place of Origin: | MADE IN CHINA |
Brand Name: | TOB Brass Bronze Bearings |
Certification: | ISO 16949 |
Model Number: | DIN GB-CuSn5Zn5Pb5 |
Minimum Order Quantity: | Standard Size Bushing No Minimum Order Quantity |
---|---|
Price: | negotiated |
Packaging Details: | Standard Export Cartons or Pallets |
Delivery Time: | negotiated |
Payment Terms: | T/T, Western Union |
Supply Ability: | negotiated |
Bronze Bearings Material: | Phosphor Bronze Graphite Bushing | Application: | Rubber Machine, Light Industry And Machine Tools Industry Etc. |
---|---|---|---|
Standard Material: | DIN GB-CuSn5Zn5Pb5 | Additional Information: | #500-serie, BWG, BWG-F, COB-05, COB-050 T.o.m. -055, COB-056 T.o.m. -057, CSB 650-serie, JDB-serie |
Highlight: | aluminum bronze bearings,flanged bronze bearings |

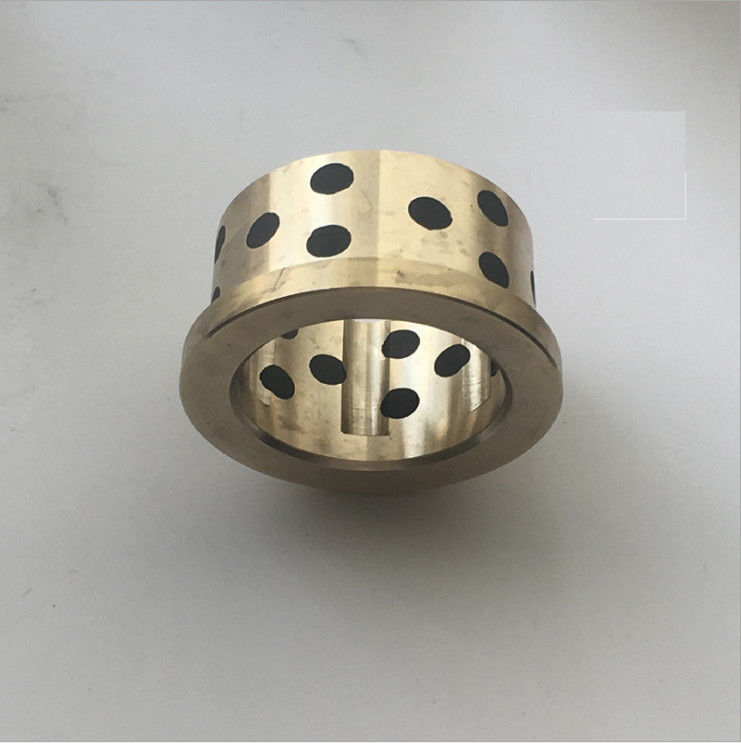

Graphite Bronze Bushing is made of bronze CuSn6Zn6Pb3 with graphite evenly embedded in it. It can work
under low load, high temperature and middle speed, e.g. in fireplace gate, convey way of the
Baking furnace, rubber machine, light industry and machine tools industry etc.
Base material:CuSn6Zn6Pb3
Dynanic load:60N/mm2
Base hardness:HB80~100
Friction Coef.:<0.15
Temp Max.:350℃
Speed limit:2m/s
TOP BEARINGS after initial assembly maintenance, professional self-lubricating bearing solutions, Get a free Quote Today!When the bearings are first used after assembly, they should be operated slowly under low load, which has the following advantages:
1) smooth the uneven surface of the shaft and bearing, and smooth the local convex surface supporting bearing load
2) correct the mounting error caused by bearing deformation, smooth concave and convex surface, and increase the contact area
Solid Self-Lubricating Inlaid Bearing
The so-called non-oil means less fuel without refueling, the goal of our research is to ensure that bearing this condition also showed a good performance and extend its life as much as possible. Self-lubricating bearings basic principle is that the solid lubricant in the initial operational phase of the bearing surface due to mutual friction asked to form ...
Oil-free bearings must be installed in a dry, clean environment.Before installation, the machining quality of the mating surface of the shaft and housing, the end face of the convex shoulder, the groove and the connecting surface shall be carefully checked.All mating surfaces must be carefully cleaned and burr removed. Unprocessed surfaces of castings must be cleaned of sand.
Oil-free bearings should be cleaned with gasoline or kerosene before installation, dry after use, and ensure good lubrication, oil-free bearings generally use grease lubrication, can also use oil lubrication.When using grease lubrication, the grease with excellent properties such as no impurities, oxidation resistance, rust resistance and extreme pressure should be selected.The filling amount of grease is 30%-60% of the volume of oil-free bearing and oil-free bearing box, so it should not be too much.Double-row tapered roller oil-free bearing with sealing structure and oil-free bearing with pump shaft have been filled with grease, which can be directly used by users and cannot be cleaned again.
Material:CuSn6Zn6Pb3
International grades gb1776-87
International ISO1338 GCuSn6Zn6Pb3
German DIN GB - CuSn5Zn5Pb5
Japan's JIS
BC6
The United States ASTM/UNS C83600
British standard (BS) LG2
APPLICATION
Widely used in the hydraulic and pneumatic industries, forging machine tool industry, plastic machinery industry, lifting handling machinery, port machinery, office machinery, textile machinery, food machinery, food machinery, chemical machinery, printing and packaging, paper machinery, Steam locomotive, shipbuilding industry, press industry, metallurgical machinery, engineering machinery and so on.
