Place of Origin: | China |
Brand Name: | TOB Taper Roller Bearings |
Certification: | ISO 16949 |
Minimum Order Quantity: | negotiated |
---|---|
Price: | negotiated |
Packaging Details: | Cartons or Pallets |
Delivery Time: | negotiated |
Payment Terms: | T/T |
Supply Ability: | negotiated |
Material: | Steel | Applications: | In Back-to-back Pairs So That Axial Forces Can Be Supported Equally In Either Direction. |
---|---|---|---|
Application Of Pairs Of Tapered Roller Bearings: | In Car And Vehicle Wheel Bearings | Common Real World Applications: | Reducers, Propeller Shaft, Railroad Axle-box, Differential, Wind Turbines, Etc. |
Application: | Commonly Used For Moderate Speed, Heavy Duty Applications Where Durability Is Required | Place Of Origin: | China |
High Light: | double row taper roller bearing,tapered roller bearings single row |

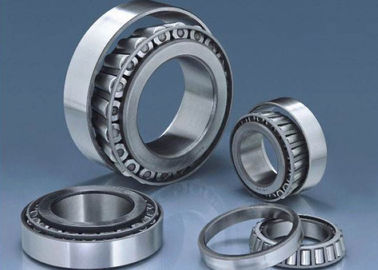

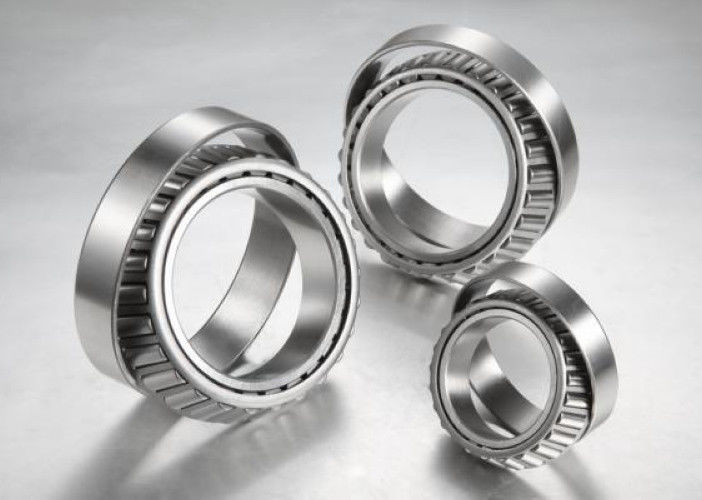

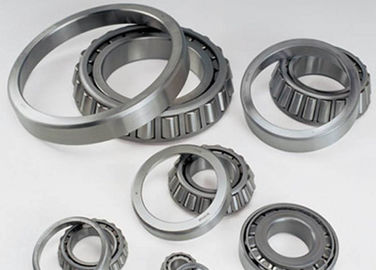

Taper Roller Bearings
Taper Roller Bearings are designed for use in a wide range of applications, including the automotive, tractor, and machine tool industries, and are available in both inch and metric dimensions. This is a separable type of bearing. The inner ring (cone), along with the cage and rollers, is one assembly unit; the outer ring (cup) is the other assembly unit. This feature allows the bearings to be fitted separately and adjusted so that the optimum clearance or preload for each application is achieved.
Due to the inclined position of the tapered rollers, the contact lines between the rollers and raceways intersect at a common point on the axis of the bearing. The contact surfaces of the raceways and tapered rollers are modified to limit edge stresses. As a result of this modification and the large number of rollers, this bearing has high load-carrying capacity and is designed to carry axial and radial loads simultaneously. Since a single bearing of this type can only carry axial loads in one direction, the bearings are usually mounted in pairs.
Taper Roller Bearings - Metric Series
|
Taper Roller Bearings - Inch Series
Part No. | BOUNDARY DIMENSIONS (in m.m.) | LOAD RATING | LIMITING SPEED (R.P.M.) | MASS (~ Kg.) |
||||||
d | D | B | C | T | STATIC (Co) KN | DYNAMIC (C) KN | Grease | Oil | ||
11590/11520 | 15.875 | 42.862 | 14.288 | 9.525 | 14.288 | 17.8 | 18.1 | 8700 | 12000 | 0.101 |
HM 81649 / HM 81610 | 15.987 | 46.975 | 21.000 | 16.000 | 21.000 | 36.6 | 35.0 | 8500 | 11000 | 0.190 |
LM 11949 / LM11910 | 19.050 | 45.237 | 16.637 | 12.065 | 15.494 | 28.6 | 28.0 | 8900 | 12000 | 0.132 |
09067/09195 | 19.050 | 49.225 | 19.050 | 14.288 | 18.034 | 40.0 | 39.1 | 8000 | 11000 | 0.180 |
21075/21212 | 19.050 | 53.975 | 21.839 | 15.875 | 22.225 | 41.0 | 41.7 | 8000 | 10000 | 0.246 |
M 12649 / M 12610 | 21.430 | 50.005 | 18.288 | 13.970 | 17.526 | 39.3 | 380 | 8000 | 11000 | 0.170 |
3659/3620 | 23.812 | 61.912 | 30.416 | 23.812 | 28.575 | 79.0 | 73.0 | 7000 | 9400 | 0.440 |
3659 CONE | 23.812 | - | 30.416 | - | 30.416 | 79.0 | 73.0 | 7000 | 9400 | 0.290 |
L44643/L44610 | 25.400 | 50.292 | 14.732 | 10.668 | 14.224 | 32.5 | 28.0 | 7500 | 1000 | 0.130 |
12435 | 25.987 | 59.800 | 17.500 | 13.500 | 17.750 | 44.1 | 40.9 | 6300 | 8500 | 0.235 |
L 44649/L 44610 | 26.988 | 50.292 | 14.732 | 10.688 | 14.224 | 32.5 | 28.0 | 7500 | 10000 | 0.110 |
15590/15520 | 28.575 | 57.150 | 17.462 | 13.495 | 17.62 | 45.5 | 39.6 | 6700 | 8900 | 0.192 |
1988/1922 | 28.575 | 57.150 | 19.355 | 15.875 | 19.845 | 55.1 | 47.5 | 6700 | 9000 | 0.220 |
02872/02820 | 28.575 | 73.025 | 22.225 | 17.462 | 22.225 | 69.4 | 57.3 | 5300 | 7000 | 0.480 |
14118/14283 | 30.000 | 72.085 | 19.202 | 18.415 | 22.385 | 58.3 | 48.3 | 5600 | 7500 | 0.437 |
LM 67048 / LM 67010 | 31.750 | 59.131 | 16.764 | 11.811 | 15.875 | 41.5 | 34.9 | 6300 | 8500 | 0.180 |
LM 67048 / LM67010BCE | 31.750 | 59.131 | 16.764 | 16.891 | 6.375 | 41.5 | 34.9 | 6300 | 8500 | 0.249 |
15123/15245 | 31.750 | 62.00 | 19.050 | 14.288 | 18.161 | 57.0 | 48.5 | 6000 | 8000 | 0.245 |
TT32001 (FERSA=F15110) | 32.000 | -- | 29.500 | -- | 29.500 | 108.4 | 92.9 | 5100 | 6800 | 0.411 |
LM 48548 / LM 48510 | 34.925 | 65.088 | 18.288 | 13.970 | 18.034 | 57.4 | 47.2 | 5700 | 7600 | 0.270 |
25877/25821 | 34.925 | 73.025 | 24.608 | 24.608 | 23.812 | 88.1 | 72.6 | 5300 | 7100 | 0.470 |
31593/31520 | 34.925 | 76.200 | 28.575 | 23.812 | 29.370 | 97.5 | 80.5 | 5000 | 6700 | 0.628 |
31594/31520 | 34.925 | 76.200 | 28.575 | 23.812 | 29.370 | 97.5 | 80.5 | 5000 | 6700 | 0.628 |
46143/46368 | 36.512 | 93.662 | 31.750 | 26.195 | 31.750 | 131.0 | 103.5 | 4100 | 5400 | 1.350 |
3490/3420 | 38.100 | 79.375 | 29.771 | 23.812 | 29.370 | 114.3 | 92.9 | 4900 | 6600 | 0.670 |
HM 801346 / HM 801310 | 38.100 | 82.550 | 28.575 | 23.020 | 29.370 | 115.5 | 88.5 | 4700 | 6200 | 0.755 |
25572/25520 | 38.100 | 82.931 | 25.400 | 19.050 | 23.813 | 98.2 | 76.5 | 4500 | 6000 | 0.640 |
418/414 | 38.100 | 88.500 | 29.083 | 22.225 | 26.988 | 116.0 | 101.0 | 4800 | 6300 | 0.835 |
2789/2729 | 39.688 | 76.200 | 25.654 | 19.050 | 23.775 | 91.2 | 73.2 | 5100 | 6800 | 0.470 |
344/332 | 40.000 | 80.000 | 22.403 | 17.826 | 21.000 | 75.1 | 68.3 | 4700 | 6300 | 0.470 |
LM 501349/LM 501310 | 41.275 | 73.431 | 19.812 | 14.732 | 19.558 | 55.5 | 69.5 | 5000 | 6600 | 0.340 |
24780/24720 | 41.275 | 76.200 | 23.020 | 17.462 | 22.225 | 86.9 | 68.4 | 4900 | 6500 | 0.430 |
3585/3525 | 41.275 | 87.312 | 30.866 | 23.812 | 30.162 | 117.1 | 94.0 | 4400 | 5900 | 0.780 |
4388/4335 | 41.275 | 90.488 | 40.386 | 33.338 | 39.688 | 174.9 | 136.1 | 4300 | 5800 | 1.265 |
HM 903245 / HM 903210 | 41.275 | 95.250 | 28.575 | 22.225 | 30.958 | 122.0 | 101.0 | 3600 | 4800 | 1.050 |
4395/4335 | 42.070 | 90.488 | 40.386 | 33.338 | 39.688 | 186.5 | 142.9 | 4300 | 5800 | 1.245 |
25577/25523 | 42.875 | 82.931 | 25.400 | 22.225 | 26.988 | 111.1 | 83.9 | 4500 | 6000 | 0.610 |
HM 803149 / HM 803110 | 44.450 | 88.900 | 29.370 | 23.020 | 30.162 | 125.0 | 93.50 | 4300 | 5800 | 0.840 |
355X/352 | 44.450 | 90.119 | 21.692 | 21.808 | 23.000 | 85.0 | 76.100 | 4400 | 5800 | 0.680 |
HM 803149/HM 803112 | 44.450 | 92.075 | 29.370 | 23.020 | 30.162 | 125.0 | 93.5 | 4300 | 5800 | 0.920 |
HM 903249 / HM 903210 | 44.450 | 95.250 | 28.575 | 22.225 | 30.958 | 122.0 | 101.0 | 3600 | 4800 | 1.012 |
527 / 522 | 44.450 | 101.600 | 36.068 | 26.988 | 34.925 | 169.0 | 137.3 | 3800 | 5000 | 1.350 |
535 532 A | 44.450 | 111.125 | 36.957 | 30.162 | 38.100 | 191.2 | 149.3 | 3600 | 4800 | 1.885 |
U 497 / U 460 L | 44.987 | 79.975 | 26.000 | 22.000 | 24.000 | 83.9 | 70.2 | 4500 | 600 | 0.475 |
HM905843/HM 905810 | 44.987 | 104.986 | 31.750 | 23.368 | 32.512 | 147.1 | 110.2 | 3200 | 4300 | 1.370 |
JF 4549 / JF 4510 (T 2ED 045) | 45.000 | 95.000 | 35.000 | 30.000 | 36.000 | 188.10 | 149.0 | 4000 | 3500 | 1.200 |
JW4549/JW4510 | 45.000 | 95.000 | 26.500 | 20.000 | 29.000 | 109.7 | 89.6 | 3600 | 4800 | 0.893 |
LM 102949 / LM 102910 | 45.242 | 73.431 | 19.812 | 15.748 | 19.558 | 76.0 | 54.0 | 4800 | 6400 | 0.307 |
LM 603049 / LM 2603011 | 45.242 | 77.788 | 19.842 | 15.080 | 19.842 | 70.3 | 55.3 | 5850 | 7500 | 0.370 |
HM 204049 / HM 204010 | 45.987 | 90.975 | 32.000 | 26.500 | 32.000 | 150.5 | 119.1 | 4300 | 5600 | 0.940 |
359-S/354X | 46.038 | 85.000 | 21.692 | 17.462 | 20.635 | 89.5 | 76.1 | 4400 | 5800 | 0.490 |
369 - S / 362 A | 47.625 | 88.900 | 22.225 | 16.153 | 20.638 | 91.0 | 76.5 | 4300 | 5600 | 0.550 |
HM 804846 / HM 804810 | 47.625 | 95.250 | 29.370 | 23.020 | 30.162 | 140.0 | 104.3 | 4000 | 5300 | 0.980 |
528/522 | 47.625 | 101.600 | 36.068 | 26.988 | 34.925 | 169.0 | 137.3 | 3800 | 5000 | 1.290 |
CK 50 K / 3720 | 50.000 | 93.264 | 30.302 | 23.812 | 30.162 | 148.9 | 110.9 | 4000 | 5300 | 0.870 |
JW 5049 / JW 5010 | 50.000 | 105.000 | 29.000 | 22.000 | 32.000 | 145.5 | 114.3 | 3400 | 4500 | 1.230 |
370A / 362A | 50.800 | 88.900 | 22.225 | 16.513 | 20.638 | 91.0 | 76.5 | 4300 | 5600 | 0.510 |
28580 / 25821 | 50.800 | 92.075 | 25.400 | 19.845 | 24.607 | 116.1 | 84.2 | 4000 | 5300 | 0.700 |
455/452 | 50.800 | 107.950 | 29.317 | 27.000 | 32.557 | 148.0 | 115.0 | 3500 | 4700 | 1.340 |
3780 / 3720 | 50.800 | 93.264 | 30.302 | 23.812 | 30.162 | 148.9 | 110.9 | 4000 | 5300 | 0.840 |
33889 / 33822 | 50.800 | 95.250 | 28.575 | 22.225 | 27.783 | 140.0 | 107.3 | 3900 | 5200 | 0.880 |
45284 / 45220 | 50.800 | 104.775 | 30.958 | 23.812 | 30.162 | 169.7 | 130.3 | 3500 | 4700 | 1.190 |
45285 A / 45221 | 50.800 | 104.775 | 30.958 | 23.812 | 30.162 | 169.7 | 130.3 | 3500 | 4700 | 1.210 |
HM 807010 | 50.800 | 104.775 | 36.512 | 28.575 | 36.512 | 189.6 | 139.0 | 3600 | 4600 | 1.445 |
72200C / 72487 | 50.800 | 123.825 | 32.791 | 25.400 | 36.512 | 190.1 | 155.8 | 2900 | 3900 | 2.142 |
539 / 532 X | 53.975 | 107.950 | 36.957 | 28.575 | 36.512 | 191.2 | 149.3 | 3600 | 4800 | 1.500 |
539 / 532 A | 53.975 | 111.125 | 36.957 | 30.162 | 38.100 | 191.2 | 149.3 | 3600 | 4800 | 1.700 |
72212 / 72487 | 53.975 | 123.825 | 32.791 | 25.400 | 36.512 | 165.0 | 145.0 | 2850 | 4000 | 2.030 |
JW 5549/JW5510 | 55.000 | 115.000 | 31.000 | 23.500 | 34.000 | 161.9 | 126.0 | 3000 | 4000 | 1.558 |
387 / 382 | 57.150 | 98.425 | 21.945 | 17.825 | 21.000 | 102.0 | 80.9 | 3800 | 5000 | 0.630 |
462 A / 453 X | 57.150 | 104.775 | 29.317 | 24.605 | 30.162 | 148.0 | 115.0 | 3500 | 4700 | 1.050 |
39580 / 39520 | 57.150 | 112.712 | 30.162 | 23.812 | 30.162 | 204.2 | 144.0 | 3200 | 4300 | 1.440 |
39581/39520 | 57.150 | 112.712 | 30.162 | 23.812 | 30.162 | 204.2 | 144.0 | 3200 | 4300 | 1.400 |
78225C / 78551 | 57.150 | 140.030 | 33.236 | 23.520 | 36.513 | 211.7 | 170.9 | 2600 | 3400 | 2.690 |
JF 6049 / JF6010 (T 2EE 060) | 60.000 | 115.000 | 39.000 | 33.000 | 40.000 | 260.3 | 194.1 | 3200 | 4300 | 1.850 |
392/394A | 61.913 | 111.000 | 21.996 | 18.824 | 22.000 | 113.7 | 85.3 | 3200 | 4300 | 0.870 |
L 910349 / L 910310 | 63.485 | 94.975 | 15.500 | 12.000 | 17.000 | 56.6 | 38.4 | 3600 | 4800 | 0.375 |
395/394A | 63.500 | 110.000 | 21.996 | 18.824 | 22.000 | 113.7 | 85.3 | 3200 | 4300 | 0.810 |
3982X 3927 XSXI | 63.500 | 110.000 | 30.048 | 23.020 | 29.370 | 174.7 | 118.9 | 4000 | 5300 | 1.100 |
3982 / 3927 X | 63.500 | 110.000 | 30.048 | 23.812 | 30.162 | 1830 | 123.0 | 3200 | 4300 | 1.131 |
3982 / 3920 | 63.500 | 112.712 | 30.048 | 23.812 | 30.162 | 183.0 | 123.0 | 3200 | 4300 | 1.225 |
HM 212047 / 212010 | 63.500 | 122.238 | 38.354 | 29.718 | 38.100 | 244.0 | 187.0 | 3100 | 4100 | 1.936 |
565 / 562 | 63.500 | 129.985 | 34.000 | 28.000 | 37.000 | 206.1 | 177.2 | 2900 | 3800 | 2.060 |
JLM 710949C/JLM 710910 | 65.000 | 105.000 | 23.000 | 18.500 | 24.000 | 126.4 | 93.7 | 3300 | 4500 | 0.736 |
JD 6549 / JD 6510 | 65.000 | 110.000 | 31.000 | 25.000 | 31.000 | 141.1 | 197.5 | 3300 | 4300 | 1.250 |
6379 / 6320 | 65.088 | 135.755 | 56.007 | 44.450 | 53.975 | 356.5 | 265.2 | 2900 | 3800 | 3.662 |
H 212749 /212710 | 65.987 | 123.975 | 41.500 | 34.000 | 41.500 | 279.2 | 205.9 | 3000 | 4000 | 2.200 |
395 A / 394 A | 66.675 | 110.000 | 21.996 | 18.824 | 22.000 | 113.7 | 85.3 | 3200 | 4300 | 0.790 |
395-S/394A | 66.675 | 110.000 | 21.996 | 18.824 | 22.000 | 113.7 | 85.3 | 3200 | 4300 | 0.780 |
3984 / 3920 | 66.675 | 112.712 | 30.048 | 23.812 | 30.162 | 183.0 | 123.0 | 3200 | 4300 | 1.187 |
641 / 632 | 66.675 | 136.525 | 41.275 | 31.750 | 41.275 | 261.2 | 194.4 | 2800 | 3800 | 2.730 |
L713049/L713010 | 69.850 | 101.600 | 19.050 | 15.083 | 19.050 | 102.5 | 59.1 | 3200 | 4300 | 0.500 |
482 / 472 | 69.850 | 120.000 | 29.007 | 24.237 | 29.795 | 188.6 | 131.2 | 3000 | 4000 | 1.330 |
47487 / 47420 X | 69.850 | 120.000 | 32.545 | 26.195 | 32.545 | 26.195 | 32.545 | 3000 | 4000 | 1.500 |
566 / 563 | 69.850 | 127.000 | 36.170 | 28.575 | 36.512 | 254.7 | 176.6 | 2800 | 3800 | 1.945 |
JW 7049 / JW 7010 | 70.000 | 140.000 | 35.500 | 27.000 | 39.000 | 244.0 | 180.3 | 2400 | 3200 | 2.650 |
47490/47420 | 71.438 | 120.000 | 32.545 | 26.195 | 32.545 | 218.1 | 149.1 | 3000 | 4000 | 1.420 |
HM 215249/HM 215210 | 75.987 | 131.975 | 39.000 | 32.000 | 39.000 | 280.8 | 196.9 | 2600 | 3500 | 2.110 |
34300 / 34478 | 76.200 | 121.442 | 23.012 | 17.463 | 24.608 | 127.6 | 90.8 | 2900 | 3800 | 0.954 |
6461/6420 | 149.225 | 54.229 | 44.450 | 53.975 | 410.6 | 287.9 | 2400 | 2400 | 3200 | 4.185 |
Taper Roller Bearings - Double Row
Bearing No. | BOUNDARY DIMENSIONS (in m. m.) | LOAD RATING | LIMITING SPEED (R.P.M.) | MASS (~ Kg.) |
||||||
d | D | B | C | T | STATIC (Co) KN | DYNAMIC (C) KN | Grease | Oil | ||
46T101107RC3 | 49.987 | 114.981 | 28.486 | 44.450 | 68.260 | 260.2 | 194.5 | 2600 | 3500 | 3.100 |
TT681271 (SKF=BTIB0018A, FERSA=F15097) | 68.000 | 127.000 | 57.500 | 115.000 | 115.000 | 532.6 | 295.7 | 2200 | 2900 | 6.150 |
TT821401 (SKF=BTIH0055, VKBA5412, FERSA=F15100) | 82.000 | 140.000 | 57.500 | 115.000 | 115.000 | 605.0 | 435.0 | 2000 | 2700 | 7.710 |
