Product Details:
Place of Origin: China
Brand Name: TOB Casting Bronze Bearings
Certification: ISO 16949
Payment & Shipping Terms:
Minimum Order Quantity: negotiated
Price: negotiated
Packaging Details: Cartons or Pallets
Delivery Time: negotiated
Payment Terms: T/T
Supply Ability: negotiated
Contact Now
Detailed Product Description
Material: High Strength Copper With Solid Lubricant Application: Consecutive Casting And Rolling Machines, Mine-exploiting Equipment, Ships, Steam Engine, Injection Molders And Auto Molds, Etc.

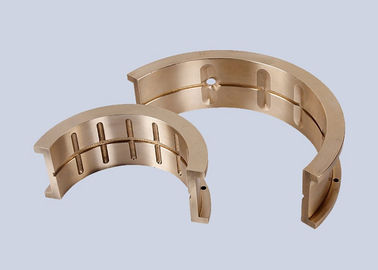

Types: Cylinder Bearings, Thrust Washer, Slide Block, Etc. Name: JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings
Hardness: ≥260 HB Working Temperature Limits: -40~+300℃
High Light:

solid lubricant bearings

,

aluminum bronze bearings



High Strength Bronze Alloy With Solid Lubricant Casting Bronze Bearings

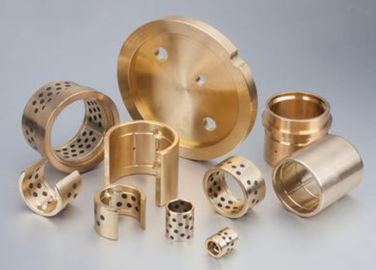

High Strength Bronze Alloy With Solid Lubricant Casting Bronze Bearings is backed with high strength copper alloy. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. High Strength Bronze Alloy With Solid Lubricant Casting Bronze Bearings is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, injection molders and auto molds, etc.

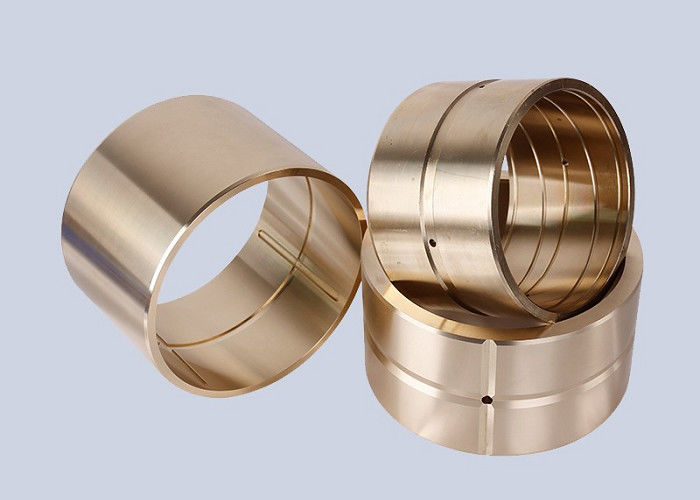

Bronze based and processed by turning technics. There can be made oil grooves on the inner surface and outside surface to reach a better lubricating effect. By made mid-sized holes in order and then insert the solid lubricant into the holes in the bronze bushing to apply the bushings under oil-free conditions.



Chemical Compositions

Product NO. Chemical Compositions
TOB 051 Cu Zn Al Fe Mn Si Ni Sn Pb
60~65 22~28 5.0~8.0 2.0~4.0 2.5~5.0 <0.1 <0.5 <0.2 <0.2





















Physical and Mechanical Performance

Performance Index Data Performance Index Data
Density g/cm³ 8.2 Hardness HB ≥260
Linear Expansion Coefficient 10^-5/℃ 1.6-2.0 Flexibility Coefficient KN/mm² 80-120
Heat-conducting Coefficient W/(m·k) 38-55 Tensility % ≥2
Tensile Strength N/mm² ≥850 Friction Oil Lubrication μ 0.03
Anti-compact Tenacity ≥KJ/m^3 300-400 Dry Friction 0.16



Application Condition Limits

Lubrication Conditions Non- Lubrication Periodical Lubrication Consecutive Lubrication
Working Temperature Limits -40~+300 -40~+150 -40~+150
Max. Load pressure N/mm² 130 130 130
Max. Linear Velocity m/s 0.30 0.80 1.25
Max. PV Value N/mm²·m/s 1.65 3.25 3.25
