Solid Lubricant Casting Aluminum Bronze Bearings Bushings ISO 16949

Product Details:

Place of Origin:	China
Brand Name:	TOB Casting Bronze Bearings
Certification:	ISO 16949

Payment & Shipping Terms:

Minimum Order Quantity:	negotiated
Price:	negotiated
Packaging Details:	Cartons or Pallets
Delivery Time:	negotiated
Payment Terms:	T/T
Supply Ability:	negotiated

Contact Now

Detailed Product Description

Material:	Aluminum-Bronze With Solid Lubricant	Application:	Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.
Types:	Cylinder Bearings, Thrust Washer, Slide Block, Etc.	Name:	JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings
Hardness:	≥160 HB	Working Temperature Limits:	-250~+400℃
High Light:	solid lubricant bearings , aluminum bronze bearings

Aluminum-Bronze With Solid Lubricant Casting Bronze Bearings

Aluminum-Bronze With Solid Lubricant Casting Bronze Bearings is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion.

The surface of Aluminum-Bronze With Solid Lubricant Casting Bronze Bearings is regularly and finely machined with sockets in which particular solid lubricant is filled.

Aluminum-Bronze With Solid Lubricant Casting Bronze Bearings is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.

Chemical Compositions

Product NO.	Chemical Compositions
TOB 052	Cu	Al	Fe	Mn	Zn	Si	Sn	Pb
TOB 052	>83	8~11	2~4	<0.1	<0.5	<0.2	<0.3	<0.2

Physical and Mechanical Performance

Performance Index		Data	Performance Index			Data
Density	g/cm³	8.5	Hardness		HB	≥160
Linear Expansion Coefficient	10^-5/℃	1.7-1.9	Flexibility Coefficient		KN/mm²	90-110
Heat-conducting Coefficient	W/(m·k)	38-55	Tensility		%	≥15
Tensile Strength	N/mm²	≥590	Friction	Oil Lubrication	μ	0.03
Anti-compact Tenacity	≥KJ/m^3	150-250	Friction	Dry Friction	μ	0.16

Application Condition Limits

Lubrication Conditions		Non- Lubrication	Periodical Lubrication	Consecutive Lubrication
Working Temperature Limits	℃	-250~+400	-40~+150	-40~+150
Max. Load pressure	N/mm²	50	50	50
Max. Linear Velocity	m/s	0.25	0.50	1.00
Max. PV Value	N/mm²·m/s	1.25	2.45	2.45

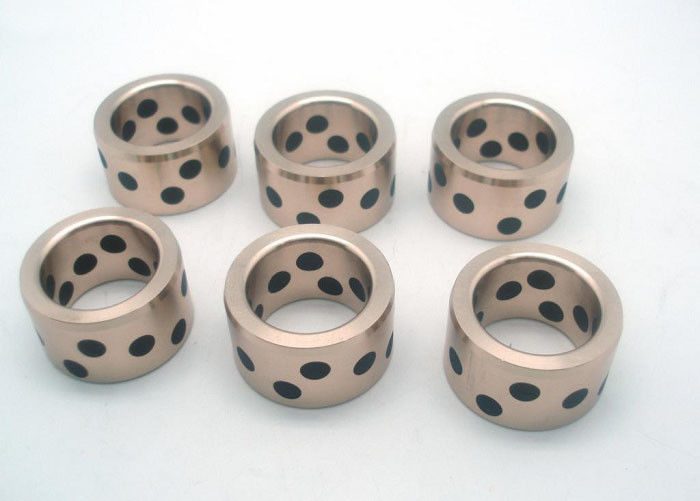

Solid Lubricant Casting Aluminum Bronze Bearings Bushings ISO 16949 0

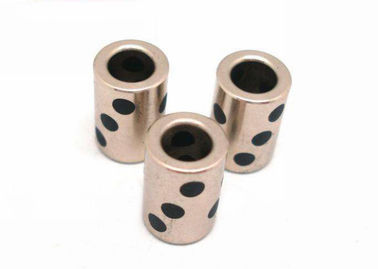

Solid Lubricant Casting Aluminum Bronze Bearings Bushings ISO 16949 1

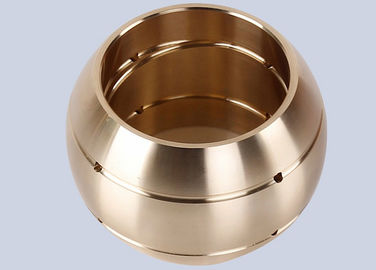

Solid Lubricant Casting Aluminum Bronze Bearings Bushings ISO 16949 2

Solid Lubricant Casting Aluminum Bronze Bearings Bushings ISO 16949 3

Solid Lubricant Casting Aluminum Bronze Bearings Bushings ISO 16949 8
