Cylinder Flanged Cast Bronze Bearings With Solid Lubricant Plugs

Product Details:

Place of Origin:	China
Brand Name:	TOB Casting Bronze Bearings
Certification:	ISO 16949

Payment & Shipping Terms:

Minimum Order Quantity:	negotiated
Price:	negotiated
Packaging Details:	Cartons or Pallets
Delivery Time:	negotiated
Payment Terms:	T/T
Supply Ability:	negotiated

Contact Now

Detailed Product Description

Material:	High Strength Copper Alloy With Solid Lubricant Plugs	Application:	Consecutive Casting And Rolling Machines, Mine-exploiting Equipment, Ships, Steam Engine, Injection Molders And Auto Molds, Etc.
Types:	Cylinder Bearings With Flange	Name:	JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings
Hardness:	≥260 HB	Working Temperature Limits:	-40~+300℃
High Light:	solid lubricant bearings , aluminum bronze bearings

High Strength Copper Alloy With Solid Lubricant Casting Plugs Bronze Flanged Bearings

JDB Bearing is backed with high strength Copper alloy. The surface is regularly and finely machined with sockets in which particular solid lubricant Plugs is filled.

Avoid use in seawater.

JDB Bearing Copper based and processed by turning technics. JDB Bearing can be made oil grooves on the inner surface and outside surface to reach a better lubricating effect. By made mid-sized holes in order and then insert the solid lubricant into the holes in the Copper bushing to apply the bushings under oil-free conditions.

JDB Copper Bearings is a special formulation of high strength copper-based body surface at a certain angle and density of embedded solid lubricant specially formulated by precision machining.

JDB Bearing can be used with rotary, reciprocating shaking motion and movement.

Diamater 31.5mm-63mm hydraulic cylinder is put on the intermediate shaft using fresh products.

JDB Bearing is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, injection molders and auto molds, etc.

Chemical Compositions

Product NO.	Chemical Compositions
TOB 051	Cu	Zn	Al	Fe	Mn	Si	Ni	Sn	Pb
TOB 051	60~65	22~28	5.0~8.0	2.0~4.0	2.5~5.0	<0.1	<0.5	<0.2	<0.2

Physical and Mechanical Performance

Performance Index		Data	Performance Index			Data
Density	g/cm³	8.2	Hardness		HB	≥260
Linear Expansion Coefficient	10^-5/℃	1.6-2.0	Flexibility Coefficient		KN/mm²	80-120
Heat-conducting Coefficient	W/(m·k)	38-55	Tensility		%	≥2
Tensile Strength	N/mm²	≥850	Friction	Oil Lubrication	μ	0.03
Anti-compact Tenacity	≥KJ/m^3	300-400	Friction	Dry Friction	μ	0.16

Application Condition Limits

Lubrication Conditions		Non- Lubrication	Periodical Lubrication	Consecutive Lubrication
Working Temperature Limits	℃	-40~+300	-40~+150	-40~+150
Max. Load pressure	N/mm²	130	130	130
Max. Linear Velocity	m/s	0.30	0.80	1.25
Max. PV Value	N/mm²·m/s	1.65	3.25	3.25

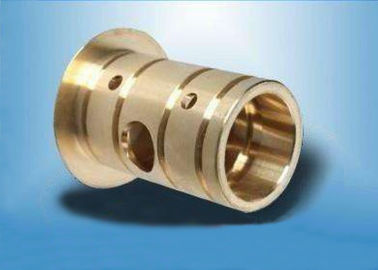

Cylinder Flanged Cast Bronze Bearings With Solid Lubricant Plugs 0

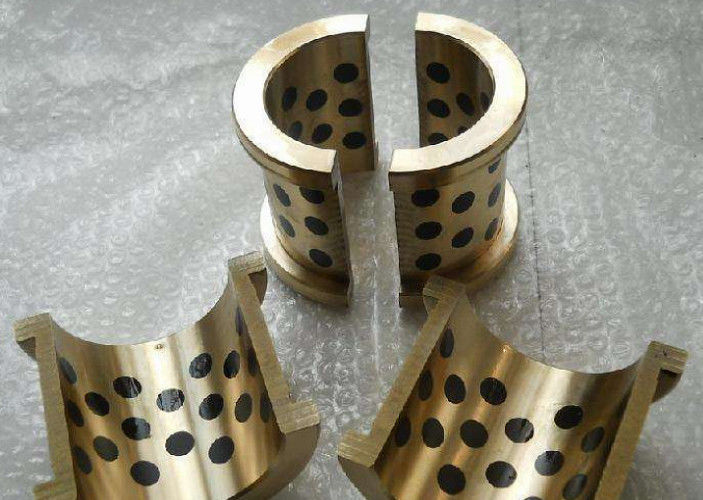

Cylinder Flanged Cast Bronze Bearings With Solid Lubricant Plugs 1
