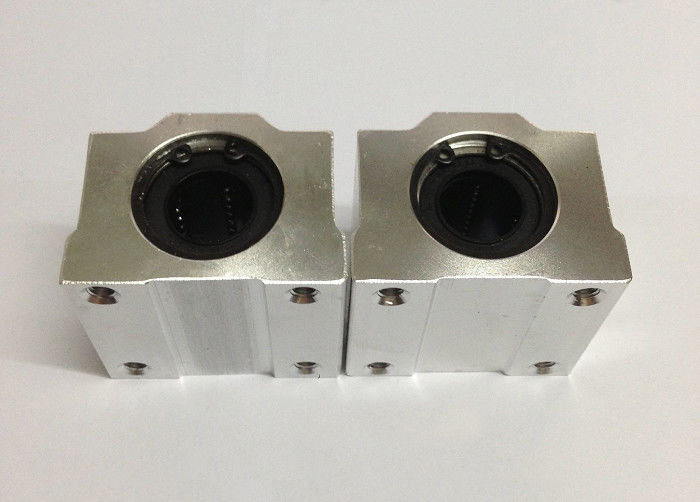

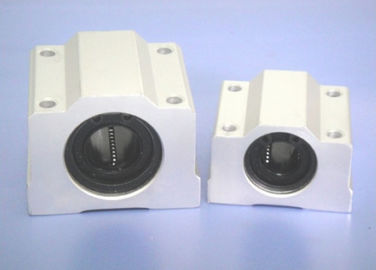

SCS16UU SC16UU SC16VUU Linear Motion Bearings Shaft Diameter 16mm For Industrial Linear Actuator

SCS16UU SC16UU SC16VUU Linear Motion Bearings Shaft Diameter 16mm For Industrial Linear Actuator

    • SCS16UU SC16UU SC16VUU Linear Motion Bearings Shaft Diameter 16mm For Industrial Linear Actuator
    • SCS16UU SC16UU SC16VUU Linear Motion Bearings Shaft Diameter 16mm For Industrial Linear Actuator
  • SCS16UU SC16UU SC16VUU Linear Motion Bearings Shaft Diameter 16mm For Industrial Linear Actuator

    Product Details:

    Place of Origin: China
    Brand Name: TOB Linear Motion Bearings
    Certification: ISO 16949

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiated
    Price: negotiated
    Packaging Details: Cartons or Pallets
    Delivery Time: negotiated
    Payment Terms: T/T
    Supply Ability: negotiated
    Contact Now
    Detailed Product Description
    Material: GCr15 GCr15SiMn Ring Material: Chrome Steel ,Carbon Steel, Stainless Steel
    Precision: P0,P6,P5,P4, P2 Clearance: C2 ,C3, C4
    Application: Industrial Segments Pumps Fans Compressors Turbines Gearboxes Windmills Service: OEM Service, Customer Design Service, Buyer Label Service
    High Light:

    linear motion ball bearing

    ,

    flange linear bearing



    SCS16UU SC16UU SC16VUU Linear Motion Bearings Shaft Diameter 16mm For Industrial Linear Actuator



    Products name linear bearing
    Ring material Chrome Steel ,Carbon steel, Stainless steel
    Material: GCr15 GCr15SiMn
    Precision P0,P6,P5,P4, P2
    Clearance: C2 ,C3, C4
    Quality standard ISO9001:2008 standard
    Service OEM service, Customer design service, buyer label service
    Payment terms

    A:100% T/T in advance

    B: 30% T/T in advance .70% against copy of B/L

    Application Industrial Segments Pumps Fans Compressors Turbines Gearboxes
    Windmills
    Details



    Mine machine, port hoisting machine, port transfer equipment, crane;
    excavator, concrete machine, paper machine, weave machine, steel
    and electronic plants etc. machines and equipment.

      We have complete process for the production and quality assurance to make sure our products can meet your requirement. We are committed to be responsible for each set of bearings and industrial products sold to our clients. Relying on strong resource network, we can supply any bearing that you need. Meeting each customer' satisfaction is our pursuit!

    1. We can change the rubber seal color according to your actual requirements.
    2. Customized the marks based on your requirements.
    3. Choose the different package to your needs.



    Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Since carrying the ball point contact with the shaft, so the use of small loads. With minimal friction ball rotation, which can obtain high-precision smooth movement.Low noise, low friction, high precision, high life. Because of point contact between ball and straight axis, friction small, motion precision is high.



    Linear bearings are used in conjunction with hardened linear shaft. For an infinite linear motion systems. Ball and hardened shaft because it is the point of contact, allowing the load is small, but the linear motion of the minimum friction, high precision, fast movement. Mainly used for linear motion passed.



    Application

    Linear motion guide rail and block TBR/SBR Series with smooth serface, little friction,low noise,they are widely used in linear motion system.For example, punch, tool grinding machine,automatic cutting machine, printer, card sorting machine, Food Packing Machine, other sliding parts on industrial machinery.





    Standard Basic load rating Weight (gf) Dimensions mm)
    Designation Liner Bearing Dynamic C N Static Co N Shaft Diameter Nominal Dimensions(mm) SC...UU
    h D W H G A J E S1×I S2 K L
    SC8UU LM8UU 260 400 56 Φ8 11 17 34 22 18 6 24 5 M4×8 Φ3.4 18 30
    SC10UU LM10UU 370 540 90 Φ10 13 20 40 26 21 8 28 6 M5×12 Φ4.3 21 35
    SC12UU LM12UU 410 590 112 Φ12 15 21 42 28 24 8 30.5 5.75 M5×12 Φ4.3 26 36
    SC13UU LM13UU 500 770 123 Φ13 15 22 44 30 24.5 8 33 5.5 M5×12 Φ4.3 26 39
    SC16UU LM16UU 770 1170 189 Φ16 19 25 50 38.5 32.5 9 36 7 M5×12 Φ4.3 34 44
    SC20UU LM20UU 860 1370 237 Φ20 21 27 54 41 35 11 40 7 M6×12 Φ5.2 40 50
    SC25UU LM25UU 980 1560 555 Φ25 26 38 76 51.5 42 12 54 11 M8×18 Φ7 50 67
    SC30UU LM30UU 1560 2740 685 Φ30 30 39 78 59.5 49 15 58 10 M8×18 Φ7 58 72
    SC35UU LM35UU 1600 3130 1100 Φ35 34 45 90 68 54 18 70 10 M8×18 Φ7 60 80
    SC40UU LM40UU 2150 4010 1600 Φ40 40 51 102 78 62 20 80 11 M10×25 Φ8.7 60 90
    SC50UU LM50UU 3820 7930 3350 Φ50 52 61 122 102 80 25 100 11 M10×25 Φ8.7 80 110



    Related Products series:

    LM linear bearing:

    LM3UU,LM4UU,LM5UU,LM6UU,LM8UU,LM8S,LM10UU,LM12UU,LM13UU,LM16UU,

    LM20UU,LM25UU,LM30UU,LM35UU,LM40UU,LM50UU,LM60UU, LM80UU,LM100UU

    LME linear bearing:

    LME3UU,LME4UU,LME5UU,LME6UU,LME8UU,LME8S,LME10UU,LME12UU,LME13UU, LME16UU, LME20UU,LME25UU,LME30UU,LME35UU,LME40UU,LME50UU,LME60UU, LME80UU,LME100UU

    LMB linear bearing: LMB4UU,LMB6UU,LMB8UU,LMB10UU,LMB12UU,LMB16UU,LMB24UU,LMB32UU

    LM Open Series linear bearing: LM10OPUU,LM12OPUU,LM13OPUU,LM16OPUU,LM20OPUU,LM25OPUU, LM3OOPU,LM35OPUU,LM40OPUU,LM50OPUU,LM60OPUU,LM80OPUU,LM100OPUU

    KH type linear bearing: KH0622PP,KH0824PP,KH1026PP,KH1228PP,KH1630PP,KH2030PP,

    KH2540PP,KH3050PP,KH4060PP,KH5070PP

    Stell Cage Linear Bearing:

    LM8GA,LM10GA,LM12GA,LM16GA,LM20GA,

    LM25GA,LM30GA,LM35GA,LM40GA,LM50GA,LM60GA

    SDM series Steel cage linear bearing(As same as Ease SDM series):SDM16,SDM20,SDM25,SDM30,SDM35,SDM40,SDM50,SDM60,SDM80,SDM100,SDM120, SDM150

    Flange Type Linear Bearing:

    LMF6UU,LMF8UU,LMF10UU,LMF12UU,LMF13UU,LMF16UU,LMF20UU,LMF25UU,LMF30UU,

    LMF35UU,LMF40UU,LMF50UU,LMF60UU,LMF80UU,LMF100UU

    LMK6UU,LMK8UU,LMK10UU,LMK12UU,LMK13UU,LMK16UU,LMK20UU,LMK25UU,LMK30UU,

    LMK35UU,LMK40UU,LMK50UU,LMK60UU,LMK80UU,LMK100UU

    LMT6UU,LMT8UU,LMT10UU,LMT12UU,LMT13UU,LMT16UU,LMT20UU,LMT25UU,LMT30UU.

    Linear Slide Unit:

    1. Close Type:SC8UU,SC10UU,SC12UU,SC13UU,SC16UU,SC20UU,SC25UU,SC30UU,SC35UU,SC40UU, SC50UU,SC60UU (normal type)

    SC8WUU,SC10WUU,SC12WUU,SC13WUU,SC16WUU,SC20WUU,SC252UU,SC30WUU,SC35WUU, SC40WUU,SC50WUU (long type) SC8VUU,SC10VUU,SC12VUU,SC13VUU,SC16VUU,SC20VUU,SC25VUU,SC30VUU,SC35VUU, SC40VUU,SC50VUU(Short type)

    2. Open Type: SBR10UU,SBR12UU,SBR13UU,SBR16UU,SBR20UU,SBR25UU,SBR30UU,SBR35UU, SBR40UU,SBR50UU(Normal type) SBR10LUU,SBR1
