Round Flange Linear Motion Bearings With Linear Shaft LMF20UU IKO 20 × 32 × 42mm

Product Details:

Place of Origin:	China
Brand Name:	TOB Linear Motion Bearings
Certification:	ISO 16949

Payment & Shipping Terms:

Minimum Order Quantity:	negotiated
Price:	negotiated
Packaging Details:	Cartons or Pallets
Delivery Time:	negotiated
Payment Terms:	T/T
Supply Ability:	negotiated

Contact Now

Detailed Product Description

Material:	Gcr15 Chrome Steel	Precision Rating:	ABEC-1 To ABEC-9
Vibration And Noise:	Z0V0 / Z1V1 / Z2V2 / Z3V3	Dimensions(mm)(dDb):	20 × 32 × 42mm
Number Of Row:	Five Row	Weight / Mass ( KG ):	0.18KG
High Light:	precision linear bearings , flange linear bearing

Round Flange LMF20UU IKO Linear Motion Bearings 20 × 32 × 42mm

About Linear Motion Bearings

Linear bearings LMF20UU:

Linear is always together with linear shaft.
Two types of Linear bearings: with flange and without flange.

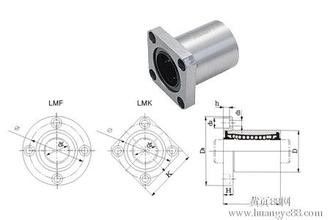

There are three types with flange:
LMF: with round flange

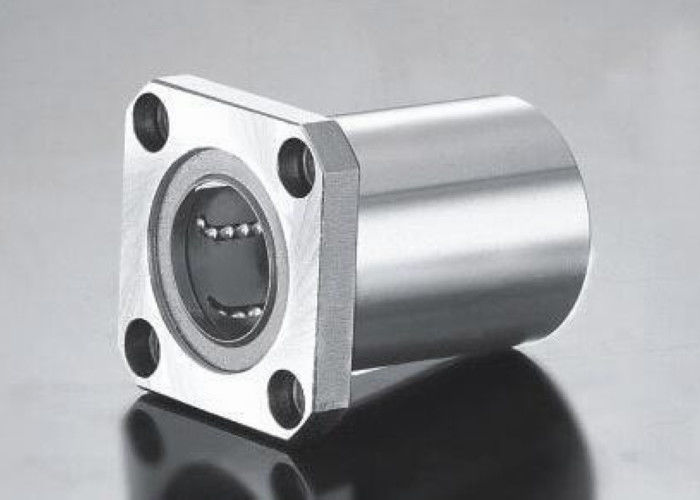

LMK: with square sharped flange
LMT/LMH: with oval flange.

All absolute quality goods, on time delivery, competitive price.
Any questions, welcome to contact us at your convenience.

Bearing Specification :

Model Number	LMF20UU
Part Name	Linear Motion Bearing
Brand	IKO / THK / NSK / SKF / FAG / TIMKE / FSK / OEM
Precision Rating	ABEC-1 to ABEC-9
Vibration and Noise	Z0V0 / Z1V1 / Z2V2 / Z3V3
Material	Gcr15 Chrome Steel
Number of Row	Five Row
Dimensions(mm)(dDb)	20 × 32 × 42mm
Weight / Mass ( KG )	0.18kg
HS Code	8482800000
Original Country Show	JAPAN

Linear Motion Bearings Bearing List:

Bearing No.			Row	Weight	Radial clearance	Basic Loading		Size(mm)
Bearing No.				(g)		Basic Loading		Size(mm)
Round Flange	Squared Flange	Oval Flange				Dynamic	Static	d	D	L	D1
					(μm)	Dynamic	Static
						C(N)	Co(N)
								dr	(mm)	(mm)	(mm)
								(mm)	(mm)	(mm)	(mm)
LMF6UU	LMK6UU	LMH6UU	4	26.5	-5	200	260	6	12	19	28
LMF8SUU	LMK8SUU	-	4	34	-5	170	220	8	15	17	32
LMF8UU	LMK8UU	LMH8UU	4	40	-5	260	400	8	15	24	32
LMF10UU	LMK10UU	LMH10UU	4	78	-5	370	540	10	19	29	40
LMF12UU	LMK12UU	LMH12UU	4	76	-5	410	590	12	21	30	42
LMF13UU	LMK13UU	LMH13UU	4	94	-7	500	770	13	23	32	43
LMF16UU	LMK16UU	LMH16UU	5	134	-7	770	1170	16	28	37	48
LMF20UU	LMK20UU	LMH20UU	5	180	-9	860	1370	20	32	42	54
LMF25UU	LMK25UU	LMH25UU	6	340	-9	980	1560	25	40	59	62
LMF30UU	LMK30UU	LMH30UU	6	460	-9	1560	2740	30	45	64	74
LMF35UU	LMK35UU	-	6	795	-13	1660	3130	35	52	70	82
LMF40UU	LMK40UU	-	6	1054	-13	2150	4010	40	60	80	96
LMF50UU	LMK50UU	-	6	2200	-13	3820	7930	50	80	100	116
LMF60UU	LMK60UU	-	6	2960	-16	4700	9990	60	90	110	134
LMF60UU	LMK60UU	-	6	2960	-16	4700	9990	60	90	110	134
