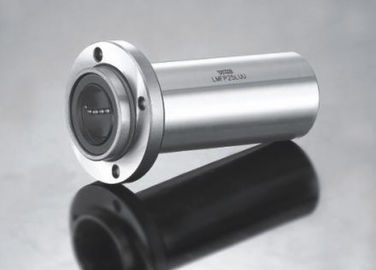

Flanged Linear Motion Bearing-LMEF series
| PART NO. |
NUMBER OF BALL ROWS |
INSCRIBED CIRCLE |
OUTER DIAMETER |
LENGTH |
FLANGE |
HOLE FOR ATTACHMENT |
SQUARENESS |
ECCEN-TIRICITY (MAX.) |
BASIC LOAD RATING |
| dr |
TOLERANCE |
D |
TOLERANCE |
L |
TOLERANCE |
D1 |
K |
H |
|
d1 |
d2 |
h |
|
c(kgf) |
Co(kgf) |
| LMEF5 LMEK5 |
4 |
5 |
0.008 |
12 |
0-0.008 |
22 |
0-0.20 |
28 |
22 |
5 |
20 |
3.5 |
6 |
3.1 |
0.012 |
0.012 |
21 |
27 |
| LMEF8 LMEK8 |
4 |
8 |
16 |
25 |
32 |
25 |
5 |
24 |
3.5 |
6 |
3.1 |
27 |
41 |
| LMEF10 LMEK10 |
4 |
10 |
19 |
0-0.009 |
29 |
40 |
30 |
6 |
29 |
4.5 |
7.5 |
4.1 |
38 |
56 |
| LMEF12 LMEK12 |
4 |
12 |
22 |
32 |
42 |
32 |
6 |
32 |
4.5 |
7.5 |
4.1 |
52 |
80 |
| LMEF16 LMEK16 |
5 |
16 |
+0.009-0.001 |
26 |
36 |
46 |
35 |
6 |
36 |
4.5 |
7.5 |
4.1 |
59 |
91 |
| LMEF20 LMEK20 |
5 |
20 |
32 |
0-0.011 |
45 |
54 |
42 |
8 |
43 |
5.5 |
9 |
5.1 |
0.015 |
0.015 |
88 |
140 |
| LMEF25 LMEK25 |
6 |
25 |
+0.011-0.001 |
40 |
58 |
0-0.30 |
62 |
50 |
8 |
51 |
5.5 |
9 |
5.1 |
100 |
160 |
| LMEF30 LMEK30 |
6 |
30 |
47 |
68 |
76 |
60 |
10 |
62 |
6.6 |
11 |
6.1 |
160 |
280 |
| LMEF40 LMEK40 |
6 |
40 |
+0.013-0.012 |
62 |
0-0.013 |
80 |
98 |
75 |
13 |
80 |
9 |
14 |
8.1 |
0.017 |
0.017 |
220 |
410 |
| LMEF50 LMEK50 |
6 |
50 |
75 |
100 |
112 |
88 |
13 |
94 |
9 |
14 |
8.1 |
390 |
810 |
| LMEF60 LMEK60 |
6 |
60 |
90 |
0-0.015 |
125 |
0-0.40 |
134 |
106 |
18 |
|
